Description
Product Introduction
The GE IS200ECTBG1ABB functions as an Excitation Contact Terminal Board (ECTB) within the GE Speedtronic Mark VI and EX2100 generator excitation control systems. Engineered specifically for redundant excitation system configurations, the board acts as the critical hardware interface for high-priority discrete field contacts—including 52G generator online status and 86G master lockout interlocks.
Controlled directly by an associated EMIO management board and powered via M1/M2 power supplies from the EPSM module, the ECTBG1ABB board provides 70 VDC wetting voltage to six discrete input channels. It handles isolated trip commands and four Form-C auxiliary relay drivers (e.g., 94EX, 30EX) to maintain precise control over generator breaker states and excitation system shutdown paths.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) |
| Part Number | IS200ECTBG1ABB |
| System Lines | Speedtronic Mark VI / EX2100 Excitation Systems |
| Functional Acronym | ECTB (Excitation Contact Terminal Board) |
| Operating Mode | Redundant Mode (Group 1 Architecture) |
| Contact Inputs | 6 Discrete Inputs (including 52G breaker & 86G lockout) |
| Input Wetting Supply | Onboard 70 VDC field loop supply (M1/M2 power rails) |
| Contact Outputs | 2 Trip Contact Outputs + 4 Form-C Relay Outputs |
| Interface Cables | Multi-pin connectors (J405, J408, J418) to triple controllers |
| Primary Manuals | GEI-100457 / GEH-6632 |
Application Scenarios & The “Trench” Experience
During a synchronizing sequence on a large utility generator, a trip circuit alarm triggers because the 52G generator breaker auxiliary contact feedback fluctuates. Diagnostic tracing points to a degraded wetting power rail on the original ECTB terminal card. Engineers isolate power, unseat terminal wiring harnesses, and replace the unit with a bench-verified IS200ECTBG1ABB. Upon powering the M1/M2 supplies, the 70 VDC wetting loop stabilizes, restoring crisp 52G breaker state telemetry to the EMIO controller and allowing generator synchronization to proceed without false trips.
- EX2100 Generator Excitation – Generator Breaker Telemetry – Powers and monitors 52G breaker contacts to confirm generator online status.
- Excitation Lockout Protection – 86G Interlock Processing – Directly feeds master lockout trips to generator field interlocks.
- Auxiliary Relay Control – Form-C Output Switching – Drives 94EX trip and 30EX alarm relay coil outputs under EMIO instruction.

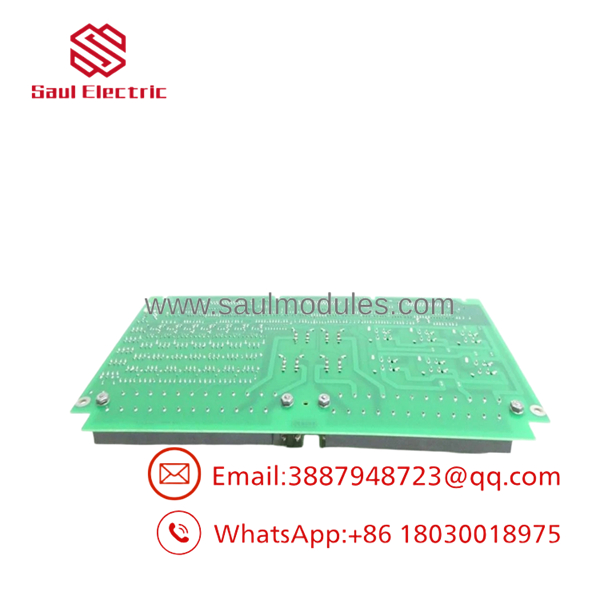

IS200ECTBG1ABB

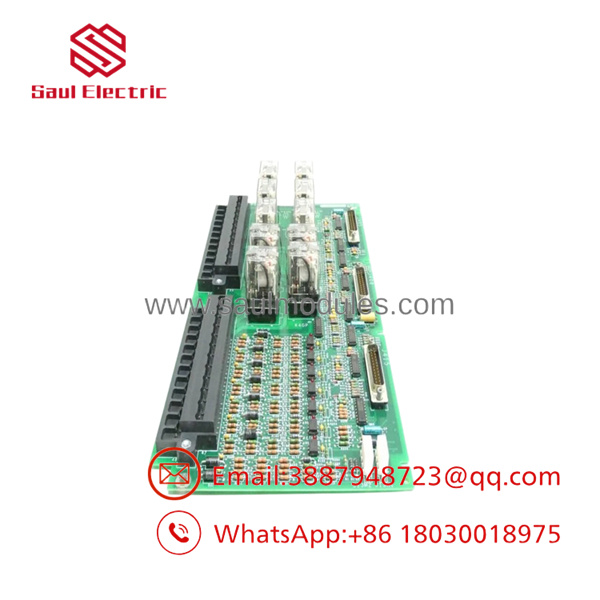

IS200ECTBG1ABB
Transparency SOP: Quality Assurance & Testing
- Visual & Mechanical Inspection: High-magnification check for screw terminal block thread integrity, board trace damage, and header pin alignment.
- 70 VDC Wetting Supply Verification: Bench-testing M1 and M2 power inputs to verify that all 6 discrete input channels deliver regulated 70 VDC wetting voltage.
- Relay & Trip Circuit Pass-Through Audit: Energizing onboard Form-C relay coils and testing contact resistance across trip output stages.
- Triple-Redundant Connector Interfacing: Mating connectors J405, J408, and J418 to a Mark VI simulator to ensure clear signal handshakes across all controller channels.
- Anti-Static ESD Packaging: Enclosed in heavy-duty ESD shielding bags with fresh desiccant packages before protective foam encapsulation.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ DO NOT MIX GROUP 1 AND GROUP 2 ECTB BOARDS: Group 1 (
ECTBG1ABB) is designed strictly for redundant mode operation. Installing a Group 1 board in a simplex setup meant for Group 2 (ECTBG2) will cause EMIO board communication faults and missing input wetting rails. - ❗ DISCONNECT 70 VDC WETTING POWER BEFORE WIRING: The ECTB board generates live 70 VDC wetting voltage across field contact terminals. Accidentally shorting field contact terminals to ground during replacement will blow internal PCB fuses or damage EMIO input channels.
- ⚠️ VERIFY J405/J408/J418 CABLE SEATING: In redundant configurations, ribbon/harness cables link to separate control channels. Ensure all cable latches are fully clicked into place to prevent loose connections from causing false 86G lockout trips.
- ❗ USE FULL ESD SAFETY: Contact interface ICs can be damaged by static discharge. Always wear a grounded ESD wrist strap when handling the board.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the primary function of the IS200ECTBG1ABB board?
A: It is an Excitation Contact Terminal Board used in Mark VI / EX2100 redundant excitation systems to power/monitor contact inputs (52G, 86G) and drive Form-C trip relay outputs.
Q: Which primary control module manages this terminal board?
A: The board is managed by the EMIO control board in conjunction with EPCT, EXTB, and EACF I/O modules.
Q: Does this board provide field wetting voltage?
A: Yes. The IS200ECTBG1ABB provides an onboard 70 VDC supply (fed from M1/M2 power rails) to wet its 6 discrete contact inputs.
Q: Can a Group 1 (G1ABB) board be used in a Simplex EX2100 system?
A: No. Group 1 (ECTBG1) models are built specifically for redundant mode operation. Simplex architectures require Group 2 (ECTBG2) boards.
Q: What warranty is provided with this module?
A: Every unit comes backed by a full 12-month replacement warranty covering input channel reading, 70 VDC supply stability, and relay execution.
