GE IS200EISBH1AAA Mark VI Excitation ISB Bus Board

Description

Product Introduction

The GE IS200EISBH1AAA (EISB) is an Excitation ISB Bus board designed for GE EX2100 generator excitation systems and Speedtronic Mark VI control racks. It serves as the primary high-speed communication link between the central processor modules and the power conversion bridges, transmitting firing commands and real-time feedback data across low-noise optical and electrical buses.

Unlike standard process I/O boards, the EISB card handles deterministic data transfers where sub-microsecond timing accuracy is mandatory for generator field excitation and voltage regulation. By isolating high-speed trigger signals onto dedicated bus pathways, the card prevents noise coupling from the power bridge from interfering with sensitive control logic in the main rack.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Imagine a major steam turbine generator running at full load during high afternoon power demand. Suddenly, an excitation bus trip alarm flashes across the operator console, and the generator’s automatic voltage regulator (AVR) drops to manual backup mode due to a lost fiber-optic handshake between the controller and the thyristor power bridge. Diagnostic logs point directly to an optical transmitter failure on the IS200EISBH1AAA board. The plant is facing a forced derate or total trip if the field excitation collapses completely. Sliding in a pre-tested replacement EISB module, reconnecting the optical channels, and clearing the bus communication alarm restores automatic VAR control within minutes, averting a multi-million-dollar load shedding event.

• Utility Scale Generator Excitation (EX2100) – Manages real-time bridge firing pulse distribution and voltage feedback loops for large synchronous generators. Required due to its high noise immunity and fiber-optic isolation.
• Gas & Steam Turbine Generator Controls – Integrates generator field voltage regulation with the primary Mark VI turbine controller over high-speed serial buses.
• Synchronous Motor Drive Systems – Handles precise field excitation control for high-horsepower industrial synchronous motor starters in mining and petrochemical processing.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE EX2100 and Mark VI test rigs before they ever go near a crate.

1. Inbound & Visual Inspection: Physical inspection under magnification for damaged optical ports, cracked solder joints around high-speed transformers, and backplane connector pin alignment.
2. Cold-Resistance & Power Rail Checks: Insulation and continuity tests across input power supply lines (+5V, ±15V) to ensure no short circuits prior to energized testing.
3. Fiber-Optic & Serial Bus Loopback Testing: Optical power output measured on transmitter ports. Board installed in a live test rack to perform loopback communication tests across all ISB channels.
4. Thermal & Noise Immunity Test: Board operated under full data throughput while subject to thermal sweep testing to verify zero packet drop or timing drift under ambient heat stress.
5. Anti-Static Sealing & Safe Packaging: Cleared of static charge, sealed in a moisture-barrier ESD bag with fresh desiccant, and securely packed in custom foam-lined shipping boxes.

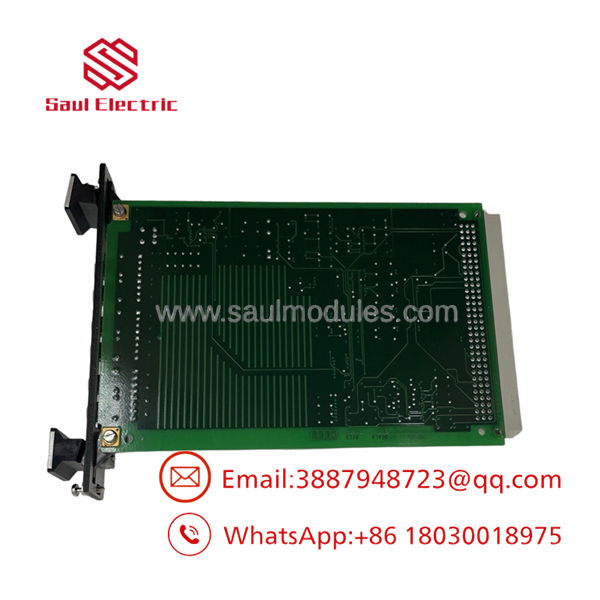

IS200EISBH1AAA

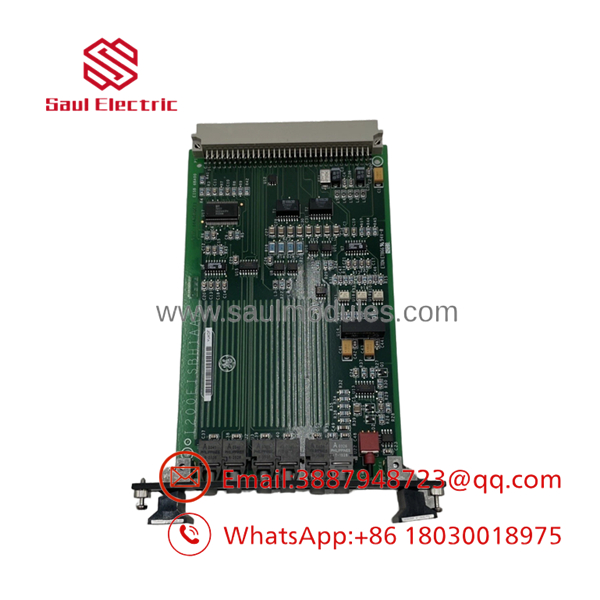

IS200EISBH1AAA

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Handle Optical Fiber Connections with Extreme Care!

  The fiber-optic transceivers on the EISB board are sensitive to dust and bending strain. Always inspect the fiber face with a scope and clean it with optical alcohol wipes before plugging into the EISB ports. Never leave optical sockets uncapped when the board is uninstalled.

• ❗ Match Hardware Revisions (H1AAA Suffix)

  Pay strict attention to the full revision code (H1AAA). Mixing different revision levels on redundant excitation channels (e.g., M1, M2, C channels) can cause slight timing delays in optical frame transmission, leading to “Bus Out of Sync” alarms or unexpected channel failovers.

• ⚠️ Inspect VME Pin Alignment Before Slotting

  Multi-pin DIN connectors on the rear of the card can easily bend if inserted at an angle. Guide the board smoothly down the card tracks and push straight in using the ejector handles simultaneously. Do not apply force if the card stops prematurely.

• ❗ Never Hot-Swap Without Disabling Channel Control

  Pulling the EISB card while its associated excitation channel is active will immediately cut firing commands to the thyristor bridge, triggering a severe over-voltage/under-excitation fault on the generator. Transfer control to the standby channel or isolate the core prior to physical removal.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main purpose of the GE IS200EISBH1AAA board?

A: The EISB board serves as a high-speed communication interface (ISB bus card) between the control processing units and the power switching/firing bridges in GE EX2100 excitation systems and Mark VI turbine controls.

Q: Does the IS200EISBH1AAA require software or parameter loading upon installation?

A: The board functions primarily as a physical-layer hardware interface card. Firmware and configuration parameters are loaded directly from the host CPU core via the system backplane during the boot sequence, so manual field flashing is generally not required.

Q: Are the optical transceivers on the board replaceable individually?

A: The optical transceivers are surface-mounted directly to the circuit board. We recommend replacing the complete board assembly rather than attempting field desoldering, as improper rework can alter high-speed optical timing characteristics.

Q: Is this board compatible with both EX2100 and Mark VI control systems?

A: Yes. The IS200EISBH1AAA is utilized across GE excitation systems as well as specific Speedtronic Mark VI generator control architectures that share the ISB communication topology.

Q: Why purchase Surplus or Refurbished stock over direct OEM ordering?

A: Legacy GE Speedtronic and parts often carry long factory lead times and premium prices. Stocking pre-tested surplus hardware gives you immediate access to drop-in replacement parts, minimizing costly plant outage delays.
