GE IS200HFPAG1AEC High-Frequency AC Fan Power Supply

Description

Product Introduction & Engineering Value

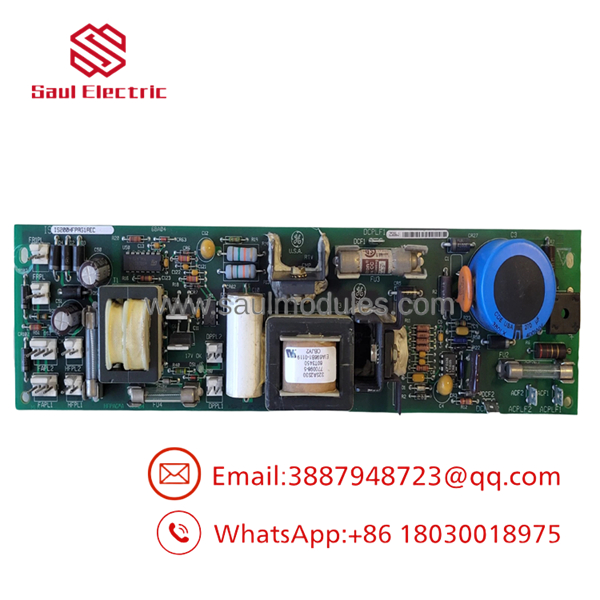

The IS200HFPAG1AEC is a power-conversion board rather than a conventional controller or I/O module. It is used in GE Mark VI turbine-control/drive cabinets and is typically installed near a board rack or fan enclosure. The available GE-board documentation identifies four input stab connectors and eight output plug connectors.

The suffix AEC matters. GE’s Mark VI catalog contains numerous HFPA variants, including G1AAA, G1ABB, G1ACB, G1ADB, G1ADC, G1AEC, and G2A configurations. Treat these as separate procurement items unless the applicable GE documentation establishes interchangeability.

Technical Specifications

The four fuses identified for the G1AEC variant are FU1: 250 V/2.5 A, FU2: 250 V/1.0 A, FU3: 600 V/2.0 A, and FU4: 250 V/4.0 A. The two LEDs are labeled 17 V OK and 48 V OK; the source specifically associates the 17.7 VAC indication with FU4 and the 48 VAC/DC indication with FU1.

The available technical reference also states that this variant can operate with high-voltage DC input in the approximate 230–1000 VDC range. Verify the actual cabinet input configuration before applying power.

Field Application & the “Trench” Experience

A Mark VI turbine cabinet starts showing an intermittent loss of a fan-related supply during operation. The maintenance technician notices that the 48 V OK indication is inconsistent. Instead of immediately replacing the board, the team checks the associated fuse, input connections, fan load, and wiring.

The spare IS200HFPAG1AEC is then compared against the installed unit. The technicians verify the four input connections and eight output connections, inspect the board for thermal damage, and confirm the fuse ratings before controlled startup.

This is exactly where identification discipline pays off. The HFPA family contains multiple configurations, and a visually similar board is not automatically an electrically equivalent replacement.

Specific application scenarios:

• Mark VI turbine cabinet fan power circuits
• High-frequency AC/DC power conversion
• GE turbine drive-cabinet auxiliary power
• Replacement of failed Mark VI HFPA power-supply boards

Transparency SOP: QA & Testing

For IS200HFPAG1AEC, I would release inventory only after the following checks:

1. Part-number verification — Confirm the complete IS200HFPAG1AEC identification.
2. Fuse verification — Check FU1–FU4 against the documented ratings.
3. Visual inspection — Examine the MOV, transformers, heat sinks, capacitors, transistors, connectors, and PCB traces.
4. LED inspection — Verify the condition of the two status LEDs and their associated circuits.
5. Input/output inspection — Check all four stab inputs and eight output plugs for oxidation, looseness, cracking, or mechanical damage.
6. Electrical test — Where suitable Mark VI test equipment is available, verify the applicable input-to-output conversion and output regulation under controlled conditions.
7. Load test — Confirm that the board can supply the intended load without exceeding the documented 90 VA total-output limit.
8. Final documentation — Record actual-unit photographs, test results, condition, and warranty status.

For New Surplus, ask the supplier to confirm that the physical board has never been installed or energized. For Refurbished, request the repair scope and functional test report rather than accepting a generic “tested” statement.

IS200HFPAG1AEC

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t treat every HFPAG1A variant as equivalent.
The Mark VI catalog lists numerous HFPA configurations. The exact G1AEC suffix should be matched before substitution.

⚠️ Trap #2 — A blown fuse may be the symptom, not the cause.
FU1–FU4 protect different portions of the board. If a fuse repeatedly opens after replacement, investigate the associated load and downstream circuitry rather than repeatedly installing fuses.

⚠️ Trap #3 — Check the 17.7 V and 48 V indicators separately.
The board has two green status LEDs. A problem with one output does not necessarily indicate total board failure. The documented LED/fuse relationships can help narrow the initial fault location.

PRO TIP: Photograph the fuse positions and input/output connector arrangement before removing the original board. This is especially useful when the cabinet has multiple similar-looking Mark VI power boards.

Dynamic FAQ

Q: What is the GE IS200HFPAG1AEC?
A: It is a GE Mark VI High-Frequency AC/Fan Power Supply Board, functional acronym HFPA.

Q: What outputs does the board provide?
A: The documented output options include 48 VAC, 48 VDC, and 17.7 VAC, with total output loading specified at no more than 90 VA. The actual output configuration depends on the application.

Q: How many input and output connectors does it have?
A: The board has four stab-on input connectors and eight output plug connectors.

Q: What do the two LEDs indicate?
A: One is labeled 17 V OK and the other 48 V OK. They provide a quick indication of the associated output condition.

Q: Can I replace IS200HFPAG1AEC with another HFPA board?
A: Do not assume interchangeability. Verify the complete part number, revision/configuration, input requirements, output requirements, connector arrangement, and cabinet application.

Q: How do I verify New Surplus or Refurbished authenticity?
A: Request actual-unit photographs and confirmation of unused status for New Surplus. For Refurbished units, request the repair scope, electrical-test procedure/results, serial or traceability information, and written warranty terms.
