Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | GE |
| Model | IS200JPDMG1ACC S1AT005 |
| Series | Mark VIe / Mark VI |
| Product Type | Power distribution module |
| Primary Function | Controlled power distribution for I/O and control boards |
| Protection | Overcurrent and voltage monitoring |
| Diagnostics | Status LEDs and fault indication |
| Application | Gas turbine, steam turbine, and process control cabinets |
| Mounting | Rack or panel mount, system dependent |
| Condition | New Surplus, original OEM inventory |
| Lifecycle Status | Obsolete / EOL |
| Procurement Priority | High for critical turbine and control systems |
Product Introduction & Supply Chain Strategy
GE IS200JPDMG1ACC S1AT005 is a power distribution module used in GE Mark VIe/Mark VI control environments. It supplies regulated and protected power to control and I/O boards, which makes it a high-consequence item in turbine and industrial control cabinets.
Buying it as New Surplus is the right sourcing strategy when the installed base is still operational but the platform is aging. It improves Total Cost of Ownership, reduces lead time variability, and lowers the risk of a stock-out on a module that can take an entire control rack offline.
Installation & Configuration Guide
Stage 1: Pre-Installation
Perform lock-out/tag-out and verify the cabinet is fully safe before any work. Use an ESD strap, insulated tools, and a camera to document wiring, jumper positions, and rack placement. Confirm the exact module suffix and site compatibility before opening the replacement package.
Stage 2: Removal
Power down the cabinet and verify the rails are de-energized. Remove the module straight from the rack without twisting or prying, because bent pins or damaged connectors can create intermittent control failures. Inspect the backplane and adjacent modules for heat damage or contamination.
Stage 3: Installation
Install the replacement module into the same position and seat it evenly. Reconnect all power and control wiring exactly as documented from the removed unit. Restore any dependent settings or cabinet-level configuration before energizing the system.
Stage 4: Power-On & Testing
Apply power and confirm normal LED status and fault-free startup. Verify output power distribution, control-board health, and communication stability across the rack. Run a full functional check before returning the turbine or process cabinet to service.
- IS200JPDMG1ACC S1AT005

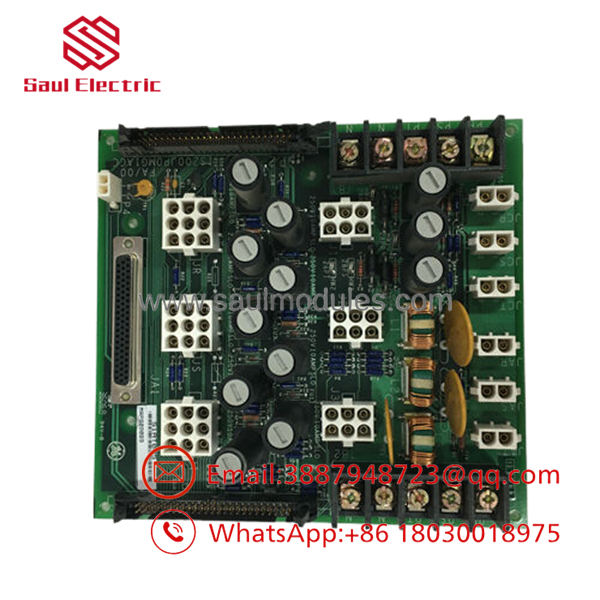

- IS200JPDMG1ACC S1AT005
Firmware/Software Versions & Upgrade Notes
The supplied sources describe this as a Mark VIe-compatible power distribution module, so matching the installed platform baseline matters. Version or revision mismatch can affect cabinet recognition, diagnostics, or board-level behavior.
Do not change firmware or system images during the hardware swap unless the maintenance plan specifically requires it. The safest practice is to preserve the existing configuration and replace only the failed module.
Frequently Asked Questions
Q: Is IS200JPDMG1ACC S1AT005 really New Surplus?
Yes, the correct procurement target is New Surplus original inventory. That gives you OEM-origin hardware without the uncertainty of repaired stock.
Q: Why is it cheaper than factory new but not as cheap as questionable supply?
Because New Surplus comes from excess inventory, not from repair channels. You pay less than list pricing, but you still keep traceability and lower reliability risk.
Q: Is this part obsolete?
Yes, it should be treated as an EOL or at-risk spare. For critical Mark VIe cabinets, keep buffer stock and consider a last-time-buy strategy.
Q: Can I hot-swap it?
Do not assume hot-swap support unless the site documentation explicitly allows it. For a power distribution module, controlled shutdown is the safer maintenance method.
Q: Will programming or configuration be retained?
Not automatically. Always document cabinet wiring, board positions, and any dependent configuration before removal.
Q: What warranty should I expect?
Warranty depends on supplier traceability and condition documentation, but New Surplus generally carries stronger terms than repaired stock. The main procurement value is verifiable serials and QC records.
