GE IS200JPDVG1AAA Mark VIe Replacement Board

Description

Product Introduction & Engineering Value

When a Mark VIe cabinet develops a power-distribution or interface-board fault, the JPDV is one of the components that needs to be identified by the complete assembly number—not simply by the shortened IS200JPDVG1A designation. The full IS200JPDVG1AAA number identifies the specific functional and artwork revision.

The board distributes power to associated control hardware and provides interface functions within the Mark VIe architecture. Documentation also identifies the JPDV as an interface between PIOA I/O hardware and the DLAN+ excitation-control path.

Technical Specifications

The 28 VDC input and 0–60°C temperature rating are reported in technical references for the JPDV assembly. The board is also described as supporting up to two PIOA I/O packs, controllers, an Ethernet switch, and MVRA/MVRF equipment depending on the system configuration.

Revision matters. The three A designations in IS200JPDVG1AAA should not be treated as interchangeable labels. Available documentation specifically notes that the first two functional revisions are backward-compatible, while the artwork revision is a separate consideration. Verify the complete board number against the installed hardware before substitution.

Field Application & the “Trench” Experience

A typical turbine-control replacement is not simply “remove the bad board and install the new one.” Imagine a maintenance crew troubleshooting an intermittent Mark VIe cabinet during a planned turbine outage. The power supply checks correctly, individual I/O packs respond normally, yet downstream equipment is losing stable power distribution. The technician traces the cabinet wiring back to the JPDV assembly and finds that the replacement board must match the existing configuration before the cabinet is returned to service.

That is where IS200JPDVG1AAA identification becomes important. The JPDV can distribute power toward controllers, PIOA I/O packs, the Ethernet switch, and MVRA/MVRF-related equipment, so a board mismatch can affect more than one downstream function.

Niche application scenarios

• Gas turbine excitation-control interface: JPDV used in the power/interface path associated with PIOA and DLAN+ communications.
• Mark VIe turbine controller cabinet: Distribution of power to associated controllers and PIOA I/O packs.
• Legacy Mark V-to-Mark VIe migration work: JPDV hardware involved in an ARCNET-based I/O migration architecture.

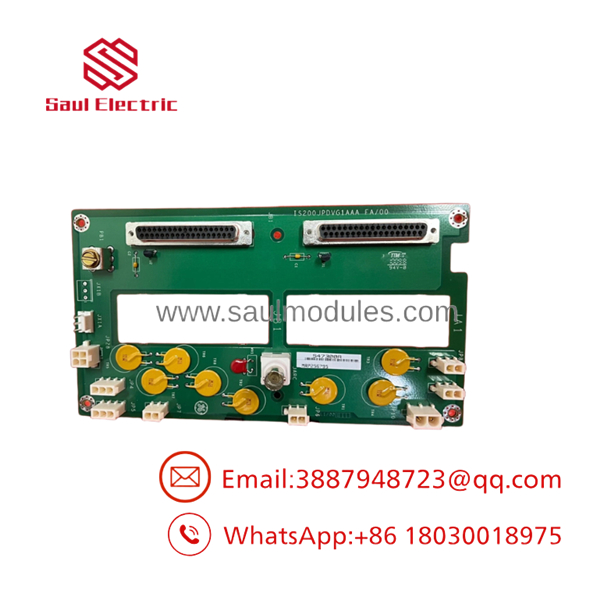

IS200JPDVG1AAA

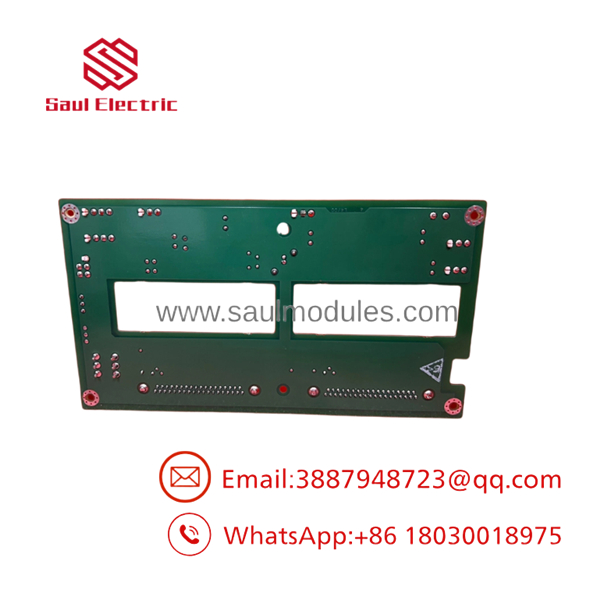

IS200JPDVG1AAA

Transparency SOP: QA & Testing

For New Surplus inventory, the critical issue is not merely whether the PCB looks unused. The part number, revision markings, connectors, board condition, and packaging should all be checked before shipment.

A practical incoming-QA sequence is:

1. Part-number verification — Confirm the complete IS200JPDVG1AAA marking rather than relying on a shortened catalog number.
2. Revision inspection — Verify the functional and artwork revision identifiers.
3. PCB inspection — Check connectors, solder joints, components, contamination, corrosion, and signs of prior installation.
4. ESD-safe handling — Keep the board in appropriate antistatic packaging during inspection and storage.
5. Functional verification — Where test equipment and an appropriate Mark VIe test setup are available, verify power distribution and relevant interface functions before release.

New-surplus status should also be distinguished from refurbished or previously installed stock. A supplier’s condition description and test record should be requested when the board is being purchased for a turbine outage or other time-critical maintenance activity.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Ordering by the shortened number

IS200JPDVG1A and IS200JPDVG1AAA appear closely related, but the complete assembly number carries revision information. Do not approve a substitution solely because the first portion of the part number matches.

⚠️ Trap #2 — Treating the board as a generic power supply

It is not. The JPDV participates in power distribution and system interfacing. Its relationship with PIOA hardware, controllers, MVRA/MVRF equipment, Ethernet switching, and DLAN+ architecture must be considered during replacement.

PRO TIP: Photograph the installed board’s complete identification label before removal. Record every revision suffix. That photograph can prevent an expensive wrong-part shipment months later.

⚠️ Trap #3 — Ignoring ESD handling

A clean-looking turbine-control PCB can still be electrically damaged by poor handling. Use an ESD-controlled work area, antistatic packaging, and edge handling when transferring the board. Suppliers specializing in these boards also identify ESD control as an important handling requirement.

Dynamic FAQ

Is GE a power distribution board?

Yes. The JPDV is identified as a power distribution board/terminal board within the GE Mark VIe architecture. It distributes power to associated control equipment and supports related interface functions.

What voltage does the use?

Available technical references specify 28 VDC input power for the JPDV assembly. Confirm the cabinet power architecture and applicable GE documentation before energizing a replacement.

Is compatible with every IS200JPDVG1A board?

Not automatically. The complete suffix and revision should be checked. In particular, available documentation distinguishes the functional revisions from the artwork revision and warns against assuming all A-rated revisions are interchangeable.

What equipment can the JPDV support?

The JPDV can provide power distribution for MVRA/MVRF hardware, up to two controllers, an Ethernet switch, and up to two PIOA I/O packs, depending on the particular system configuration.

Is New Surplus genuine GE hardware?

“New Surplus” describes the condition, not by itself the authenticity of the component. For procurement, request photographs of the actual board, the complete GE part number, revision markings, packaging evidence, and the supplier’s QA documentation before accepting the part.

What warranty should I expect?

Warranty terms depend on the supplier and condition category. New-surplus, refurbished, used, and repaired boards can carry different coverage periods. The warranty should be confirmed in writing on the quotation or purchase order rather than assumed from the part number.
