Description
Product Introduction
The GE IS200STAIH2ADC serves as a Simplex Analog Input Terminal Board (STAI) within GE Speedtronic Mark VIe turbine control architectures. Designed for mounting on a standard DIN rail or baseplate, it acts as the primary hardware termination point for field analog instrumentation—including pressure transmitters, flow meters, temperature transducers, and valve positioners.
Equipped to mount a single PAIC or BAIC analog I/O pack directly onto its onboard socket, the STAIH2ADC revision conditions 10 analog input channels and 2 analog output driver channels. Built with onboard surge suppression, noise filtering, and 24 V DC field transmitter power supply loops, it ensures clean telemetry transmittal across demanding industrial environments.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) |
| Part Number | IS200STAIH2ADC |
| System Compatibility | Speedtronic Mark VIe Control System |
| Functional Acronym | STAI (Simplex Analog Input Terminal Board) |
| Analog Inputs | 10 channels (4–20 mA current loops or ±10 V DC voltage inputs) |
| Analog Outputs | 2 channels (0–20 mA or 4–20 mA output drivers) |
| Field Transmitter Power | Onboard 24 V DC power distribution with current-limiting protection |
| I/O Pack Connector | 1x DC-37 equivalent connector for PAIC / BAIC I/O pack |
| Terminal Type | Pluggable Euro-style screw terminal blocks |
| Operating Temp | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
During a base-load run on a gas turbine, a fuel gas pressure transmitter signal loses power due to a shorted field cable. The STAI board’s individual current-limiting protection prevents the short from pulling down adjacent 24 V DC loops across other pressure sensors. Technicians replace the damaged cable, clear the field fault, and verify that all 10 analog channels on the IS200STAIH2ADC remain fully operational, avoiding a full turbine trip caused by widespread telemetry failure.
- Gas & Steam Turbine Controls – Pressure and Flow Telemetry – Lands 4–20 mA feedback from fuel gas, lube oil, and steam sensors.
- Closed-Loop Actuator Control – Analog Output Driving – Directs 4–20 mA current outputs to hydraulic electro-hydraulic transducers (EHTs) and positioners.
- Boiler & Balance-of-Plant (BOP) – Transmitter Power – Distributes clean 24 V DC power directly to 2-wire field transmitters.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE Mark VIe test rigs.
- Inbound Visual Inspection: High-magnification audit for terminal block thread damage, trace degradation, clean pin headers, and PCB conformal coating integrity.
- Field Power Rail Verification: Applying DC power to verify that 24 V DC transmitter loops deliver stable output without voltage drops under load.
- Signal Conditioning Injection Test: Injecting 4–20 mA and 0–10 V signals across all 10 input channels to confirm signal conditioning linearity and filter responsiveness.
- I/O Pack Interface Check: Seating a PAIC I/O pack to verify electronic ID (eID) interrogation, power delivery, and signal bus continuity.
- Anti-Static Packaging: Sealed inside thick static-shielding ESD bags with fresh desiccant packages before protective foam encapsulation.

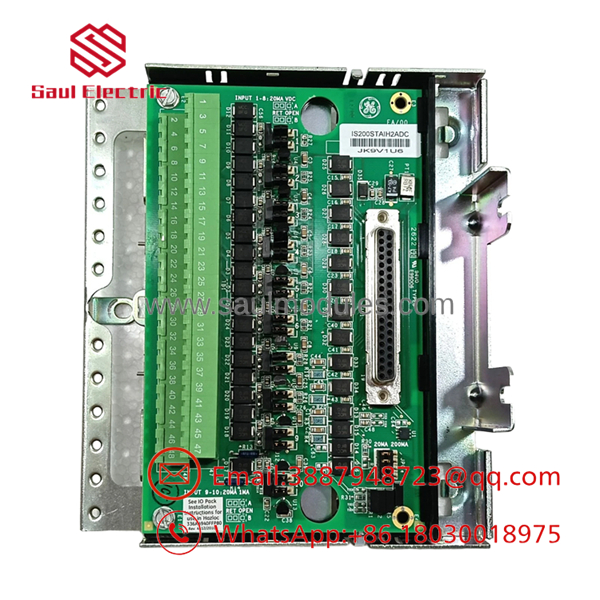

IS200STAIH2ADC

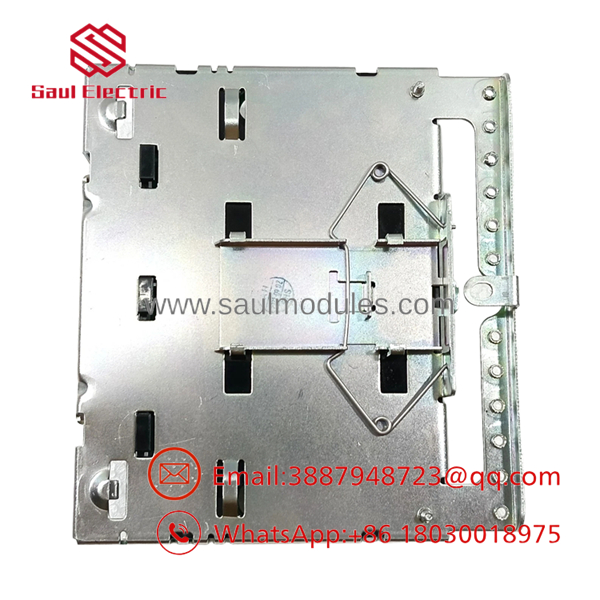

IS200STAIH2ADC
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ DO NOT DISCONNECT TERMINAL BLOCKS UNDER LIVE TRANSMITTER LOOPS: Unplugging terminal blocks under load can cause voltage spikes on sensitive analog-to-digital converter circuits inside connected I/O packs.
- ❗ Verify Jumpers for Voltage vs. Current Inputs: Channels can be configured for either 4–20 mA or 0–10 V inputs via onboard jumpers or software settings (depending on the installed PAIC pack). Ensure jumper settings match the field sensor type.
- ⚠️ Observe Ground Shield Rules: Always connect cable shields to the dedicated ground shield bar adjacent to the terminal blocks. Floating or double-grounded shields induce ground loops that manifest as signal jitter on 4–20 mA lines.
- ❗ Check Revision Suffix (
ADCvsABA): SuffixADCincludes specific hardware artwork enhancements over earlier revisions. While backward compatible in most setups, verify that your Mark VIe software configuration file matches the hardware revision.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the primary function of the IS200STAIH2ADC board?
A: It is a simplex terminal board used in Mark VIe systems to land 10 analog inputs (4–20 mA / V) and 2 analog outputs, providing signal conditioning and field transmitter power.
Q: Which I/O packs connect to this terminal board?
A: The board is designed to interface with Mark VIe analog I/O packs, primarily the PAIC (Analog Input/Output Pack) or BAIC module.
Q: Does this board require onboard firmware programming?
A: No. The STAI is a passive terminal board with signal conditioning hardware. System firmware and A/D conversion are handled entirely by the mounted PAIC/BAIC I/O pack.
Q: Why source replacement Mark VIe terminal boards instead of upgrading the panel?
A: Replacing a faulty terminal board takes under 30 minutes, requires no cabinet re-wiring or engineering redesign, and avoids the heavy downtime of a system retrofit.
Q: What warranty comes with this replacement board?
A: Every unit comes with a full 12-month replacement warranty from the delivery date, covering terminal connection integrity, channel paths, and onboard power distribution.
