GE IS200TFBAH1ACB Terminal Board Mark VI

Description

Product Introduction & Engineering Value

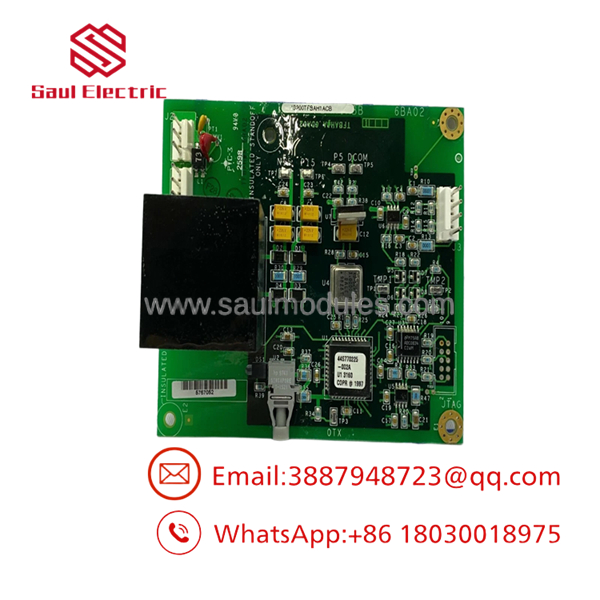

The GE IS200TFBAH1ACB is a TFBA terminal board used within the GE Mark VI control architecture. Terminal boards sit at the boundary between field wiring and control-system electronics, so correct terminal identification and wiring are just as important as the PCB itself.

For maintenance work, this is not a board to replace by appearance alone. Match the complete part number, verify the terminal arrangement against the Mark VI drawings, and document existing field wiring before removing the original unit.

Technical Specifications

Technical caution: Exact terminal assignments, supported signal types, voltage ranges, current ratings, connector pinouts, and I/O channel relationships should be confirmed from the applicable GE Mark VI drawings. Do not infer those values from the TFBA designation alone.

Field Application & the “Trench” Experience

Terminal boards create a very specific maintenance trap: the replacement can be electrically healthy while the installation is still wrong.

A technician arrives during a turbine outage and finds IS200TFBAH1ACB damaged after a field wiring event. A replacement board is available. Before removing the original, the technician photographs every terminal, labels the field conductors, and compares the board against the cabinet drawing. After installation, each circuit is checked point by point before the control system is returned to service.

That approach takes longer at the cabinet. It saves much more time during commissioning.

Niche application scenarios

• Mark VI field termination: connecting field devices and signals to the appropriate Mark VI control circuitry.
• Turbine instrumentation maintenance: replacing a damaged terminal/interface board during a scheduled outage.
• Control cabinet refurbishment: restoring field wiring interfaces without redesigning the surrounding Mark VI architecture.

IS200TFBAH1ACB

Transparency SOP: QA & Testing

For the IS200TFBAH1ACB, QA should emphasize both PCB condition and terminal integrity.

1. Part-number verification — Confirm IS200TFBAH1ACB and revision information.
2. Terminal inspection — Check terminals, connectors, screws, pins, and contact surfaces for damage or overheating.
3. PCB inspection — Examine traces, solder joints, components, mounting points, contamination, and corrosion.
4. Configuration check — Document jumpers, switches, or other configuration hardware if present.
5. Electrical screening — Check continuity and relevant isolation/short conditions using the applicable procedure.
6. Functional verification — Where a suitable Mark VI test setup exists, verify the associated interface circuits.
7. Final documentation — Record board condition, test results, traceability, and warranty.

A terminal board marked “tested” should ideally have documented checks rather than only a visual inspection.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Field wiring is the real risk.
Before removing the original TFBA board, photograph and label every conductor. Never rely solely on memory or terminal position.

⚠️ Trap #2 — Do not assume every TFBA variant has the same terminal assignment.
The complete IS200TFBAH1ACB designation must be matched against the application drawings.

PRO TIP: Compare the replacement board side-by-side with the original before mounting it. Check terminal numbering, connectors, jumpers, board revision, and physical layout.

⚠️ Trap #3 — A wiring error can look like a bad PCB.
If a channel behaves incorrectly after replacement, verify the field wiring and terminal assignment before condemning the new board.

Dynamic FAQ

What is the GE IS200TFBAH1ACB?

The is a GE Mark VI TFBA terminal board used for field termination and signal interfacing within compatible control-system installations.

What is the main purpose of a terminal board?

It provides the physical termination and interface between field wiring and the control-system electronics. The exact circuits handled depend on the Mark VI application and cabinet configuration.

Can another TFBA board replace the IS200TFBAH1ACB?

Not automatically. Verify the complete part number, revision, terminal arrangement, signal requirements, and Mark VI application documentation.

What should I check before removing the original?

Document the field wiring, terminal numbers, connectors, board revision, jumpers, and cabinet location. Photos are strongly recommended.

How do I verify New Surplus authenticity?

Request photographs of the actual board, including the part-number label and terminal area. Ask whether it has ever been installed, repaired, modified, or functionally tested.

What warranty should I expect?

Warranty terms depend on the supplier and stock condition. Confirm warranty duration, DOA coverage, return conditions, and test documentation before purchasing a critical Mark VI spare.
