Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model | IS200TRLYH1BHH |
| Product Type | Relay Output Terminal Board |
| Series | Mark VI / Mark VIe |
| Relay Channels | 12 Form-C Relay Outputs |
| Relay Configuration | 6 configurable, 5 dry-contact, 1 high-current relay |
| Supported Systems | Simplex and TMR |
| Compatible I/O Packs | PDOA / YDOA |
| Mounting | DIN Rail |
| Response Time | Approximately 25 ms ON / OFF |
| Relay Contact Rating | 24 VDC 3 A, 125 VDC 0.6 A, 115/230 VAC 3 A |
| Maximum Inrush Current | 10 A |
| Fault Detection | Coil current monitoring and communication diagnostics |
| Dimensions | 178 × 330 mm (approx.) |
| Weight | Approximately 0.5 kg |
The board incorporates 48 barrier terminals, socketed sealed mechanical relays, MOV suppression, and coil-drive feedback diagnostics to improve reliability in turbine control applications.
Product Introduction
The GE IS200TRLYH1BHH is a Relay Output Terminal Board designed for GE Mark VI and Mark VIe Speedtronic turbine control systems. It provides twelve relay output channels that interface controller commands with field devices such as solenoid valves, contactors, alarms, and auxiliary control circuits.
This terminal board supports both simplex and TMR architectures and works with the PDOA/YDOA I/O Packs through DC-37 connectors. Built-in relay diagnostics, MOV surge suppression, and sealed mechanical relays help maintain reliable switching in demanding power generation environments.

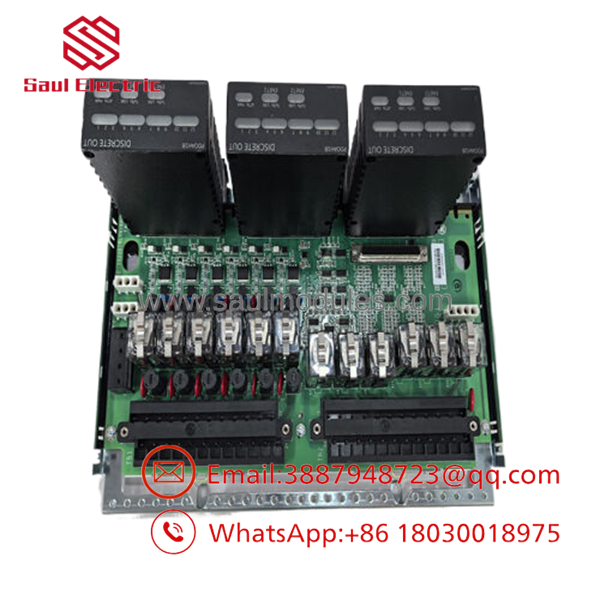

- IS200TRLYH1BHH

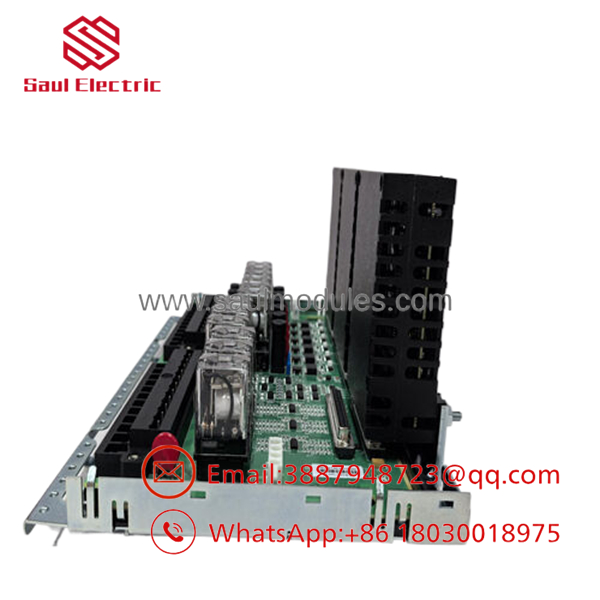

- IS200TRLYH1BHH
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Relay output does not energize | Relay failure or missing control signal | ✅ High | Measure relay coil voltage and verify controller output | Confirm command before replacing board |
| Field solenoid not operating | Missing external power | ✅ High | Measure 24/125 VDC or 115 VAC supply at output terminals | Restore field power first |
| Multiple relay channels fail | PDOA/YDOA communication issue | ⚠️ Medium | Check I/O Pack LEDs and communication diagnostics | Inspect I/O Pack and connectors |
| Controller reports coil fault | Relay coil disagreement | ✅ High | Review Mark VIe diagnostics | Replace faulty relay board if confirmed |
| Intermittent relay operation | Loose terminal wiring | ✅ High | Verify torque on all barrier terminals | Retighten wiring and retest |
| Board not recognized | Connector not fully seated | ⚠️ Medium | Inspect DC-37 connectors and DIN-rail mounting | Reseat board and I/O Pack |
| Relay chatter | Unstable control power | ❌ Low | Monitor supply voltage under load | Check power supply before replacing board |
Field Tip: The TRLY board itself is generally reliable. In practice, many “failed relay board” calls are traced to missing field power, blown branch fuses, or a disconnected PDOA/YDOA I/O Pack. Before replacing the board, verify the controller is issuing the command and confirm voltage is present at the relay output terminals. This approach can save hours of unnecessary downtime.
If troubleshooting reaches a dead end, collect the Mark VIe diagnostic log, relay LED status, and terminal voltage measurements before contacting technical support.
Frequently Asked Questions (FAQ)
Q1. What does the IS200TRLYH1BHH do?
It converts controller output commands into relay contacts for operating field devices such as solenoid valves, annunciators, interposing relays, and other external equipment.
Q2. How many relay outputs are available?
The board provides 12 relay output channels. Six channels can be configured for solenoid drive or dry contacts, five are dedicated dry-contact outputs, and one is a higher-current relay intended for specialized applications.
Q3. Is this board compatible with TMR systems?
Yes. It supports both Simplex and Triple Modular Redundant (TMR) configurations when paired with compatible PDOA or YDOA I/O Packs.
Q4. Can I replace only the relay board without changing the I/O Pack?
Usually yes, provided the hardware revision matches and the associated I/O Pack is functioning correctly. Always verify the complete catalog number and revision suffix before installation.
Q5. Can the board be hot-swapped?
No. Unless GE maintenance documentation specifically permits hot replacement for your configuration, isolate cabinet power before removing or installing the board.
Q6. Why are New Surplus units commonly used?
The IS200TRLYH1BHH is a mature product with limited new OEM production. Many facilities purchase New Surplus inventory because it consists of unused genuine GE parts from excess project stock while remaining more economical than factory procurement.
Q7. What should I verify before installation?
Experienced turbine maintenance engineers recommend checking:
- Complete part number ()
- Hardware revision suffix
- PDOA/YDOA I/O Pack compatibility
- Relay output voltage requirements
- Branch fuse condition
- Terminal torque
- DIN-rail mounting
- ESD precautions during handling
Completing these checks before startup prevents most commissioning issues and reduces unnecessary board replacement.
