Description
Product Introduction
The GE IS200VAICH1CBA (specifically revision VAIC-H1C) is a high-density Analog I/O board designed for GE Speedtronic Mark VI turbine control systems. Engineered for mission-critical power generation and heavy industrial drive applications, it processes incoming sensor readings—such as 4-20 mA loops, thermocouple inputs, and LVDT feedbacks—and handles control signals back to actuators and positioners.
Unlike entry-level I/O cards, the VAIC board offloads signal conditioning, analog-to-digital conversion, and local threshold monitoring directly from the main CPU. This direct processing on the card reduces system latency and keeps loop execution speeds consistent, even when running high-channel-density configurations across crowded VME racks.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| Part Number | IS200VAICH1CBA |
| Revision / Functional Mark | VAIC-H1C |
| System Compatibility | Speedtronic Mark VI Control System |
| Analog Inputs | 20 channels (4-20 mA, ±10V DC configured via terminal block) |
| Analog Outputs | 4 channels (0-20 mA or 4-20 mA configurable) |
| System Interface | VMEbus interface to controller backplane |
| A/D Conversion Resolution | 16-bit resolution |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Power Consumption | Max 15W from VME backplane (+5V DC, ±15V DC rails) |
| Terminal Board Interfacing | Connects to TBAI / TBAH terminal blocks via standard cables |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:15 AM on a humid Tuesday. The main gas turbine at a combined-cycle plant trips out on an emergency overspeed/fuel valve position fault. The control room alarm log points to a erratic 4-20 mA feedback loop on channel 7. You race to the control cabinet, open the rack, and see the diagnostic LEDs on the IS200VAIC board flickering red. An internal analog-to-digital converter multiplexer died, taking down four critical sensor loops simultaneously. The plant is burning tens of thousands of dollars per hour in lost generation revenue. Having a drop-in, pre-tested replacement IS200VAICH1CBA ready on the shelf turns what could be a 36-hour outage into a 20-minute module swap.
- Power Generation (Combined-Cycle Plants) – Interface with hydraulic actuator feedback loops and inlet guide vane (IGV) positioners. Required because sub-millisecond analog response is non-negotiable for turbine stability.
- Oil & Gas Compression Stations – Real-time processing of pressure transducer signals along gas pipelines. Required to maintain high-noise immunity across long field wiring runs.
- Heavy Industrial Cogeneration – Monitoring steam pressure, boiler feed water flow, and temperature parameters. Required to handle mixed-signal loop configurations without installing extra external isolation hardware.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE Mark VI VME test beds before they ever go near a crate.
- Inbound & Physical Inspection: Verification of genuine GE serial tags, conformal coating condition, PCB traces, and backplane pin alignment. Anti-counterfeit checks performed.
- Backplane & Power-On Testing: Board installed into a live Mark VI VME rack. Verification of initial boot sequence, LED states, and voltage rail draw (+5V, +15V, -15V).
- Signal Injection & Calibration Check: Precision 4-20 mA and 0-10V signal generators hooked to input channels. We test all 20 input channels and 4 output channels for linear accuracy and zero drift across a 16-bit conversion spectrum.
- Communication Handshake Test: Verification of VMEbus data exchange with a host controller board (e.g., VCMX/VGEN) without dropping frames or triggering bus faults.
- Final QC & Anti-Static Packaging: Boards are cleared of static charge, sealed in ESD shielding bags with fresh desiccant, and packaged in high-impact foam boxes.

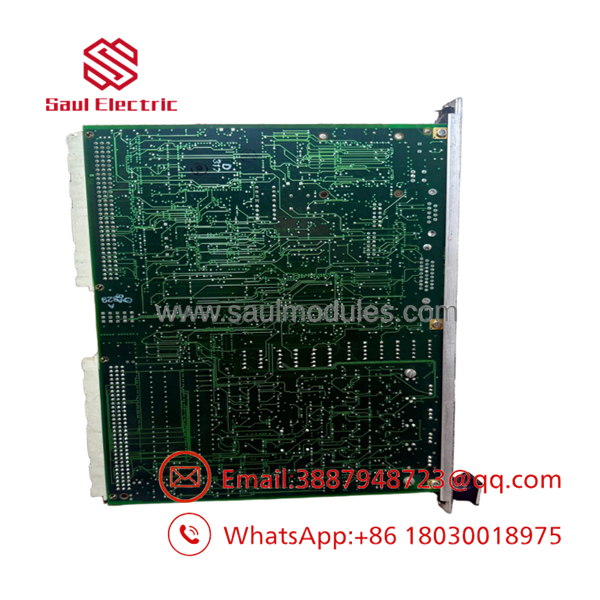

IS200VAICH1CBA

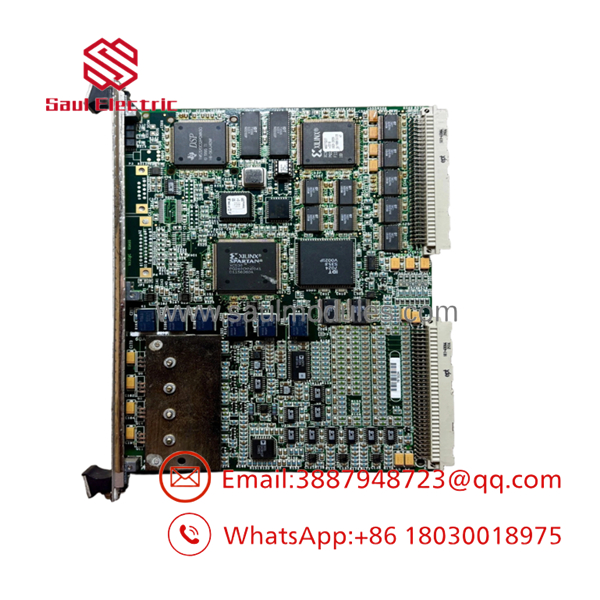

IS200VAICH1CBA
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Watch the Suffix Revisions!
The “CBA” and “VAIC-H1C” revision designators matter immensely. While older revisions like “H1A” might physically fit into the backplane, firmware matching and terminal board jumper settings can differ. Mixing artwork revisions on redundant triplets (R, S, T cores) without checking revision parity will cause voting mismatches.
- ❗ Never Pull Under Power Unless Core Is Inhibited
The Mark VI rack supports online replacement, but only if the specific core is properly offline/inhibited in ControlST / Toolbox. Pulling an IS200VAIC card hot while active loops are tied to a live fuel valve will trip your unit. Shut down power to the rack slot or isolate the core via software first.
- ⚠️ Inspect Backplane DIN Pins Prior to Insertion
VME multi-pin connectors are fragile. If you force the board in at an angle, you will bend a backplane pin. Use the card guide rails, slide it smoothly, and tighten the top and bottom jack-screws evenly. Don’t use a power driver.
- ❗ Check Terminal Block Jumpers
Verify whether your associated terminal board (e.g., TBAHI1A) uses internal or external loop power jumpers. The VAIC card expects specific signal levels; mismatched terminal board jumper configs can burn out the input protection resistors on your brand-new card. Take a photo of the original jumpers before swapping anything.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the GE IS200VAICH1CBA hot-swappable?
A: System-wise, yes, but with a huge caveat. In a redundant Mark VI architecture (RST), you can replace the card in a single core while the other two cores run the plant. However, you must explicitly inhibit the card/core in the maintenance software before pulling it to prevent transient spikes from tripping output loops.
Q: Why purchase New Surplus or Refurbished instead of buying direct from GE?
A: GE has shifted legacy Speedtronic Mark VI components to mature or end-of-life status. Direct OEM lead times can stretch into months, and prices carry massive legacy surcharges. Surplus stock gives you the exact same genuine OEM hardware instantly, saving plant downtime without waiting for production runs.
Q: Do I need to flash firmware to this board before installation?
A: In most cases, the onboard EEPROM holds basic hardware definition parameters, but the main controller downloads operational firmware to the IS200VAIC upon system boot via Toolbox software. Ensure your Toolbox configuration file matches the revision (H1C) you are installing.
Q: How do I know if this unit is genuine GE and not a clone?
A: Every card we sell goes through strict inbound authentication. Genuine boards feature OEM barcoding, clean conformal coating, original GE silkscreening, and distinct solder quality on the surface-mount ICs. Clones or poor reworks are discarded immediately.
Q: What warranty comes with this module?
A: We provide a full 12-month operational warranty from the date of shipment. If the board fails functional testing or experiences hardware faults under normal operating conditions within a year, we replace or repair it immediately.
