GE IS200VGENH1B Generator Control Board Mark VI

Description

Product Introduction & Engineering Value

The GE IS200VGENH1B is a VGEN generator interface board used in the GE Mark VI turbine control platform. Its job is centered on generator electrical feedback, including voltage and current-related measurement signals required by the turbine control system. This makes correct board identification particularly important when troubleshooting generator protection, synchronization, excitation, or electrical-feedback problems.

The VGEN board is not a generic analog input card. Its signal interfaces, terminal connections, board revision, and relationship with the surrounding Mark VI hardware must match the existing control configuration. Before replacement, compare the complete part number and board revision with the installed unit and applicable GE documentation.

Technical Specifications

Engineering note

The exact electrical limits, terminal assignments, CT/PT input characteristics, and applicable calibration requirements should be verified against the GE Mark VI documentation for the specific control-system configuration. Do not substitute generic voltage/current-input specifications from another IS200 board.

Field Application & the “Trench” Experience

A common outage problem looks deceptively simple: generator voltage feedback becomes unstable, the turbine controller reports an electrical measurement fault, and the maintenance team initially suspects the PT/CT wiring. After checking the field wiring and external instrumentation, the fault follows the VGEN signal path back into the Mark VI cabinet.

Replacing the IS200VGENH1B can resolve a failed board-level interface, but only after the technician confirms that the external measurement circuit is healthy. Otherwise, a new board can be installed into a system with an underlying CT/PT, wiring, grounding, or excitation problem.

Specific application scenarios

• Generator terminal-voltage measurement in a Mark VI turbine control cabinet.
• Generator current feedback used by turbine-generator monitoring and control functions.
• Generator synchronization and electrical-control applications where accurate feedback from the generator measurement circuit is required.

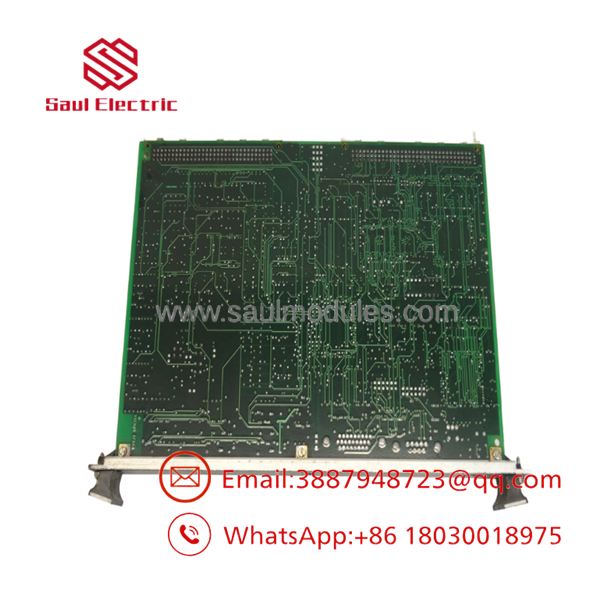

IS200VGENH1B

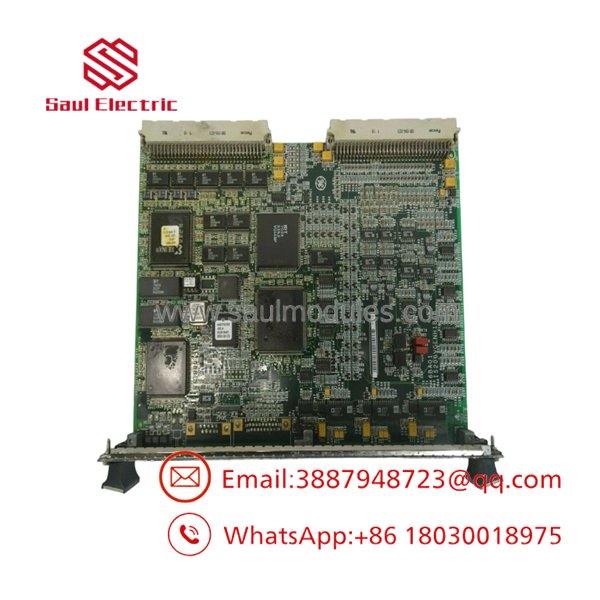

IS200VGENH1B

Transparency SOP: QA & Testing

For New Surplus inventory, a useful QA process should establish both identity and physical condition before the board is released.

1. Part-number verification
   Confirm the complete IS200VGENH1B identification from the actual PCB label or board marking.
2. Revision verification
   Record the H1B revision and compare it against the customer’s installed board.
3. Visual inspection
   Examine connectors, terminal interfaces, PCB surfaces, components, solder joints, and mounting points for evidence of prior installation or storage damage.
4. ESD inspection and handling
   Maintain antistatic handling procedures throughout inspection and packaging.
5. Functional testing
   Where the appropriate Mark VI test equipment is available, verify applicable generator-interface functions rather than relying solely on visual inspection.

Procurement point: “New Surplus” should not automatically be interpreted as “factory fresh.” Ask for actual-board photographs and condition/test documentation before purchasing critical outage inventory.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing the VGEN board with a standard analog input card

The VGEN performs generator-specific interface functions. Treating it like an ordinary analog acquisition module can lead to incorrect troubleshooting assumptions.

⚠️ Trap #2 — Ignoring CT/PT circuits

If generator voltage or current feedback is incorrect, do not immediately condemn the VGEN. Check the associated instrument transformers, wiring, fuses, terminal connections, grounding, and signal integrity first.

PRO TIP: Before removing the existing board, photograph the complete board label and every connected terminal. For legacy Mark VI equipment, those photographs are often more useful during an outage than a generic catalog description.

⚠️ Trap #3 — Revision mismatch

IS200VGENH1B should be matched by the complete assembly number and revision. A visually similar IS200 VGEN-family board is not automatically an acceptable replacement.

Dynamic FAQ

What is the GE IS200VGENH1B used for?

It is a VGEN generator interface board used within GE Mark VI turbine control systems for generator electrical measurement/interface functions.

Is the a PLC I/O module?

No. It is better understood as a generator-specific interface board within the Mark VI turbine control architecture rather than a conventional PLC discrete or analog I/O module.

What should I verify before ordering a replacement?

At minimum, verify the complete part number, board revision, installed Mark VI system configuration, terminal connections, and required generator measurement interfaces. A photograph of the installed board is strongly recommended.

Can an be used as a direct replacement?

It may be suitable when it matches the existing Mark VI configuration and applicable GE documentation, but compatibility should not be determined from the part number alone. Verify the complete hardware revision and system application before installation.

How should New Surplus stock be evaluated?

Request photographs of the actual unit, confirm the full part number and revision, inspect the PCB and connectors, and request available testing or inspection records. New-surplus condition should be clearly distinguished from refurbished or previously installed stock.

What warranty applies to the ?

Warranty coverage depends on the supplier and the condition category. Confirm the exact warranty period and return provisions on the quotation or purchase order before procurement.
