GE IS200VVIBH1CAB Mark VI Vibration Monitor Board

Description

Product Introduction

The GE IS200VVIBH1CAB is a VME-based vibration monitoring board designed for GE Speedtronic Mark VI turbine control systems. Occupying a slot in the main VME control rack, it serves as the central processing module for machinery health and vibration parameters, converting raw analog sensor outputs into real-time engineering units for governing and protective trip logic.

Control room operators and machinery diagnostics specialists rely on the VVIB module to maintain continuous insight into turbine mechanical integrity. Rather than routing sensitive high-frequency vibration signals directly to central controller CPUs, this board employs dedicated onboard Digital Signal Processors (DSPs) to compute overall vibration, 1X/2X vector amplitudes, and position offsets locally, guaranteeing microsecond-level response for over-vibration protection.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 1:30 AM during an intense summer peak, and a 200 MW combined-cycle gas turbine trips unexpectedly on a high “Bearing 2 Radial Vibration” alarm. Physical inspection of the bearing housing shows normal lube oil temperatures and smooth operation, but Channel 3 on the Mark VI panel reports erratic 12-mil vibration spikes. The issue isn’t a mechanical failure—an analog-to-digital converter on an aging VVIB card suffered thermal degradation, introducing false voltage offsets into the signal path. Swapping in a bench-verified IS200VVIBH1CAB board, confirming board revision compatibility, and rebooting the slot clears the false trip signal and allows the turbine to immediately re-sync to the grid.

• Heavy-Duty Gas Turbines – GE Frame 6/7/9 Units – Continuous monitoring of shaft radial position, keyphasor timing, and bearing vibration.
• Large Steam Turbines – Power Generation Racks – High-speed processing of axial displacement, differential expansion, and casing vibration.
• Refinery Mechanical Drives – High-Speed Gas Compressors – Providing critical vibration interlocks and dynamic waveform data for Bently Nevada System 1 integration.

Field Case Study

An offshore oil platform’s main compressor turbine experienced intermittent sensor communication alarms on its seismic vibration loops during high humidity periods. Diagnostics indicated surface leakage on the non-coated original vibration card. We overnighted a fully tested IS200VVIBH1CAB board with the -W02 factory conformal coating option. The site instrument tech replaced the card, verified signal calibration against live proximity probes, and completely resolved the moisture-induced signal tracking errors—preventing an estimated $140,000 in unscheduled production downtime.

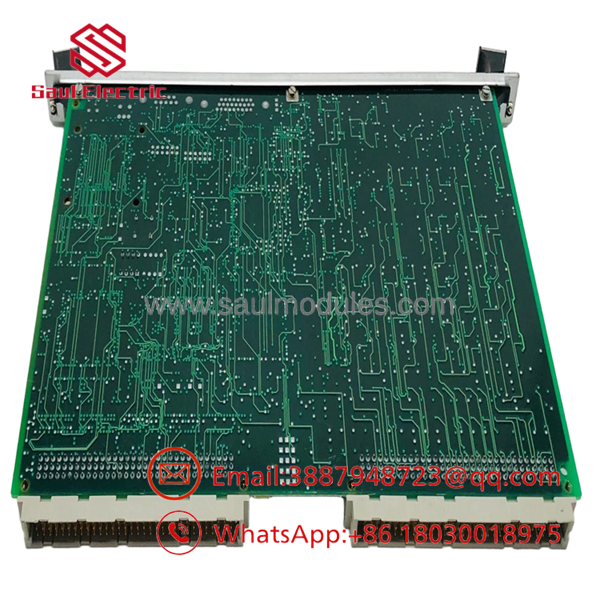

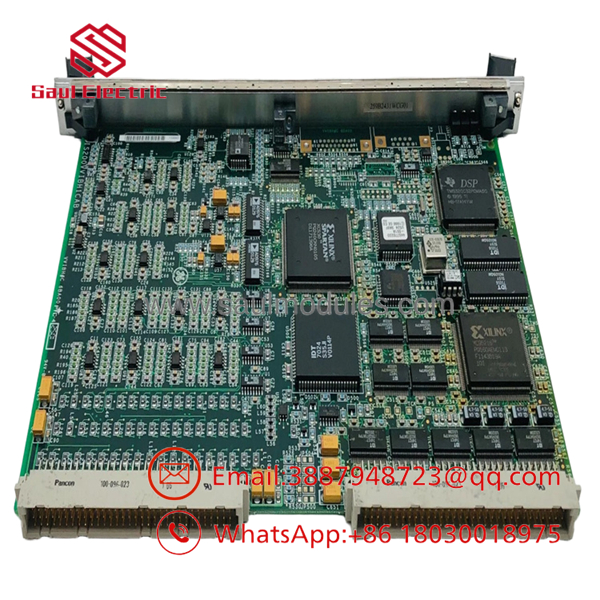

IS200VVIBH1CAB

IS200VVIBH1CAB

Transparency SOP: Quality Assurance & Testing

We test every board on active GE Mark VI VME test racks before shipment. Here is our internal verification process for the IS200VVIBH1CAB:

1. Inbound Visual & Conformal Coating Audit: Inspect VME backplane pins for alignment, check front-panel ejector clips, and verify the -W02 conformal coating layer under UV light for complete coverage without voids or pinholes.
2. Cold Resistance & Power Rail Sweep: Test electrical resistance across +5V, \pm 12V, and \pm 15V power rails to confirm zero short circuits prior to applying rack power.
3. Power-On Self-Test (POST) & VME Bus Handshake: Seat the board into a live Mark VI VME rack chassis to confirm successful POST boot, bus recognition, and processor handshakes.
4. Dynamic Signal Generator Calibration Test: Inject calibrated AC/DC waveform signals (simulating 0–10 mil displacement and 0–5 g acceleration) across all 13 input channels. Verify DSP calculation accuracy for overall amplitude, 1X phase angle, and DC gap voltage.
5. Revision & Conformal Code Audit: Document exact H1CAB -W02 labels on final release documentation.
6. ESD Packaging: Seal inside static-shielding bags with fresh desiccant packs prior to custom foam packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Understand What the -W02 Option Code Means!

The -W02 suffix indicates that the printed circuit board has been factory treated with a specialized moisture and chemical-resistant conformal coating. If your existing cabinet is located in a harsh, marine, or chemical plant environment, do not replace a -W02 board with a standard non-coated variant, as un-coated boards will rapidly degrade due to atmospheric contamination!

❗ 2. Verify Transducer Power Jumper Configurations on Terminal Boards

While the IS200VVIBH1CAB processes the digital signals, transducer excitation power (-24V DC for proximity probes or constant current for accelerometers) is routed via the paired TVIB/DVIB terminal board. Always verify that terminal board jumper settings match your specific sensor type before powering up the VVIB card!

⚠️ 3. Never Pull or Insert a VME Board While Rack Power is Live

Removing or inserting a VVIB card while the Mark VI VME rack is energized will disrupt bus communications, trigger a system fault, and instantly trip connected protection loops. Always perform complete LOTO procedures on rack power before swapping VME modules.

Frequently Asked Questions (FAQ for Conversion)

A: No. Removing a VME vibration board while the system is powered interrupts active protection monitoring, causing an immediate emergency trip or system lock fault. Always de-energize the rack before pulling or plugging the card.

Q: What does the “H1CAB” suffix mean?

A: In GE Mark VI part numbers, H1CAB represents the hardware revision level. H1 designates the high-level functional group, while AB indicates the specific installed printed circuit board and component revision.

Q: Can replace an earlier IS200VVIBH1C or IS200VVIBH1A board?

A: Yes, later revisions like H1CAB are backward-compatible with earlier VVIBH1 revisions in Mark VI VME slots, provided software control block configurations are matched in ToolSpace / ControlST.

Q: Is this unit new or refurbished, and what warranty covers it?

A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.

Q: Why choose New Surplus over OEM factory lead times?

A: Legacy GE Mark VI components have been out of production for years. Sourcing New Surplus from our available inventory eliminates multi-month factory lead times, avoids rush surcharges, and provides an immediate drop-in replacement unit to keep your plant running.
