Description
Product Introduction & Engineering Value
The GE IS200WEMAH1ACA is an IS200-series PCB associated with GE’s Mark VI control architecture. Its WEMA board designation identifies the hardware family, while the complete H1ACA identifier should be retained when sourcing an exact replacement.
This is legacy turbine-control hardware, so compatibility should be established from the complete board number and the actual installation. Check the rack location, connector arrangement, board markings, configuration hardware, and applicable GE documentation before energizing a replacement.
Technical Specifications
- Manufacturer: General Electric
- Part Number: IS200WEMAH1ACA
- Product Family: IS200
- Control Platform: GE Mark VI
- Board Designation: WEMA
- Product Type: Control/interface PCB
- Primary Application: Mark VI control/excitation equipment
- Hardware Generation: Mark VI
- Board Revision: H1A
- Configuration Identifier: CA
- Installation Environment: GE control cabinet/rack
- Replacement Strategy: Exact part-number matching
Technical caution: Publicly available documentation for the exact IS200WEMAH1ACA configuration is limited. Do not infer operating voltage, I/O characteristics, connector pinout, signal ranges, or excitation-control functions from another IS200 WEMA variant. Verify those parameters against the appropriate GE Mark VI drawings and the installed equipment.
Field Application & the “Trench” Experience
A generator maintenance team is preparing to return a Mark VI-controlled excitation system to service. During troubleshooting, an abnormal control signal points toward a PCB-level issue. The stores department has a WEMA board available.
The technician checks the identification.
It is IS200WEMAH1ACA.
Before swapping the board, the team records the original board’s labels, rack position, connectors, configuration hardware, and revision markings. The spare is inspected for storage damage and compared with the removed unit.
The lesson is straightforward: on legacy Mark VI systems, “same family” is not enough. Exact identification comes first.
Specific application scenarios
- Mark VI excitation-system maintenance — replacing suspected WEMA control hardware during a planned outage.
- Generator excitation troubleshooting — investigating abnormal control or interface behavior at PCB level.
- Critical Mark VI spare inventory — maintaining an identified IS200WEMAH1ACA board for rapid replacement.

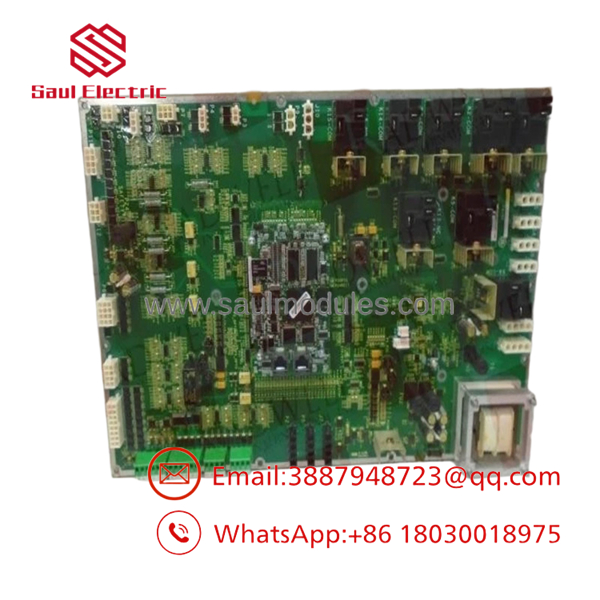

IS200WEMAH1ACA
Transparency SOP: QA & Testing
A supplier should be able to show what was inspected and what was actually tested.
Recommended QA sequence
- Identity verification — confirm
IS200WEMAH1ACAand all visible board markings. - PCB inspection — check for corrosion, contamination, cracked solder joints, damaged traces, and thermal discoloration.
- Connector inspection — examine contacts for oxidation, bent pins, contamination, and mechanical damage.
- Configuration check — record jumpers, switches, labels, modifications, and revision identifiers.
- Component inspection — review visible capacitors, resistors, ICs, semiconductors, and other components.
- Electrical checks — perform appropriate continuity, isolation, and power-path testing.
- Functional verification — where appropriate Mark VI test equipment is available, test the board under controlled conditions.
- Final QC documentation — record test results, repairs, condition, and warranty.
QA warning: “Inspected” and “function-tested” are different claims. The supplier should specify which applies.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying by WEMA designation alone
The WEMA family name is not a sufficient replacement identifier.
PRO TIP: Specify the complete number on the purchase order and inventory record.
⚠️ Trap #2 — Ignoring H1ACA
The suffix should be retained. A different hardware revision or configuration may require engineering verification before substitution.
⚠️ Trap #3 — Treating New Surplus as recently produced
New Surplus generally means unused inventory. It does not establish the manufacturing date. Long-term storage can still affect connectors and electronic components.
⚠️ Trap #4 — ESD and connector damage
Use appropriate ESD controls when handling the board. Do not force rack or cable connectors into position; damaged contacts can create intermittent faults that are difficult to diagnose.
Dynamic FAQ
What is the GE ?
The is a GE IS200-series printed circuit board associated with the Mark VI control architecture and used in control/excitation-related equipment.
What system is it associated with?
It is associated with GE Mark VI turbine and generator control applications. The exact circuit function should be confirmed from the documentation for the specific installation.
Is this a standard PLC I/O module?
No. It is specialized Mark VI control/interface hardware rather than a conventional PLC analog or discrete I/O module.
Can another IS200 WEMA board replace it?
Not automatically. Verify the complete part number, revision, configuration, rack location, connector arrangement, and applicable GE engineering documentation.
What information should I provide when sourcing this board?
Provide exactly as marked, along with clear photographs, visible revision identifiers, rack/cabinet information, and any relevant GE Mark VI drawings.
What does New Surplus mean?
New Surplus generally means unused inventory outside the manufacturer’s current production or normal distribution channel. It does not necessarily mean recently manufactured.
What does Refurbished mean?
Refurbished generally refers to previously used or returned hardware that has been inspected and may have been repaired and tested. The supplier should disclose the actual work performed.
Should New Surplus stock be tested?
Yes. Long-term storage can affect electronic components and connectors. Inspection and appropriate functional testing are advisable before installing a board in a critical Mark VI control system.
What warranty should I request?
Confirm the warranty duration, covered failures, return process, and exact stock condition. New Surplus, Refurbished, and Repaired boards should have clearly defined terms. A third-party warranty should not be described as a GE factory warranty unless that status is documented.
