GE IS210AEPSG1B Speedtronic Mark VI / Mark VIe AEPS Power Supply Board

Description

Product Introduction

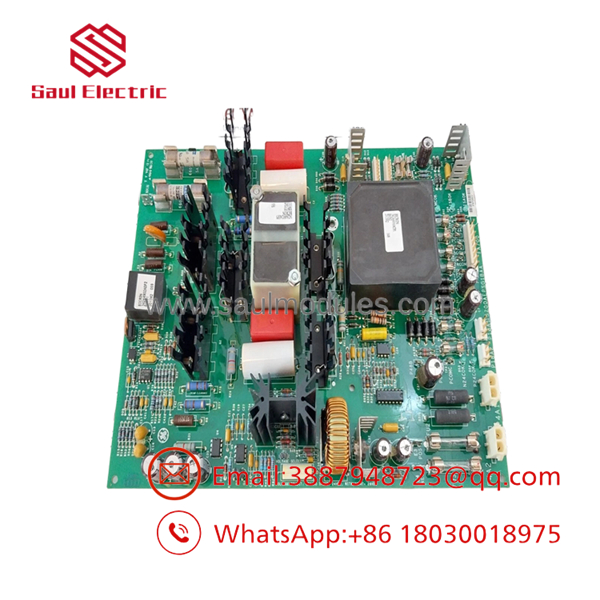

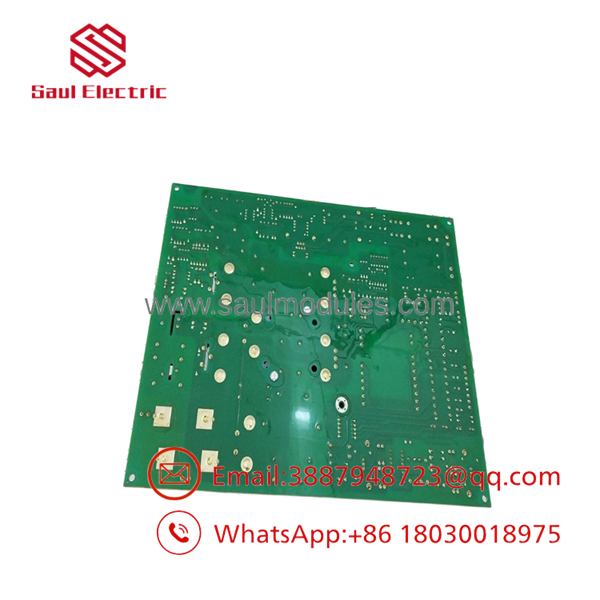

The GE IS210AEPSG1B is an Auxiliary Electronic Power Supply (AEPS) printed circuit board manufactured by General Electric for Speedtronic Mark VI and Mark VIe turbine control racks and industrial drive enclosures. Operating as an internal power distribution engine, the AEPSG1B converts raw incoming bus power into tightly regulated, low-noise DC voltage levels needed to drive internal processing logic, I/O packs, and communication sub-modules.

Equipped with onboard transformer coupling, power filtering inductors, and thermal heatsinks, the AEPSG1B prevents line transients, voltage sags, and high-frequency noise from reaching sensitive rack electronics. The Group 1B (G1B) revision incorporates hardware-level protection including fast-acting fuses and overvoltage suppression to ensure reliable operation in heavy industrial environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

During a stormy summer shift, a 125VDC station battery bank experiences a sudden line surge caused by a nearby lightning strike. Downstream in the Mark VI rack, the IS210AEPSG1B board takes the brunt of the voltage spike. The onboard MOV suppressors clamp the transient, blowing the protective line fuse on the AEPS board and safely isolating the downstream VME processor cards. Because the board absorbed the hit, no processor memory or field I/O packs were destroyed. Replacing the AEPSG1B card restored the power supply rails immediately without losing system configuration or requiring software reloading.

Industrial Applications

• Gas & Steam Turbine Control Cabinets: Delivering clean auxiliary power rails to Mark VI / Mark VIe processor racks and interface blocks.
• Combined-Cycle Power Generation: Supporting power distribution in Triple Modular Redundant (TMR) control architectures.
• Industrial VFD Drive Enclosures: Supplying low-voltage control power to GE Innovation Series drive control cages.

Transparency SOP: Quality Assurance & Testing

Every pre-owned or refurbished AEPS module undergoes rigorous static and dynamic verification before dispatch:

1. Inbound Visual & Thermal Audit: Microscopic inspection of high-stress zones, including transformer windings, power MOSFETs, filter capacitors, and trace paths for thermal degradation or delamination.
2. Capacitor & ESR Analysis: Measuring Equivalent Series Resistance (ESR) on all electrolytic smoothing capacitors to guarantee long-term ripple filtering and output stability.
3. Ultrasonic Cleaning: Removing airborne carbon dust, grease, and industrial particulate to prevent trace leakage or premature flashover.
4. Full-Load Power Burn-In: Bench-testing the card under maximum rated current load across all DC output channels for 24+ continuous hours to verify thermal dissipation and voltage stability.
5. Overcurrent & Short-Circuit Test: Testing onboard protection circuits to confirm immediate cutout under shorted output conditions.
6. ESD Packaging: Sealed in static-shielding moisture-barrier bags with individual test certification records.

IS210AEPSG1B

IS210AEPSG1B

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Fuse Sizing Parity

The AEPSG1B uses specific fast-acting glass fuses for input and output protection. Replacing blown fuses with generic “slow-blow” or incorrect amperage fuses voids downstream circuit protection and risks damaging main rack components during subsequent power surges.

Fix: Always verify and match the exact voltage and amperage rating stamped next to the PCB fuse holders (FU1, FU2, etc.) before powering on the cabinet.

❗ 2. Heat Dissipation Clearance

Power supply boards generate localized heat through onboard power transistors and heatsinks. Stacking wiring harnesses too close to the AEPS heatsinks blocks natural convection airflow, leading to premature thermal shutdown or capacitor drying.

Fix: Ensure field wiring bundles are dressed neatly away from the board surface, maintaining a clear vertical air path through the rack cage.

⚠️ 3. Revision Matching (G1A vs G1B)

While G1A and G1B belong to the same AEPS family, minor circuit revisions and power rating adjustments may exist between functional groups.

Fix: Check your cabinet documentation and match the complete part number (IS210AEPSG1B) to guarantee exact connector pinout and voltage rating parity.

Frequently Asked Questions (FAQ)

Q: Does the IS210AEPSG1B require firmware programming or parameter configuration?

A: No. The AEPSG1B is a purely hardware-based power supply card. It contains no microprocessor firmware and functions immediately upon correct installation and wiring connection.

Q: What are the primary signs that an AEPS board is failing?

A: Intermittent rack processor resets, “Aux Power Supply Low” alarms in ToolTalk/ControlST, blown input fuses, or visible discoloration near onboard heatsinks and filter capacitors.

Q: Can I replace a G1A group board with a G1B?

A: In most Speedtronic Mark VI applications, G1B acts as a backward-compatible revision to G1A. However, always cross-reference the cabinet wiring schematic to confirm matching terminal assignment and power requirements.

Q: What is the difference between IS200 and IS210 board designations?

A: IS200 boards are generally standard plug-in circuit cards or VME modules, while IS210 designations frequently denote sub-assemblies, baseboards, or specialized power supply components within the GE Speedtronic family.

Q: What warranty coverage applies to refurbished IS210AEPSG1B inventory?

A: Refurbished and tested surplus IS210AEPSG1B boards typically include a 12-month full-replacement warranty.
