GE IS210BPPBH2BMD Mark VI PCB Board

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The GE IS210BPPBH2BMD is a Mark VI printed circuit board used as an auxiliary control board in turbine management systems. It belongs in environments where cabinet-level signal handling, board reliability, and stable integration with the larger control architecture matter.

Buying this as New Surplus is a practical Total Cost of Ownership (TCO) decision for legacy installed bases. It helps avoid lead time variability, supports last-time-buy planning, and reduces the risk of forced downtime when older GE Mark VI assets still need exact-match replacements.

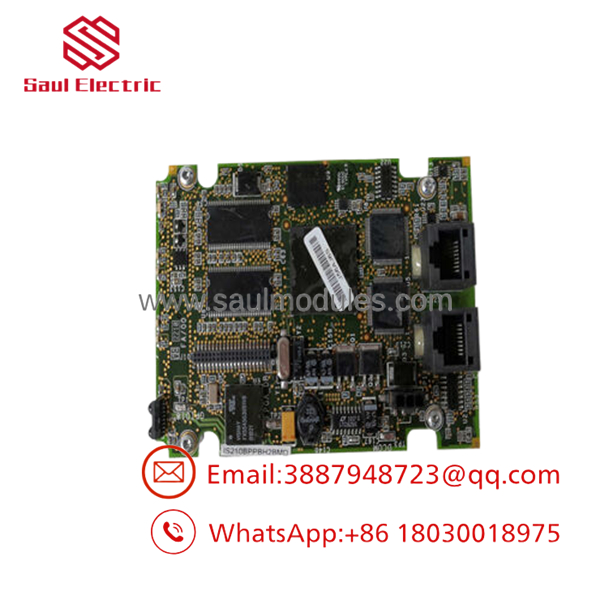

IS210BPPBH2BMD

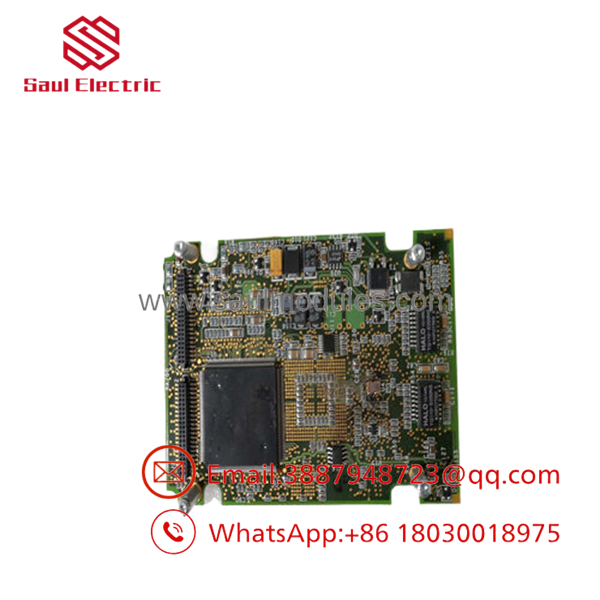

IS210BPPBH2BMD

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Apply lock-out/tag-out and confirm the cabinet is de-energized.
2. Wear an ESD wrist strap and use insulated tools.
3. Photograph the board, connectors, standoffs, and all cable positions before removal.
4. Verify the exact part number and revision against the installed unit.

Stage 2: Removal

1. Shut down the system according to the approved turbine-control procedure.
2. Label every wire and connector before disconnecting it.
3. Remove the board evenly and pull it straight to avoid bending pins or damaging sockets.
4. Inspect the mounting points, plugs, and surrounding components for heat, corrosion, or cracks.

Stage 3: Installation

1. Match the replacement board to the recorded original configuration.
2. Reinstall all standoffs and fasteners in the same positions.
3. Reconnect every plug exactly as documented.
4. Confirm the board is fully seated and mechanically secure.

Stage 4: Power-On & Testing

1. Check the 24 V rails and related supply circuits for shorts before energizing.
2. Power up and verify normal board status.
3. Confirm communication and control behavior inside the Mark VI system.
4. Run a controlled functional test before returning the equipment to service.

Firmware/Software Versions & Upgrade Notes

This board should be installed against the existing Mark VI software baseline already proven at the site. Since it is part of a tightly integrated turbine control platform, version mismatches can create communication or logic issues.

Avoid firmware upgrades or downgrades during replacement unless you already have documented compatibility data and rollback coverage. For legacy turbine hardware, the safest approach is a like-for-like swap with the installed configuration preserved.

Frequently Asked Questions

Q: Is this part really New Surplus?
A: It should be sold as New Surplus / Original New, not refurbished. That means secured legacy inventory with traceability, not a repaired board.

Q: Why is it cheaper than OEM new but not as cheap as refurb stock?
A: New Surplus usually comes from excess inventory or project closeout channels. That lowers price versus OEM list while keeping a much stronger reliability profile than uncertain-condition parts.

Q: Is IS210BPPBH2BMD obsolete?
A: Yes, treat it as a legacy Mark VI spare with obsolescence risk. Critical sites should keep buffer stock and plan for last-time-buy coverage.

Q: Can it be hot-swapped?
A: Do not assume hot-swap is safe. Turbine control boards should be handled under a controlled outage unless the site procedure explicitly allows otherwise.

Q: Will my settings transfer automatically?
A: No. Record the existing wiring, board position, and control behavior before replacement. The new board should mirror the original setup exactly.

Q: What warranty terms are typical?
A: New Surplus industrial parts often carry vendor-backed warranty coverage, but the exact term depends on the supplier. Confirm warranty length, return policy, and serial traceability before purchase.
