GE IS220PDOAH1A Mark VIe Discrete Output Pack

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

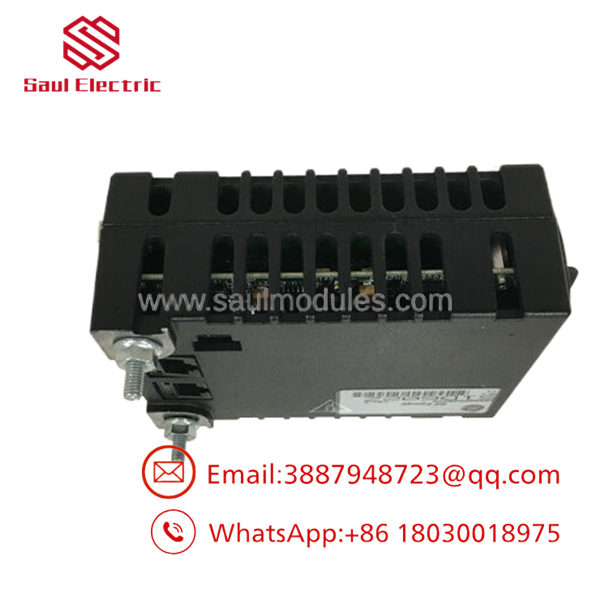

The GE IS220PDOAH1A is a Mark VIe discrete output pack used to drive output actions in turbine control systems. It interfaces the controller with a discrete output terminal board, making it a key part of command execution for protection, sequencing, and auxiliary control.

Buying this as New Surplus is a sensible TCO decision for legacy turbine assets. It reduces stock-out risk, protects uptime, and avoids the hidden cost of uncertain-condition replacements when lead time variability and obsolescence pressure are both high.

IS220PDOAH1A

IS220PDOAH1A

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Apply lock-out/tag-out and confirm the cabinet is de-energized.
2. Wear an ESD wrist strap and use insulated hand tools.
3. Photograph the pack, terminal board, cable routing, and any configuration labels before removal.
4. Verify the exact part number and revision against the installed hardware.

Stage 2: Removal

1. Shut down the system using the approved turbine-control procedure.
2. Label every connector before disconnecting it.
3. Remove the pack evenly to avoid damaging sockets or board-edge contacts.
4. Inspect mating connectors and terminals for heat, corrosion, or bent pins.

Stage 3: Installation

1. Match the replacement pack to the documented original configuration.
2. Reconnect every cable exactly as recorded.
3. Seat the unit fully and secure all fasteners.
4. Confirm the correct terminal board pairing before energizing.

Stage 4: Power-On & Testing

1. Check the 24 V supply and related rails for shorts before power-up.
2. Power up and verify normal LED status.
3. Confirm Ethernet link activity and controller recognition.
4. Validate output response with a controlled functional test.

Firmware/Software Versions & Upgrade Notes

This module should be matched to the existing Mark VIe baseline already proven at the site. Because it is part of an integrated control architecture, a version mismatch can cause communications faults, output mapping errors, or startup issues.

Avoid firmware upgrades or downgrades during a hardware swap unless you already have compatibility data and rollback coverage. For legacy turbine controls, the safest approach is a like-for-like replacement with the proven configuration preserved.

Frequently Asked Questions

Q: Is this part really New Surplus?
A: It should be sold as New Surplus / Original New, not refurbished. That means secured legacy inventory with traceability, not a repair-cycle unit.

Q: Why is it cheaper than OEM new but not as cheap as refurb stock?
A: New Surplus usually comes from excess inventory or project closeout channels. That lowers price versus OEM list while keeping a much stronger reliability profile than uncertain-condition parts.

Q: Is IS220PDOAH1A obsolete?
A: Yes, treat it as a legacy Mark VIe spare with obsolescence risk. Critical sites should keep buffer stock and plan for last-time-buy coverage.

Q: Can it be hot-swapped?
A: Do not assume hot-swap is safe. Output packs should be handled under a controlled outage unless the site procedure explicitly allows otherwise.

Q: Will my settings transfer automatically?
A: No. Record the existing wiring, terminal board, and controller configuration before replacement. The new pack should mirror the original setup exactly.

Q: What warranty terms are typical?
A: New Surplus industrial parts often carry vendor-backed warranty coverage, but the exact term depends on the supplier. Confirm warranty length, return policy, and serial traceability before purchase.
