GE MMLG01 Test Block

Description

Product Introduction

The GE GEC Alsthom MMLG01 is a 14-way test block designed for protective relay switchgear panels built on the MIDOS modular system architecture. Mounted adjacent to primary protection relays, the MMLG01 provides field engineers with safe, accessible test points for secondary current and voltage injection, secondary isolation, and system calibration.

Unlike generic terminal strips that require lifting wires and risking open-circuit current transformers, the MMLG01 incorporates automatic internal short-circuiting contacts for CT loops. When paired with an MMLB test plug, inserting the test harness automatically shorts the current transformer secondaries before opening the relay circuit. This mechanism eliminates dangerous inductive arcs, keeping field technicians safe and protecting downstream protection circuits during routine maintenance.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:30 AM during a planned substation maintenance window. You need to verify the trip curve on a feeder protection relay before bringing a 33kV busbar back online. The panel wires are stiff, aged, and tightly laced. If you manually disconnect a current transformer wire to hook up your injection set and accidentally leave the CT secondary open, you’ll flashover the terminal strip and blow the relay front end the moment load current returns. The MMLG01 solves this hazard completely. Sliding the MMLB multi-finger test key into the MMLG01 test block instantly shorts the upstream CTs and routes the secondary terminals straight to your test set—no screwdrivers, no lifted leads, and zero risk of high-voltage inductive spikes.

• Transmission & Distribution Substation Panels: Interfacing secondary injection test sets directly to feeder, transformer, and busbar protection relays.
• Power Plant Switchgear: Sits alongside generator protection packages to allow annual trip testing without disrupting main generator control wiring.
• Heavy Industrial Facilities: Sits on main medium-voltage entrance breakers in steel mills and chemical plants for rapid relay calibration during brief plant outages.

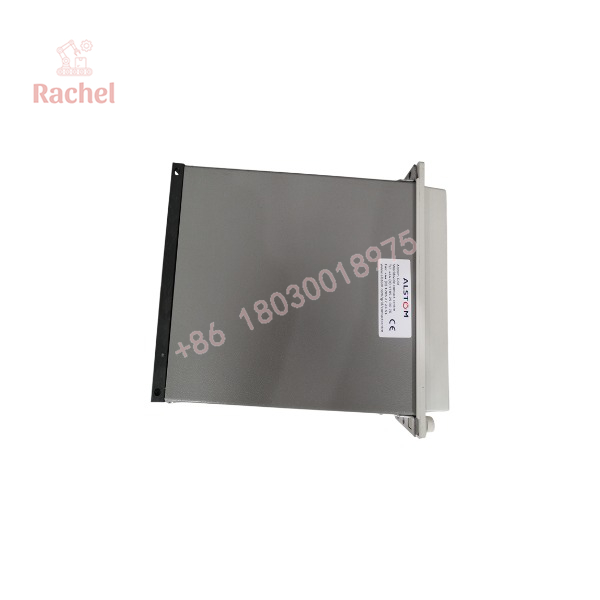

MMLG01

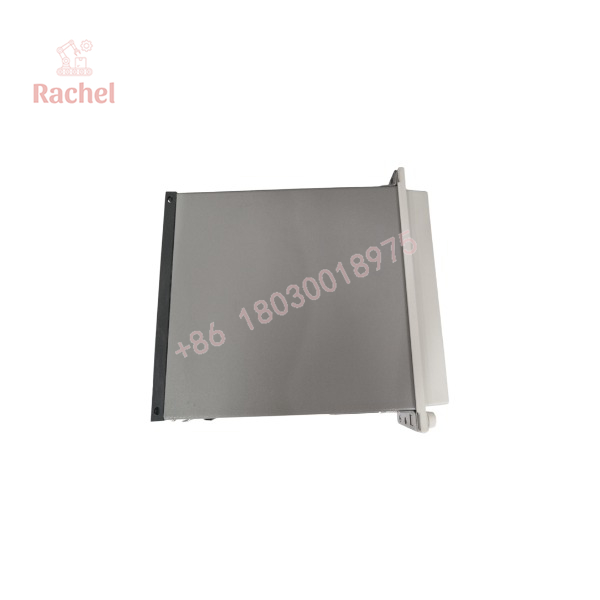

MMLG01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual MIDOS test racks.

1. Inbound Inspection: Mechanical audit of plastic housing, clear front cover retention clips, terminal screw threads, and internal contact finger alignment.
2. Contact Resistance Testing: Micro-ohm meter checks across all 14 closed contact paths to ensure low-resistance signal pass-through.
3. Automatic CT Short-Circuit Test: Mechanical insertion of an MMLB key to verify that current pairs short-circuit prior to contact separation.
4. Dielectric Withstand Check: 2kV flash testing between adjacent terminal pairs and frame ground to ensure complete insulation integrity.
5. Final QC & Anti-Static Packaging: Fitting protective cover thumbscrews, applying serial-tracked QC labels, and sealing the unit in protective ESD bubble wrap.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Never pull the plastic front cover without checking trip ties. The orange or clear plastic front cover on the MMLG01 includes internal shorting pins or trip-isolation bars depending on the scheme layout. Removing the cover without placing the breaker trip circuit in bypass can drop a live circuit breaker.

❗ Watch out for worn MMLB test plug fingers. If your test plug fingers are bent or oxidized, inserting the plug into the MMLG01 can cause intermittent CT shorting. Inspect the test plug contacts before plugging into a live test block.

⚠️ Verify terminal numbering orientation. MIDOS cases use specific odd/even contact layouts (terminals 1 through 14 split across upper and lower rows). Double-check your wire markers against the side label diagram to avoid wiring a voltage channel into an automatic CT shorting pair.

❗ Keep the cover screws snug. Loose cover screws allow ambient dust and corrosive gases to enter the contact chamber, accelerating contact oxidation and causing millivolt drops on sensitive analog metering circuits.

Frequently Asked Questions (FAQ for Conversion)

Q: Does inserting an MMLB test plug into the MMLG01 automatically short current transformers?

A: Yes. The internal spring contacts are mechanically arranged so that inserting the test plug short-circuits the incoming CT secondary leads before isolating the relay side contacts.

Q: Can I use individual single-pole test leads instead of the 14-way MMLB key?

A: Yes. The MMLG01 accepts individual single-finger test plugs (such as the MMLB 02/03 series) for isolating specific signal poles without plugging into all 14 channels simultaneously.

Q: Is the MMLG01 interchangeable across GEC Alsthom, AREVA, and GE units?

A: Yes. The MMLG01 design remained standard across brand transitions from GEC Alsthom to AREVA, Alstom Grid, and GE Grid Solutions. The physical and electrical footprint is identical.

Q: Does replacing an MMLG01 test block require rewiring the panel?

A: No. If replacing an existing MMLG01 module in a standard Size 2 MIDOS rack case, it mounts directly into the panel cutout using standard rear terminal screw terminations.

Q: What warranty coverage do you provide on this test block?

A: All our new surplus and reconditioned MMLG01 units are backed by a full 12-month operational replacement warranty.
