GE V7768-320000 3509301007768-320000B VME Single-Board Computer

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The GE V7768-320000 3509301007768-320000B is a VMEbus single-board computer used in industrial control and embedded automation systems. It serves as a high-reliability processing platform for legacy GE Fanuc and Marquip-style installations that still depend on VME architecture.

Buying this as New Surplus is a smart TCO move for aging platforms. It reduces stock-out risk, shortens recovery time, and helps avoid expensive emergency sourcing when lead time variability and obsolescence pressure make exact-match replacements hard to find.

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Apply lock-out/tag-out and confirm the system is de-energized.
2. Use an ESD wrist strap and insulated tools.
3. Photograph the board, connectors, jumpers, and cabling before removal.
4. Record BIOS, boot device, and operating system settings if the board is part of a live system.

Stage 2: Removal

1. Shut down the host system using the approved sequence.
2. Label every cable and module position before disconnecting it.
3. Remove the board straight out to avoid bending VME connector pins.
4. Inspect the backplane, card guides, and I/O connectors for damage or contamination.

Stage 3: Installation

1. Match the replacement board to the recorded original configuration.
2. Reinstall any PMC or mezzanine options if present.
3. Seat the board evenly into the VME backplane and secure it.
4. Reconnect all cables exactly as documented.

Stage 4: Power-On & Testing

1. Check the supply rails for shorts before energizing.
2. Power up and verify POST, boot media, and display or network output.
3. Confirm Ethernet, serial, and storage interfaces are functioning.
4. Run the application or image test before returning the system to service.

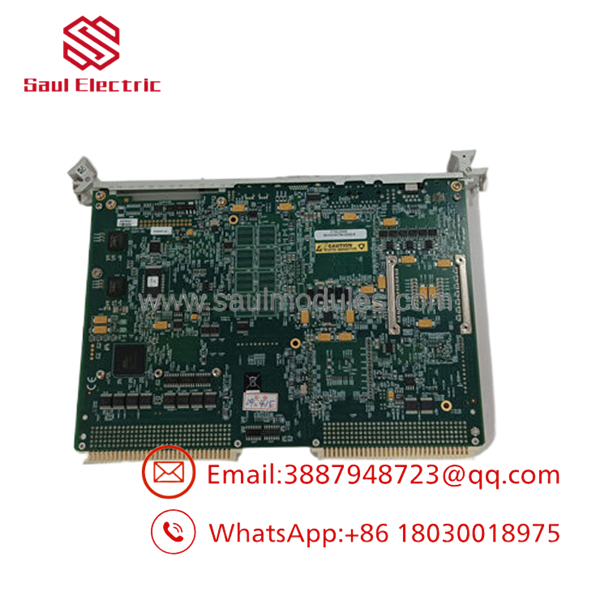

V7768-320000 3509301007768-320000B

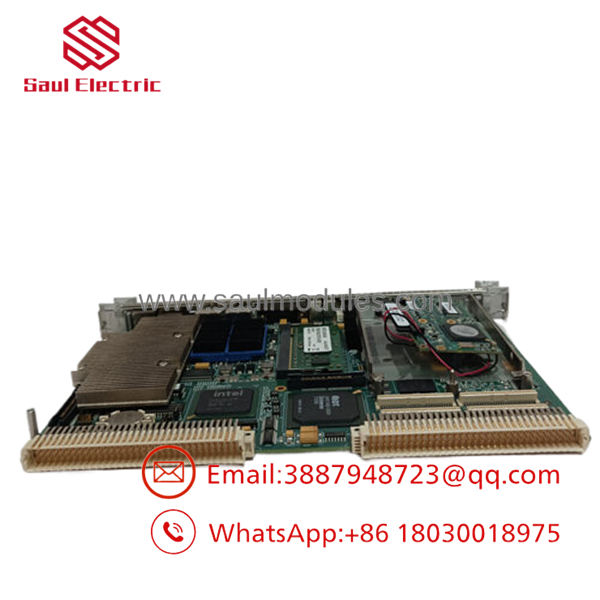

V7768-320000 3509301007768-320000B

Firmware/Software Versions & Upgrade Notes

This board should be matched to the same BIOS, operating system image, and application baseline already proven at the site. The main risk is not the board itself, but a software or boot-image mismatch that breaks legacy integration.

Avoid upgrading firmware during a hardware swap unless you already have a rollback plan and compatibility data. For VME systems, the safest approach is a like-for-like replacement with the existing image and settings preserved.

Frequently Asked Questions

Q: Is this really New Surplus?
A: It should be supplied as New Surplus / Original New, not refurbished. That means traceable legacy inventory rather than a repaired board.

Q: Why is it cheaper than OEM new but not as cheap as refurb stock?
A: New Surplus usually comes from excess inventory, project closeout, or secured distributor stock. That lowers price versus OEM list while keeping a stronger reliability profile than uncertain-condition parts.

Q: Is V7768-320000 obsolete?
A: Yes, treat it as a legacy VME spare and check site lifecycle status. If your installed base still depends on it, keep buffer stock and plan for last-time-buy coverage.

Q: Can I hot-swap it?
A: No, not as a default assumption. VME single-board computers should be replaced under a controlled outage unless the site procedure explicitly allows otherwise.

Q: Will my software or settings transfer automatically?
A: No. Record the boot image, BIOS settings, operating system, and application files before replacement. The new board should mirror the original setup exactly.

Q: What warranty terms are typical?
A: New Surplus industrial parts often carry vendor-backed warranty coverage, but the exact term depends on the supplier. Confirm warranty length, return policy, and serial traceability before purchase.
