Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Intelligent Platforms / Abaco Systems |
| Model | V7768-320001 |
| Product Type | VME Single Board Computer (SBC) |
| Form Factor | 6U Dual-Slot VME |
| Processor | Intel Core 2 Duo up to 2.16 GHz (configuration dependent) |
| Chipset | Intel 945GME Express |
| Cache | Up to 4 MB L2 Cache |
| Memory | Up to 2 GB DDR2 SDRAM (Single SODIMM) |
| Storage | Bootable CompactFlash (up to 8 GB), Dual SATA II |
| Ethernet | Dual 10/100/1000 Mbps Gigabit Ethernet |
| USB | Four USB 2.0 ports |
| Serial Ports | Two RS-232 ports |
| Video | Front-panel SVGA |
| Expansion | One PCI-X PMC expansion site |
| Bus Interface | VMEbus with Tundra Universe II bridge |
| Operating Systems | VxWorks, Linux, Windows, QNX (BSP dependent) |
| Operating Temperature | Commercial and extended-temperature versions available |
These specifications are based on the standard V7768 platform; exact processor, memory, and environmental ratings depend on the specific assembly revision.
Product Introduction
The GE V7768-320001 is a rugged 6U VME Single Board Computer (SBC) developed by GE Fanuc Intelligent Platforms (now Abaco Systems) for industrial automation, power generation, aerospace, defense, and embedded control applications. It combines Intel Core 2 Duo processing performance with extensive I/O connectivity while maintaining compatibility with existing VME64 systems.
The board integrates dual Gigabit Ethernet interfaces, SATA storage, CompactFlash boot capability, USB connectivity, and a PCI-X PMC expansion site for application-specific I/O modules. It provides a software-compatible migration path for earlier GE VME processor boards, allowing system upgrades with minimal changes to existing applications.

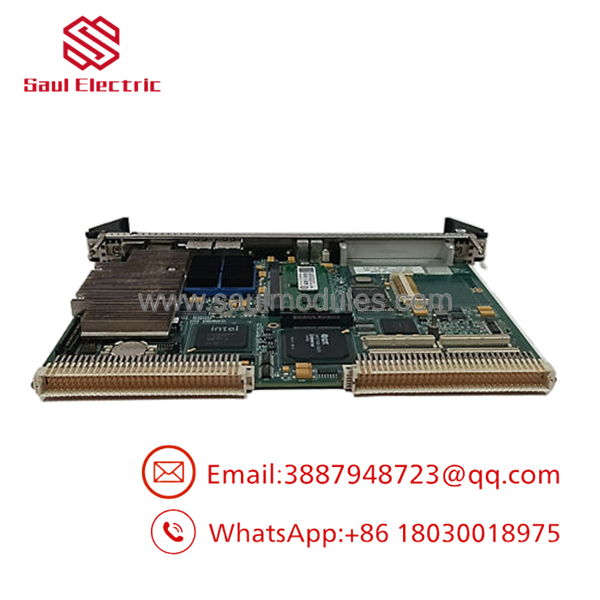

- V7768-320001

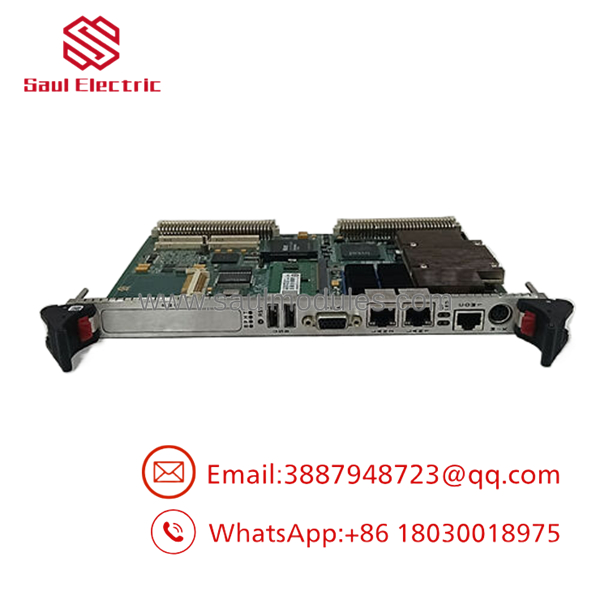

- V7768-320001
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Board does not boot | VME backplane power failure | ✅ High | Measure +5 VDC and inspect POST LEDs | Verify chassis power before replacing SBC |
| Operating system fails to load | CompactFlash or SATA media failure | ✅ High | Check BIOS boot sequence and storage device | Replace or restore boot media |
| Ethernet unavailable | Network configuration or PHY fault | ✅ High | Verify link LEDs and IP settings | Test network cables and switch |
| PMC module not detected | Expansion seating or BIOS configuration | ⚠️ Medium | Reseat PMC module and inspect BIOS settings | Verify PMC compatibility |
| Frequent system resets | Power instability or overheating | ⚠️ Medium | Monitor board temperature and supply voltage | Improve cooling and verify PSU |
| VME communication errors | Backplane connector issue | ✅ High | Test board in another VME chassis | Inspect VME connectors |
| Application crashes | Memory or firmware corruption | ⚠️ Medium | Run diagnostics and review system logs | Verify firmware and memory integrity |
Field Tip: Most V7768 startup failures are related to power distribution, boot media, or VME backplane issues rather than processor hardware. Before replacing the SBC, verify chassis voltages, inspect the CompactFlash or SATA storage device, confirm BIOS settings, and test the board in a known-good VME system.
Frequently Asked Questions (FAQ)
Q1. What is the primary function of the -320001?
The -320001 is a 6U VME Single Board Computer that serves as the main processor in embedded control and automation systems, running operating systems, application software, and real-time control tasks.
Q2. Which processor does the board use?
Most -320001 configurations use an Intel Core 2 Duo processor operating at up to 2.16 GHz, although some variants are available with Intel Celeron M processors.
Q3. What expansion capabilities are available?
The board includes one PCI-X PMC expansion site, allowing additional communication, data acquisition, or specialty I/O modules to be installed for application-specific requirements.
Q4. Which operating systems are supported?
Depending on the installed Board Support Package (BSP), the platform supports:
- VxWorks
- Linux
- Windows
- QNX
Actual support depends on the system integrator’s software and BIOS version.
Q5. Is the -320001 still manufactured?
The family is considered an End-of-Life (EOL) embedded computing platform. Most available units today are New Surplus, refurbished, or professionally tested spare parts used to maintain existing VME systems.
Q6. What applications commonly use the ?
Typical applications include:
- Power generation control
- Industrial automation
- Process control
- Aerospace and defense
- Transportation
- Data acquisition
- Test and measurement
- Embedded computing platforms
Q7. What should I verify before installation?
Engineers should verify:
- Complete model number ()
- Hardware revision
- VME chassis compatibility
- BIOS version
- Processor and memory configuration
- Operating system/BSP compatibility
- Boot media integrity
- PMC expansion compatibility
- Cooling and airflow
- ESD protection during installation
Completing these checks before commissioning helps ensure reliable system operation and minimizes downtime in mission-critical VME applications.
