Description
3. Key Technical Specifications
- Voltage Rating: 120V AC/DC
- Current Rating: 1A
- Operating Temperature: -40°C to +85°C
- Function: Field controller master unit with multi-channel input/output support
- Application: Industrial automation, substation control, gas turbine systems
- Design: High-performance processing for real-time control logic
- Mounting: Standard rack or panel integration in control systems
- Reliability Features: Designed for harsh industrial environments with robust signal handling
- Compatibility: Works within GE automation platforms for process control
4. Product Introduction & Supply Chain Strategy
The GE WES5123-1200 is a field controller master unit that serves as a central processing hub for monitoring and controlling multiple devices in industrial automation setups. It handles real-time control logic and I/O operations in substations, power generation, and process plants.
Buying this as New Surplus delivers strong total cost of ownership benefits. It avoids the high risks of refurbished parts that often fail prematurely due to hidden component wear, while providing immediate availability for obsolete/EOL models where OEM new stock no longer exists. Strategic stocking here prevents costly stock-outs and unplanned downtime in critical systems.

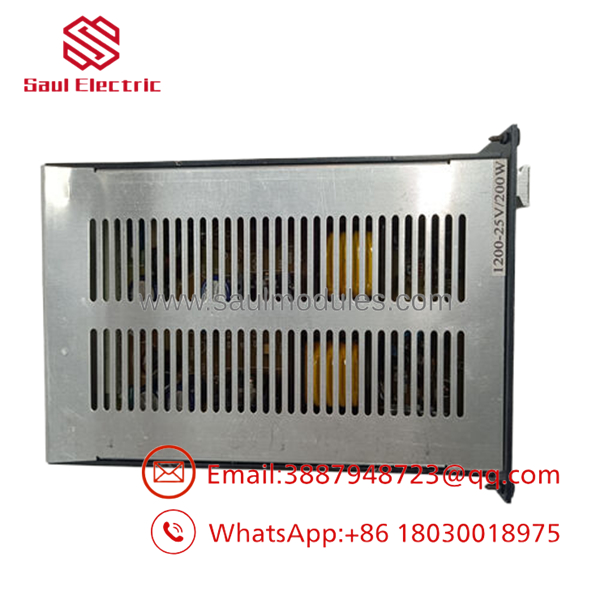

- WES5123-1200

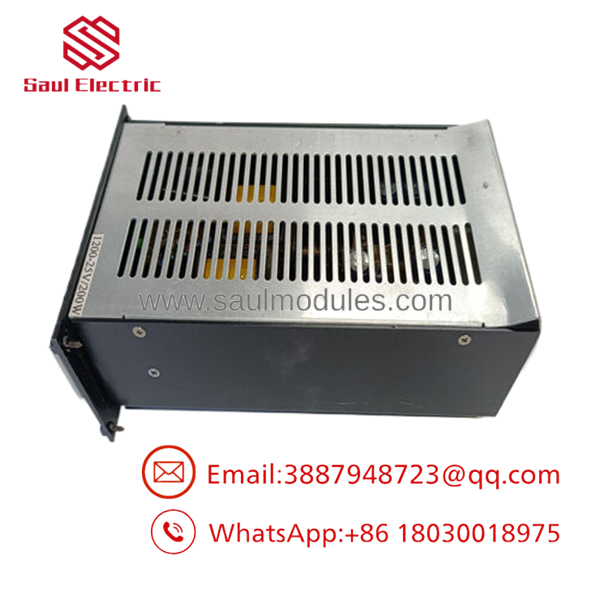

- WES5123-1200
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out and tag-out all power sources. Gather an ESD wrist strap, screwdriver set, and multimeter. Take clear photos of the existing module’s DIP switch settings, jumper positions, and terminal wiring for exact replication.
Stage 2: Removal Power down the system completely. Carefully loosen retaining screws and gently extract the old module straight out to avoid bending backplane pins. Inspect the backplane connectors for any debris.
Stage 3: Installation (Clone & Seat) Set all DIP switches and jumpers on the new WES5123-1200 to match the documented configuration from the old unit. Align the module with the backplane slot and seat it firmly until fully engaged. Secure retaining screws.
Stage 4: Power-On & Testing Verify 24V rails show no shorts before applying power. Monitor LEDs for proper RUN status versus any ERR indicators. Perform communication handshake tests and download or verify application logic as needed.
6. Firmware/Software Versions & Upgrade Notes
Recommended firmware should match the existing system version running on connected controllers to maintain compatibility. Document the current firmware on the installed unit before any swap.
V3.x versions may introduce protocol changes that are not backward compatible with older legacy drivers or configurations. Upgrading firmware during a hardware replacement carries risks of communication timeouts or logic mismatches. Downgrading can cause instability. Always test in a controlled environment and maintain backups of the original configuration.
7. Frequently Asked Questions (FAQ)
Q: Is the GE WES5123-1200 truly New Surplus and not refurbished? Yes. These units come as original OEM New Surplus with full traceability. They were manufactured by GE, stored properly in anti-static packaging, and verified through our QC process. They have zero runtime wear.
Q: Why does this cost more than refurbished options but less than current OEM new? New Surplus inventory requires global sourcing and rigorous testing to guarantee reliability. Refurbished parts carry hidden risks of early failure. Our price balances genuine condition with availability for an EOL part, delivering far better long-term value.
Q: Is this module obsolete or at End of Life? Yes, it falls into the obsolete/EOL category for many GE lines. We recommend maintaining buffer stock of 1-2 units as insurance for critical systems where lead times have extended significantly.
Q: Can I hot-swap this module without shutting down the plant? Hot-swapping carries risks of backplane damage or control disruption. We strongly advise a planned shutdown with proper lock-out/tag-out unless your specific redundant architecture explicitly supports it.
Q: What warranty do you provide? We offer a 1year warranty on this New Surplus unit, covering defects in materials and workmanship under normal operating conditions. Full test reports accompany each shipment.
Q: Will the programming and configuration transfer directly? In most cases yes, provided DIP switches, jumpers, and firmware match the original. Always document and replicate settings exactly to prevent integration issues.
Q: How do you ensure authenticity? Each unit includes OEM packing documentation, serial number verification, and our detailed QC test report confirming functional performance in a test rack environment.
