Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Intelligent Platforms / GE Fanuc |
| Model | WES5123-2600 |
| Product Type | Embedded CPU Module |
| Bus Architecture | VMEbus |
| Chipset | Intel 945GM Express |
| Processor Support | Intel Core™ 2 Duo / Intel Celeron® M (configuration dependent) |
| Front Side Bus | Up to 667 MHz |
| Memory | Up to 2 GB DDR2 SDRAM (SO-DIMM) |
| Memory Controller | Intel 945GM MCH |
| Graphics | Integrated Intel graphics with SVGA support |
| I/O Controller | Intel ICH7-M |
| High-Speed Interfaces | SATA, IDE, USB 2.0, PCI, PCI Express |
| Applications | Industrial automation, process control, data acquisition, embedded VME systems |
The Intel 945GM chipset integrates the memory controller, graphics controller, and processor interface, while the ICH7-M provides high-speed peripheral connectivity including USB 2.0, SATA, IDE, PCI, and PCI Express.
Product Introduction
The GE WES5123-2600 is an industrial embedded CPU module designed for VMEbus-based automation and real-time control systems. Built around the Intel 945GM Express chipset, it delivers high-performance processing while maintaining compatibility with legacy VME architectures used throughout industrial automation, process control, and embedded computing platforms.
Supporting Intel Core 2 Duo and Celeron M processors (depending on configuration), the module offers up to 2 GB DDR2 SDRAM, integrated graphics, SATA and IDE storage interfaces, USB 2.0, PCI, and PCI Express connectivity. This architecture makes it suitable for deterministic control applications requiring long-term platform stability and reliable operation in demanding industrial environments.
Typical applications include:
- Industrial automation
- Process control
- Power generation
- Factory automation
- Data acquisition systems
- Automatic test equipment (ATE)
- Embedded VME computing platforms

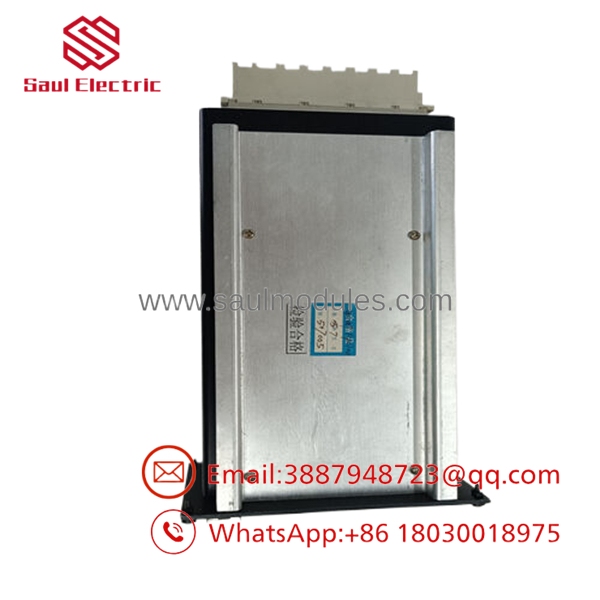

- WES5123-2600

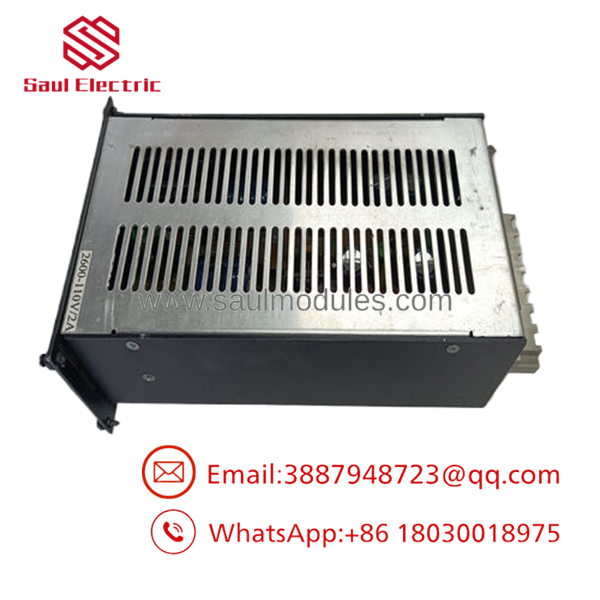

- WES5123-2600
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check Method | Recommendation |
|---|---|---|---|---|
| CPU module does not boot | Power supply or processor fault | ✅ High | Verify VME backplane voltages and POST indicators | Check chassis power before replacing module |
| Operating system fails to load | Storage device or BIOS issue | ✅ High | Verify SATA/IDE boot device and BIOS settings | Restore boot media if necessary |
| Memory errors | DDR2 SO-DIMM issue | ✅ High | Test memory using diagnostics | Reseat or replace memory module |
| USB or SATA unavailable | ICH7-M configuration fault | ⚠️ Medium | Check BIOS peripheral settings | Verify chipset configuration |
| VME communication failure | Backplane connector issue | ✅ High | Inspect VME connectors and slot | Test module in another chassis |
| System resets unexpectedly | Overheating or unstable power | ⚠️ Medium | Monitor CPU temperature and supply rails | Improve cooling and verify PSU |
| Expansion devices not detected | PCI/PCIe configuration issue | ⚠️ Medium | Review BIOS and hardware configuration | Verify expansion compatibility |
Field Tip: Most reported WES5123-2600 failures are caused by boot media, DDR2 memory, power supply, or VME backplane issues rather than processor hardware. Before replacing the CPU module, verify BIOS settings, test the memory, inspect storage devices, and confirm stable VME power distribution.
Frequently Asked Questions (FAQ)
Q1. What is the primary function of the WES5123-2600?
The is an embedded VME CPU module that performs operating system execution, application processing, communications, and real-time control within industrial automation systems.
Q2. Which processor architecture does it use?
The module is based on the Intel 945GM Express chipset and supports Intel Core 2 Duo or Intel Celeron M processors, depending on the hardware configuration.
Q3. How much memory does it support?
The supports up to 2 GB of DDR2 SDRAM installed through a SO-DIMM memory socket.
Q4. Which interfaces are integrated?
The onboard Intel ICH7-M controller provides:
- USB 2.0
- SATA
- IDE
- PCI
- PCI Express
- Integrated graphics (SVGA)
These interfaces support a wide range of embedded industrial applications.
Q5. Is the still available?
The is considered a legacy embedded computing platform. Most available units are supplied as New Surplus, refurbished, or professionally tested spare parts for maintaining existing VME systems.
Q6. Which industries commonly use this module?
Typical applications include:
- Power generation
- Industrial automation
- Process control
- Manufacturing
- Automatic test equipment (ATE)
- Data acquisition
- Embedded VME computing
- Factory automation
Q7. What should I verify before installation?
Engineers should confirm:
- Complete model number ()
- VME chassis compatibility
- Processor configuration
- DDR2 memory installation
- BIOS revision
- Boot device integrity
- VME backplane power
- Operating system compatibility
- ESD protection during installation
Completing these checks before commissioning helps ensure reliable operation and minimizes downtime in legacy GE VME-based automation systems.
