Product Introduction & Engineering Value
I’ve watched shops kill perfectly good machining centers over a dead display. It sounds absurd, but when the original BF 150 tube finally gives out on an iTNC 530, more than one plant manager has priced a whole control retrofit because “nobody fixes those anymore.” That decision costs six figures. This panel costs a fraction of that. The BF150/15.1 is HEIDENHAIN’s own flat-panel answer — same mounting, same connector philosophy, same front bezel footprint.
Installation is the selling point. It drops into the existing BF 150 cutout on the machine pendant, so you keep the original hinge bracket, enclosure seal, and operator layout. Sharpness and brightness improve noticeably over the aging tube it replaces, which matters on shop floors with high ambient lighting. And because it is a genuine HEIDENHAIN ID number (353522-04), it behaves exactly as the control expects — no converter boxes, no firmware hacks, no mystery Chinese clone with a three-month lifespan.
Technical Specifications
- Model designation: BF 150/15.1 flat-panel display
- HEIDENHAIN ID number: 353 522-04
- Display size: 15-inch diagonal, color TFT active-matrix LCD
- Function: Replacement for the original 15-inch CRT/TFT monitor BF 150
- Primary control compatibility: HEIDENHAIN iTNC 530 (and TNC generations fitted with the BF 150)
- Mounting: Designed to install into the existing BF 150 machine-side cutout and bracket
- Panel type: Flat-panel LCD (replaces tube-type predecessor)
- Operator interface role: Program display, dialog prompting, machine status, and soft-key menu rendering for the TNC
- Build origin: Germany
- Placement: Machine pendant / operator console of the CNC machining center
(Note: exact resolution, input voltage, and interface pinout vary by machine-side adapter version — confirm your control’s display cable ID before ordering.)

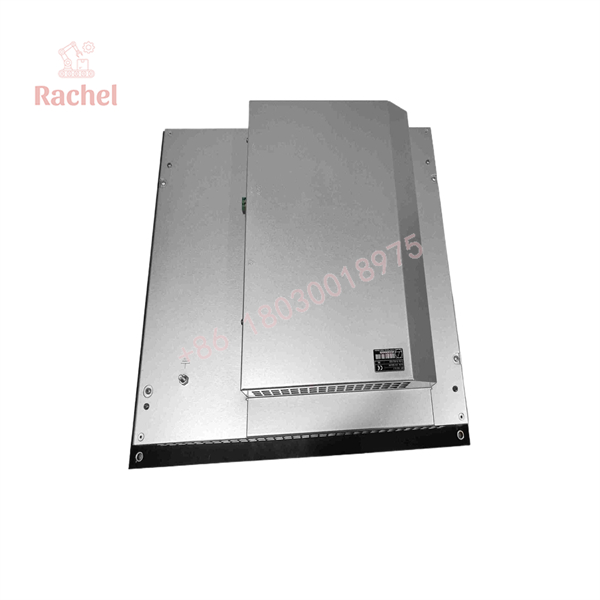

BF150/15.1 353522-04
Field Application & The “Trench” Experience
The Trench Story: A contract machining shop in Ohio called on a Tuesday with a 2005-vintage 5-axis machining center running an iTNC 530. The BF 150 screen had gone from dim, to flickering, to a faint ghost image — the operator was literally tilting his head to read tool offset dialogs off the reflection. The shop had a delivery due Friday. They found our BF150/15.1 (ID 353522-04) in stock and had it overnighted. The maintenance tech swapped it Wednesday morning: unbolt the old unit, transfer the display cable, bolt in the new panel, power up. The TNC came up instantly with a screen image so crisp the operator said it “looked like a new machine.” No parameter changes. No service call. The part shipped for Friday never left the dock late.
Niche Application Scenarios:
- Die-and-mold 5-axis cells on iTNC 530 — where long toolpath graphics render on screen all day and a failing tube causes operator eye strain during 12-hour shifts.
- Retrofitting a legacy tube-type BF 150 in a Swiss-type lathe — the flat panel cuts heat load inside a sealed pendant cabinet, extending the life of adjacent keyboard and PSU boards.
- Multi-machine tool cribs with shared spare strategy — buying two BF150/15.1 units as crib stock for a fleet of TNC-equipped mills so a dead display never again stops a hot job.
Transparency SOP: QA & Testing
Every BF150/15.1 we ship — New Surplus in sealed factory box or Refurbished — clears the same bench gate before it is packed:
- ✅ Incoming inspection — front bezel, protective glass/overlay, and housing checked for cracks, scratches, and UV-yellowing; ID label verified as 353 522-04 against HEIDENHAIN reference.
- ✅ Backlight and panel test — full white, full black, and grayscale sweeps to expose dead pixels, backlight clouding, and color banding; backlight hours assessed on Refurbished units.
- ✅ Signal run with a TNC-family display signal — video output verified across the full screen area with connector seating checked for intermittent contact.
- ✅ Soak test — minimum 4-hour powered burn-in monitoring thermal behavior, flicker, and standby recovery.
Photos of the actual unit and the bench checklist go out with every order. If you want video of the panel running before you commit, just ask.
The Veteran’s Tech Trap Guide
⚠️ The ID suffix is not cosmetic. 353 522-04 is not interchangeable with -02. HEIDENHAIN iterated the BF 150 line (353 522-02, -04, and other IDs in the family) with different internal interface boards for different control vintages. A “-02” panel on a machine that expects “-04” can produce a scrambled image or a blank screen even though the connector physically fits. Match the ID on your dead unit’s label — it is on the rear housing — before you order. We see wrong-suffix returns constantly, and shipping both ways wastes a week.
PRO TIP: Photograph the cable run before you unbolt anything. The display cable routes from the TNC through the pendant arm with strain reliefs sized for the tube unit’s depth. The flat panel is shallower, and a slack cable can vibrate against the casting. Dress it, tie it, and keep the original connector screws — the flat panel’s mounting threads strip easily if you gorilla them.
⚠️ Mind the power-on sequence and static. Power the machine down fully before swapping the display — hot-plugging a flat panel into a live TNC video output can take out the panel’s input stage, and you will have bought two displays instead of one. Use a wrist strap; the TFT driver board hates static as much as any PLC card. And while you are in the pendant, blow the dust out. A clean cabinet runs cooler, and cool electronics are the reason your original lasted fifteen years.
Dynamic FAQ
Q1: Will the BF150/15.1 work with my iTNC 530, or only older controls?
The BF150/15.1 (ID 353 522-04) is the flat-panel replacement for the original 15-inch BF 150 display family used across TNC controls including the iTNC 530 generation. Confirm the ID number on your current unit matches -04 before ordering; other suffixes in the family are not drop-in equivalents.
Q2: Is this a CRT-to-LCD conversion kit with adapters, or a direct HEIDENHAIN part?
It is a genuine HEIDENHAIN flat-panel display with its own OEM ID (353 522-04), built as the factory successor to the tube-type BF 150 — not a third-party conversion box. It installs into the original cutout using the existing mounting arrangement.
Q3: Does swapping the display require any TNC parameter or software changes?
No. The display is a rendering peripheral for the control — the TNC software, parameters, and part programs are untouched. The swap is mechanical: disconnect, replace, reconnect, power up.
Q4: What condition is your stock, and how is it verified as genuine?
We offer both sealed-box New Surplus and fully bench-tested Refurbished units. Authenticity is confirmed by the HEIDENHAIN ID label (353 522-04), housing construction, and internal board markings checked against OEM reference material. Photos and test reports are provided with every unit before it ships.
Q5: What should I check on my machine before ordering?
Three things: the ID suffix on your existing display’s rear label, the condition of the display cable and connector (a chafed cable can mimic a dead panel), and your pendant’s mounting bracket hardware. If any of those are questionable, tell us and we will advise before you buy.
Q6: What warranty comes with the BF150/15.1?
Both New Surplus and Refurbished units carry a 12-month warranty covering functional failure — panel defects, backlight failure, or input board faults — under normal shop use. Each unit passes the full bench sequence above before shipping, so a warranty claim is rare; when one happens, we cross-ship a replacement to keep your machine running.
