HIMA F7130A 984713060 Power Supply H41 System

Description

Product Introduction & Engineering Value

F7130A is a power-conversion module for the HIMA H41 system. Available technical descriptions identify it as a DC/DC converter that accepts 24 VDC and supplies 5 VDC to the PES, with electrical isolation between the input and output circuits.

This distinction matters during procurement. F7130A is not a CPU, communication module, or general-purpose PLC power supply. It is an H41 system power component, so the correct replacement must match the installed H41 architecture and the original electrical interface.

Technical Specifications

The available technical description specifically states that F7130A supplies the H41 system with 5 VDC from a 24 VDC main supply and that its input and output are electrically isolated.

Important correction for procurement

Some reseller listings incorrectly categorize F7130A as a communication or CPU-related component. The stronger evidence is HIMA’s own certification documentation, which clearly lists F7130A (H41) as a Power Supply Module.

Do not use reseller descriptions such as “220 V” or “30 kHz” as authoritative specifications for this part without supporting HIMA documentation. Those values conflict with the available technical description identifying the module as a 24 VDC-to-5 VDC isolated DC/DC converter.

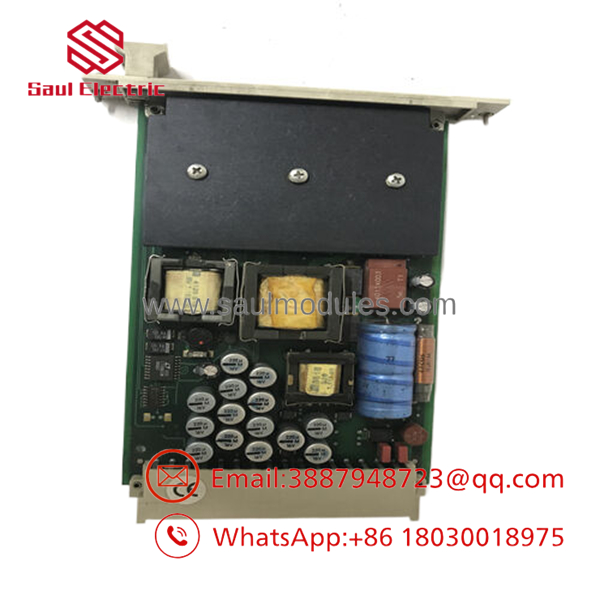

F7130A 984713060

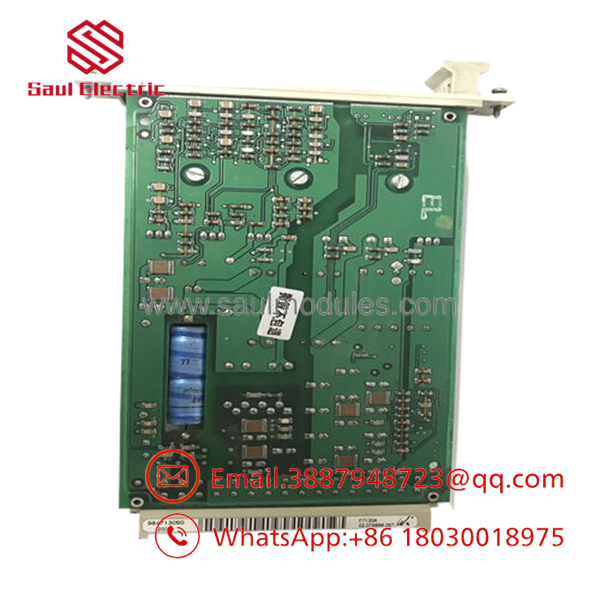

F7130A 984713060

Field Application & the “Trench” Experience

A classic failure scenario is an H41 system that begins showing unexplained processor or I/O faults. The first instinct is often to suspect the CPU or an individual I/O module.

Power should be checked first.

If the 5 VDC rail is unstable, under-voltage, or intermittently collapsing, replacing downstream electronics may simply mask the real problem. sits at the power-conversion stage, so its input voltage, 5 VDC output, protection behavior, connectors, and associated load need to be checked before condemning the controller.

Niche application scenarios

• H41 safety-controller power conversion: generation of the regulated 5 VDC rail required by the programmable electronic system.
• H41 I/O power architecture: supplying the appropriate low-voltage rail to the central-device and I/O-related supply paths.
• Legacy safety-system maintenance: direct replacement of a failed or degraded in an existing H41 installation.

Transparency SOP: QA & Testing

For New Surplus or Refurbished 984713060 stock, use a controlled power-supply test rather than a visual inspection alone.

1. Part-number verification — Confirm both and 984713060 where markings permit.
2. Physical inspection — Check terminals, PCB condition, connectors, mounting points, and signs of overheating.
3. Input test — Apply the specified 24 VDC input using a current-limited laboratory supply.
4. Output test — Measure the 5 VDC output at no-load and under an appropriate representative load.
5. Protection test — Verify protection behavior using a controlled procedure; do not intentionally create a destructive short circuit.
6. Isolation check — Verify appropriate input/output isolation using the approved test method.
7. Thermal observation — Monitor temperature and output stability during an extended operating test.
8. QA record — Record input voltage, output voltage, load condition, test duration, serial/part identification, and warranty.

Do not bench-test a safety-system power module by randomly connecting loads. Use a controlled test fixture and stay within the manufacturer’s specified limits.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Mistaking for a CPU

is a power supply module, not the H41 processor. HIMA’s certification documentation explicitly classifies it as a power supply module.

PRO TIP: If an H41 system has unexplained widespread faults, check the supply rails before replacing multiple I/O or CPU components.

⚠️ Trap #2 — Applying 230 VAC because a reseller lists “220 V”

This is particularly dangerous.

The technical description available for identifies a 24 VDC input and 5 VDC output.

Do not apply mains voltage based on an inaccurate marketplace listing.

⚠️ Trap #3 — Testing only the 5 VDC output with no load

A marginal power converter can show an apparently correct voltage with no load and collapse when the H41 system draws current.

PRO TIP: Include a controlled load test when qualifying a spare.

⚠️ Trap #4 — Ignoring the source 24 VDC

A failed is not the only possible cause of a missing 5 VDC rail. Verify the upstream 24 VDC supply, wiring, fusing, and connectors before replacing the module.

Dynamic FAQ

What is HIMA 984713060?

, part number 984713060, is a HIMA H41 power supply module. HIMA’s certification documentation identifies specifically as a power supply module.

What input voltage does use?

The available technical description identifies 24 VDC as the main input supply.

What output does provide?

The module converts the 24 VDC input to 5 VDC for the H41 programmable electronic safety system.

Is electrically isolated?

Yes. The available technical description identifies electrical isolation between the input and output circuits. It also describes overvoltage protection, current limitation, and short-circuit-protected outputs.

Is a HIMA H41 power supply or communication module?

It is a power supply module. HIMA’s own certificate lists (H41) — Power Supply Module.

What should I request when buying New Surplus ?

Request photographs of the actual module, confirmation of / 984713060, hardware markings, condition classification, and a power-supply test report showing the applied input voltage and measured 5 VDC output.

Is still relevant for legacy H41 systems?

Yes. HIMA’s certification documentation continues to list as an H41 power supply module. For an operating legacy H41 installation, maintaining a tested spare can be useful because a power-supply failure can affect the entire control system.
