Description
Product Introduction & Engineering Value
The Hollysys SM711 is a digital output module designed for HOLLiAS MACS automation systems, providing 16 discrete output channels for controlling industrial devices. It is commonly used where reliable switching control is required between the control system and field equipment such as valves, contactors, and indicators.
For maintenance teams supporting existing Hollysys PLC or DCS installations, the SM711 offers a practical replacement path when the installed I/O architecture remains operational. Engineers should verify terminal module compatibility, PROFIBUS configuration, and output wiring before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Hollysys |
| Model | SM711 |
| System Family | HOLLiAS MACS |
| Module Type | Digital Output Module |
| Number of Channels | 16 digital output channels |
| Output Type | Transistor switching output |
| Communication Interface | PROFIBUS-DP slave interface |
| Terminal Compatibility | SM3710 / SM3711 / SM3712 / SM3713 terminal modules |
| Hot Swap Support | Yes |
| Channel Diagnostics | Output fault monitoring |
| Status Indicators | RUN, communication, and channel LED indicators |
| Typical Voltage Class | Industrial DC switching applications (commonly 24 VDC systems) |
Field Application & The “Trench” Experience
A chemical processing facility operating a Hollysys HOLLiAS MACS control system experienced intermittent failures on several motorized valve outputs. Operators reported that process commands were reaching the controller, but field actuators were not responding consistently.
The maintenance team isolated the issue to an aging SM711 output module. Instead of replacing the complete I/O rack, they installed a verified replacement module, transferred the channel mapping, checked the terminal wiring, and confirmed PROFIBUS communication. The affected control loops returned to normal operation during a scheduled maintenance window.
Common application scenarios include:
- Discrete valve actuation in process control panels
- Motor starter and contactor control circuits
- Alarm annunciator and interlock output systems

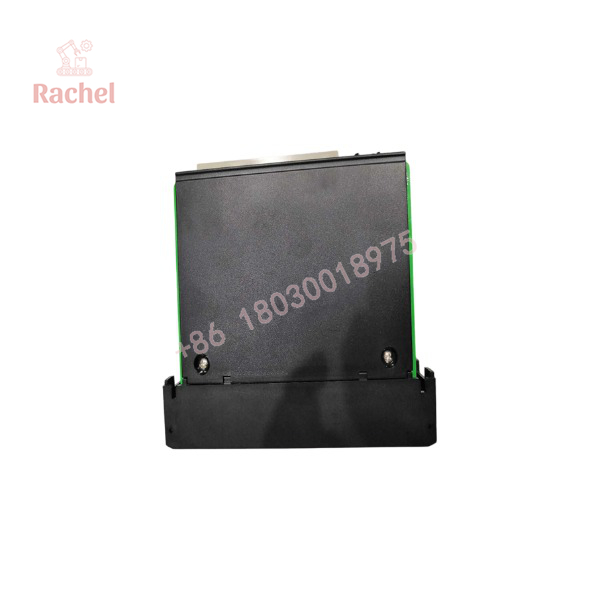

SM711

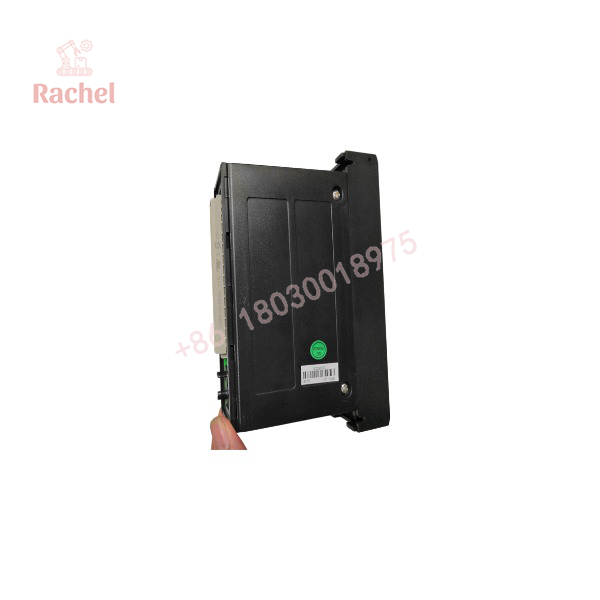

SM711
Transparency SOP: QA & Testing
SM711 inspection and verification process:
- Identification Check
- Confirm Hollysys marking and SM711 model number.
- Verify module condition and terminal interface compatibility.
- Hardware Inspection
- Examine PCB condition, connectors, housing, and mounting components.
- Check for oxidation, physical damage, or storage-related contamination.
- Functional Testing
- Verify module power-up behavior.
- Check communication status indicators.
- Test output channel switching where test equipment is available.
- Final Quality Review
- Record inspection results.
- Package using ESD protection procedures.
- Provide traceability information for receiving inspection.
The Veteran’s Tech Trap Guide
⚠️ Terminal Module Matching Is Easy to Miss
The SM711 works with specific Hollysys terminal modules. A replacement module that physically fits may still fail if the terminal interface configuration does not match.
PRO TIP:
Record the complete I/O rack layout before removing the failed module.
⚠️ Check Output Wiring Before Blaming the Module
Field wiring faults, failed solenoid coils, and short circuits can damage output channels or create repeated module alarms.
⚠️ Do Not Ignore PROFIBUS Addressing
The SM711 depends on correct communication configuration. Incorrect addressing or network settings can make a healthy module appear defective.
Dynamic FAQ
Q1: What is the Hollysys SM711 used for?
The SM711 is a 16-channel digital output module used in Hollysys HOLLiAS MACS control systems for switching industrial field devices.
Q2: Is the SM711 a PLC module or DCS module?
It is primarily used as an I/O module within Hollysys industrial control systems, including HOLLiAS MACS automation platforms.
Q3: How many output channels does the SM711 provide?
The module provides 16 discrete output channels.
Q4: Can a New Surplus SM711 be installed directly?
A New Surplus unit should still be verified for model accuracy, hardware condition, firmware compatibility, and system configuration before installation.
Q5: What should be checked before replacing an SM711?
Confirm the existing rack position, terminal module type, PROFIBUS settings, output voltage requirements, and field wiring condition.
Q6: What warranty is available for refurbished SM711 modules?
Warranty coverage depends on the supplier. Industrial refurbished modules should include inspection records and functional testing documentation before deployment.
