Honeywell 05701-A-0293 System 57 Backplane PCB Board

Description

Product Introduction

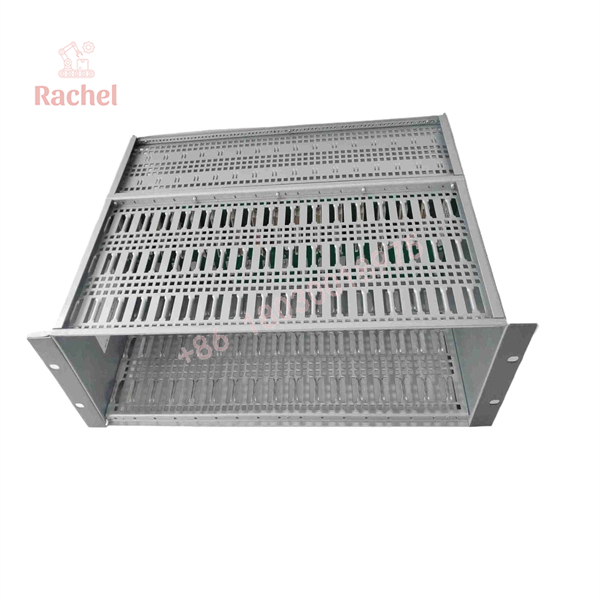

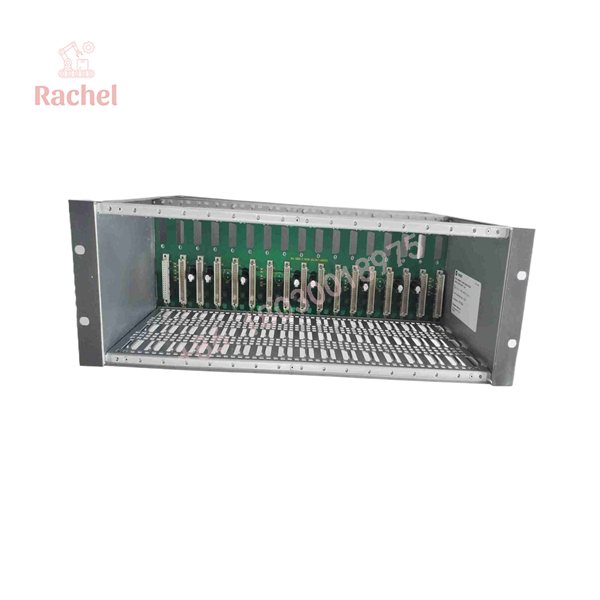

The Honeywell 05701-A-0293 is the foundational 16-way backplane printed circuit board for the widely deployed System 57 gas and fire monitoring architecture. Installed directly into the rear of a standard 19-inch 3U sub-rack, it provides the physical card-edge sockets and trace infrastructure that tie together 5701 single-channel control modules, 5704 four-channel control modules, engineering cards, and relay interface boards.

Unlike standard I/O communication cards, the 05701-A-0293 functions as a passive, high-reliability bus backbone. It distributes dual-redundant 24V DC field power and routes raw 4-20mA sensor signals, master fault lines, and alarm output busses across all 16 slots without introducing active semiconductor components that could act as single points of failure.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A offshore gas production platform off the Gulf Coast hit a critical snag during a planned turnaround. Moisture ingress through a degraded enclosure seal had corroded the edge connector contacts on Slot 3 and Slot 4 of the main System 57 rack. The resulting intermittent ground fault was throwing false LEL (Lower Explosive Limit) alarms, threatening an unwanted emergency shutdown of the entire processing deck at a cost exceeding $40,000 per hour. Snapping out the corroded 05701-A-0293 backplane board, swapping over the rear field-wiring terminal blocks, and reseating the 5701 control cards restored zero-fault communication to all toxic and flammable gas loops in less than an hour.

• Offshore Oil & Gas – Centralized Safety Systems – Connects multi-channel gas detection cards monitoring hydrocarbon leaks across production decks.
• Chemical Processing Plants – Toxic Gas Mitigation Racks – Houses high-density toxic sensor control cards running 24/7 continuous monitoring loops.
• Wastewater Treatment – H2S and Methane Monitoring Panels – Serves as the primary physical bus for rack-mounted safety interlocks and exhaust fan control relays.

05701-A-0293

05701-A-0293

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Honeywell System 57 racks.

1. Inbound Mechanical Inspection: Microscopic check of all 16 multi-pin card edge connectors to verify zero pin deformation, corrosion, or trace lifting.
2. Trace Continuity & Isolation Testing: Megger and high-precision resistance testing across power rails, signal traces, and ground planes to catch hidden shorts or stress cracks.
3. Live Rig Power Load Test: Mounted in a 3U sub-rack chassis with a full load of 16 dummy cards, drawing a continuous 8A load across the 24V DC bus bar for 12 hours.
4. Signal Crosstalk Audit: Oscilloscope signal trace evaluation across adjacent card channels to ensure zero signal bleed on 4-20mA lines.
5. Anti-Static Packaging: Sealed inside heavy-duty anti-static shielding bags with desiccant and custom foam casing to prevent pin damage during freight transport.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Label field wiring connectors before removal: The backplane interfaces with field terminal blocks on the rear. Take clear, well-lit photos and tag every terminal strip before unmounting the old 05701-A-0293. Reversing 24V DC power and signal return wires will instantly fry the input stage on any installed 5701 control cards.
• ❗ Check for bent card guide pins: When sliding control cards back into the sub-rack after replacing the backplane, align the card edges perfectly in the plastic top and bottom guides. Forcing a card into an unaligned slot will flatten the female card-edge pins on the new backplane board.
• ⚠️ Verify bus link jumper settings: Depending on your system configuration (single sub-rack vs. daisy-chained multi-rack setups), specific jumper links on the backplane control master alarm bus routing. Ensure the replacement board’s jumper configuration matches your original card layout exactly.
• ❗ Inspect the main DC supply polarity: The backplane features solid copper power traces designed for high current, but it lacks active reverse-polarity protection diodes on the bus itself. Double-check supply voltage with a multimeter before powering up the cabinet.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Honeywell 05701-A-0293 backplane active or passive?

A: It is a passive printed circuit board. It contains no microprocessors or complex active logic components. It acts purely as a robust physical and electrical interconnect medium for power, signal, and alarm routing between System 57 cards.

Q: Can I hot-swap individual control cards on this backplane while the rack is powered?

A: While System 57 control cards are designed to allow live insertion in many scenarios, we strongly advise placing the specific gas channel in bypass mode or killing rack power before pulling or inserting cards to prevent accidental alarm trips or arcing on the edge pins.

Q: What is the difference between the 05701-A-0293 and other System 57 backplane part numbers?

A: The 05701-A-0293 is the standard full 16-channel, 19-inch 3U rack backplane board. Smaller half-rack or custom cabinet variants use different part numbers with fewer card-edge slots (such as 8-channel variants).

Q: Are these backplane boards brand new or refurbished surplus?

A: Because Honeywell has phased out portions of the classic System 57 lineup, we supply both un-used factory surplus and fully reconditioned/tested boards sourced from working industrial plants. Every board undergoes strict electrical continuity and load testing before shipment.

Q: What warranty cover comes with this backplane board?

A: We provide a full 12-month replacement warranty on all 05701-A-0293 backplane units. If any trace or connector fails under normal operating conditions within one year, we send out a replacement unit immediately.
