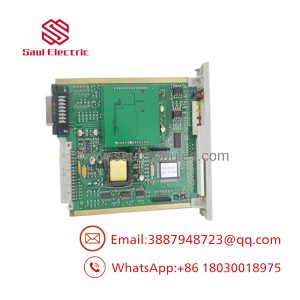

Honeywell 05701-A-0302 System 57 Single Channel Control Card

Description

Product Introduction

The Honeywell 05701-A-0302 is a single-channel 5701 control card designed for the System 57 gas safety architecture. Slotted directly into a System 57 3U sub-rack backplane, it provides continuous monitoring, local visual status indication, and alarm relay actuation for individual toxic gas, flammable gas, or oxygen depletion sensors.

Unlike multi-channel processing cards that share signal conditioning across several sensors, the 05701-A-0302 delivers isolated, dedicated channel processing. If a single card experiences a hardware fault, neighboring channels on the backplane remain fully operational, ensuring high safety loop availability across critical industrial process zones.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A refinery offsite storage farm experienced an unexpected channel failure on a catalytic bead combustible gas loop at 3:10 AM. The front panel of the legacy card showed a permanent sensor-fault lockout, leaving a propane transfer skid unmonitored. Plant safety rules strictly prohibited loading operations without active LEL monitoring, stalling three transport trucks at the gate. The instrument tech pulled the faulty card, checked the configuration card EEPROM header, slotted in a replacement 05701-A-0302 card, and executed a quick zero/span handshake with the field detector to clear the interlock before the morning shift started.

• Petrochemical Refineries – Combustible Gas Monitoring – Processes 4-20mA signals from hydrocarbon LEL transmitters placed around pump rows.
• Chemical Storage Facilities – Toxic Gas Leak Detection – Monitors ambient chlorine or ammonia levels with high-speed alarm relay trips for extraction fans.
• Pharmaceutical Manufacturing – Oxygen Depletion Safety – Connects to O2 sensors in nitrogen-purged processing rooms to prevent personnel asphyxiation hazards.

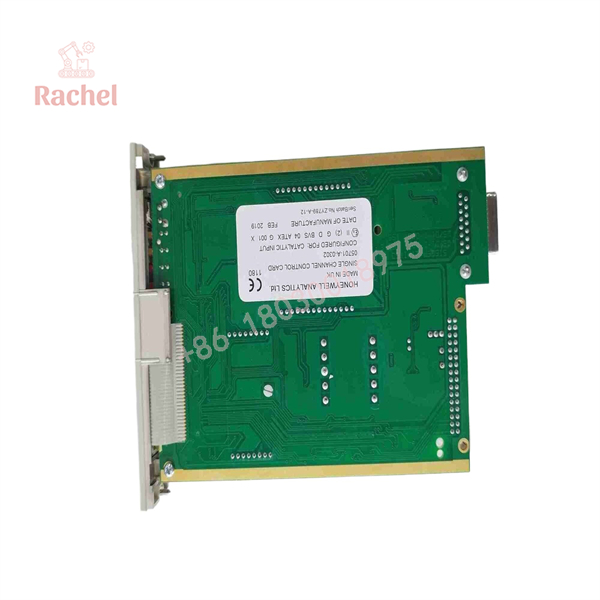

05701-A-0302

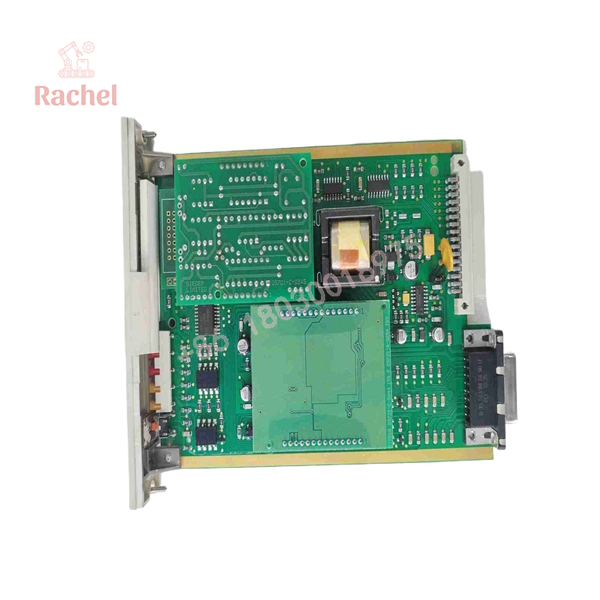

05701-A-0302

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Honeywell System 57 racks.

1. Inbound Visual & Hardware Audit: Inspect front-panel bezel, latch mechanisms, edge connectors, and internal PCB solder points under magnification.
2. Backplane Power-On Diagnostic: Seat card in a live System 57 rack chassis; verify proper boot sequence, display initialization, and self-test routines.
3. Loop Calibrator Signal Sweep: Inject precision 4-20mA signals (4mA, 8mA, 12mA, 16mA, 20mA) using a Fluke loop calibrator; confirm exact reading accuracy on the LED bar graph and LCD screen.
4. Relay & Bus Output Test: Trigger simulated A1, A2, A3, and Fault conditions; verify physical relay contact closure and signal transmission across the backplane bus lines.
5. ESD Protection & Packaging: Apply connector protective covers, seal inside a anti-static shielding bag with fresh desiccant, and pack in high-density foam shipping boxes.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify your engineering card configuration: The 05701-A-0302 control card relies on a small rear engineering/key card mated to the backplane slot. If you replace the front card, make sure the engineering card pin configuration matches your sensor type (catalytic bead vs. 4-20mA transmitter).
• ❗ Watch out for card-edge alignment: System 57 sub-racks use narrow plastic guides. Do not force the card into the slot if you feel resistance. Misaligned insertion will bend the female backplane socket pins or fracture the PCB edge contacts.
• ⚠️ Mute alarm outputs before swapping: When pulling or inserting the 05701-A-0302 card live, transient contact bounces on the backplane can momentarily trip common alarm relays or ESD interlocks. Always lock out downstream tripping circuits at the engineering panel first.
• ❗ Perform zero and span calibration after replacement: Even if the replacement card uses the same configuration settings, minor component tolerances mean you must re-verify zero and span calibration against the field sensor using certified gas.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Honeywell 05701-A-0302 card hot-swappable?

A: While System 57 sub-racks allow live removal in many cases, pulling the card can cause momentary signal spikes on shared backplane alarm lines. We strongly recommend placing the specific safety loop in bypass or inhibited mode before swapping the module.

Q: Can this card accept signals from non-Honeywell gas detectors?

A: Yes. The 05701-A-0302 accepts standard industrial 4-20mA current loop inputs from virtually any 2-wire or 3-wire gas transmitter, provided the engineering card is configured for standard 4-20mA loop operation.

Q: Does the 05701-A-0302 store its calibration settings on the card itself?

A: Basic operating parameters and alarm setpoints are stored on the card’s internal memory, but sensor-specific calibration parameters work in conjunction with the rear engineering card attached to the backplane slot.

Q: What is the difference between new surplus and refurbished units?

A: New surplus units are unused items in original factory packaging from spare parts inventories. Refurbished units are pre-owned cards that have been completely inspected, cleaned, repaired if necessary, and fully tested on live System 57 racks.

Q: What warranty coverage comes with this control card?

A: We back all 05701-A-0302 cards with a full 12-month replacement warranty. If the card exhibits hardware faults or signal processing errors under normal operating conditions within one year, we replace it immediately.
