Description
Product Introduction & Engineering Value
The 05701-A-0361 is effectively the service and engineering interface for a Honeywell System 57 rack. It provides the front-panel controls and system-level functions required to commission and operate installed gas-detection control cards. It also handles backplane communications, system clock functions, and routing of the rack’s 24 VDC supply from the DC Input Card.
This card belongs in the right-hand slot of the System 57 rack. It is not a detector input card and should not be confused with the 05701-A-0301 single-channel 4–20 mA control card or the 05701-A-0325 DC Input Card. Its role is system-level engineering and rack management.
Technical Specifications
- Part Number: 05701-A-0361
- Manufacturer: Honeywell Analytics / Sieger
- Product Type: Engineering Card
- System: System 57 / 5701
- Rack Position: Right-hand slot
- Supply Voltage: 18–32 VDC
- Typical Power Consumption: 1.5 W
- Dimensions: 132 mm H × 25 mm W × 170 mm D
- Weight: Approximately 152 g
- Front Indicators: Power On and Unlocked LEDs
- Controls: Up, Down, Reject, Accept; Up + Down for Print
- External Interface: Mini-DIN serial interface
- Engineering Functions: Alarm checking/adjustment, zero, span, inhibit, clock, sensor monitoring
- Backplane Function: Serial communications control and monitoring
- Self-Test: Self-validation of circuitry, software operation, and backplane communications
The published dimensional, electrical, indicator, and control specifications are consistent across several System 57 technical listings.
Key engineering functions
The card provides access to alarm setpoint checking and adjustment, sensor zero/span functions, sensor-line monitoring, alarm inhibit, system clock adjustment, and catalytic sensor-head current monitoring. It also contains a socket for special expansion modules.
The front panel includes a mini-DIN socket for connection to a serial printer, computer, or engineering key. The engineering key is used to unlock functions that can modify control-card operation.
Field Application & the “Trench” Experience
Picture a legacy System 57 rack during scheduled gas-detector calibration. The individual channel cards power up, but the technician cannot reliably access configuration functions or communicate with the rack through the engineering interface. Replacing individual detector cards would miss the actual problem.
The 05701-A-0361 is the system-level card to investigate. It manages the engineering interface and backplane communications while providing access to configuration and calibration functions. A replacement should be checked for correct rack position, supply voltage, communications behavior, and access to the required engineering functions before the rack is returned to service.
Specific application scenarios
- System 57 gas-detector commissioning — setting and checking alarm thresholds and detector parameters.
- Scheduled detector calibration — accessing zero, span, and sensor-monitoring functions.
- Legacy gas-detection cabinet maintenance — maintaining the engineering interface of an existing 5701 rack.
- Rack-level diagnostics — monitoring backplane communications and performing system self-validation.
Honeywell’s original ordering information lists the 05701-A-0361 Engineering Card as a component of both 8-way and 16-way System 57 rack configurations.

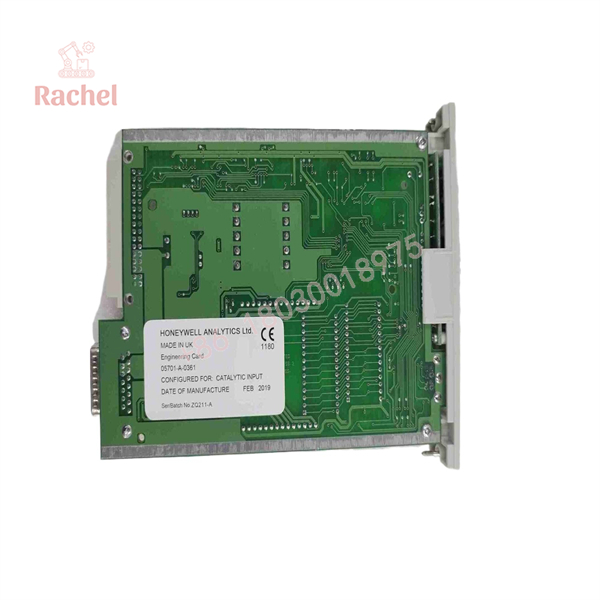

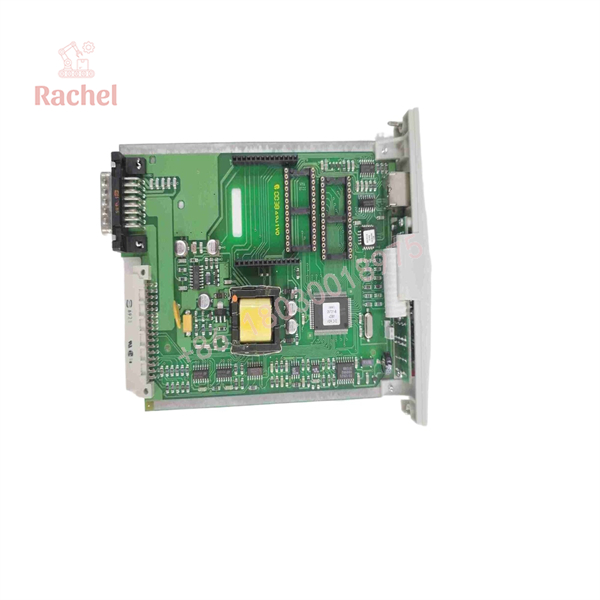

05701-A-0361
05701-A-0361
Transparency SOP: QA & Testing
For New Surplus 05701-A-0361 inventory, the useful inspection sequence is:
- Part-number verification — confirm the board marking and identification label.
- Physical inspection — examine the PCB, card edge, front-panel keypad, LEDs, mini-DIN socket, and mounting hardware.
- Power verification — apply an appropriate 18–32 VDC test supply under controlled conditions.
- Front-panel test — verify Power On and Unlocked indications and keypad response.
- Communications test — verify the engineering interface and backplane communication functions where suitable System 57 equipment is available.
- System test — install into an appropriate rack and verify access to engineering functions without altering production alarm settings unintentionally.
One current reseller identifies the part as phased out, while Honeywell continues to list 05701-A-0361 in its System 57 documentation and current accessory/spares information.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Treating the 0361 as another channel card.
It is not. The 05701-A-0361 is the Engineering Card, while cards such as 05701-A-0301 perform single-channel detector control. The engineering card provides rack-wide functions rather than representing one detector channel.
⚠️ Trap #2 — Installing it in the wrong rack position.
Honeywell documentation specifies that the Engineering Card is fitted in the right-hand slot of the System 57 rack. Position matters because the card interfaces directly with the rack’s power and backplane communication architecture.
PRO TIP: Before removing the original card, record the current engineering-key/security state and photograph the front-panel indicators. The card provides functions that can alter control-card operation, so configuration access should be handled deliberately.
⚠️ Trap #3 — Assuming a working front panel means the card is fully healthy.
The 0361 also handles backplane serial communications, system timing, power routing, and self-validation. A keypad or LED test alone does not establish full System 57 functionality.
Dynamic FAQ
What is Honeywell 05701-A-0361?
It is the Engineering Card for the Honeywell System 57 / 5701 gas-detection rack. It provides the common interface for commissioning and operating the installed control cards.
Where is the 05701-A-0361 installed?
Honeywell documentation specifies the right-hand slot of the System 57 rack. It is included in both 8-way and 16-way rack configurations.
What voltage does the 05701-A-0361 require?
Published specifications identify an 18–32 VDC supply range, with typical power consumption of approximately 1.5 W.
What can the Engineering Card configure?
Depending on the system and security level, it provides functions including alarm setpoint checking and adjustment, sensor zero and span adjustment, sensor-line monitoring, alarm inhibit, sensor-life monitoring, clock adjustment, and catalytic sensor-head current monitoring.
Is the 05701-A-0361 still manufactured?
Current reseller information describes the part as phased out, while Honeywell documentation still identifies it as a System 57 spare and Honeywell’s current accessory listing continues to show the part number. Availability therefore depends on remaining original, surplus, or service inventory.
Can New Surplus 05701-A-0361 be supplied with a warranty?
Yes, depending on the supplier. The seller should clearly identify whether the unit is unused original surplus, new old stock, refurbished, or previously installed, and state the warranty period. For this card, functional testing of the front-panel controls and System 57 communications is more meaningful than a cosmetic inspection alone.
