Description
Product Introduction & Engineering Value
The 05701-A-0550 is easy to misclassify because it carries a System 57 part number like the control and interface cards around it. It is not an I/O module, relay card, power card, or controller. It is a service accessory used to provide the appropriate engineering/calibration access to System 57 equipment.
Honeywell’s System 57 documentation places the 0550 Key Kit alongside the Engineering Card, DC Input Card, racks, and other 5701 components. The historical 5704 operating manual also lists 05701-A-0550 as the Key Kit in the 5701 control-system parts arrangement.
Technical Specifications
- Manufacturer: Honeywell Analytics
- Part Number: 05701-A-0550
- Product Family: System 57
- System Association: 5701 / System 57 gas detection
- Product Type: Calibration Plug / Key Kit
- Primary Function: Engineering and calibration access
- Service Role: Commissioning, calibration, maintenance, and control-card access
- Electrical Function: No published active I/O function
- Installation Type: Service accessory rather than a permanently installed rack card
- Associated Hardware: System 57 control cards and Engineering Card
- System Documentation Designation: System 57 Calibration Plug
- Honeywell Current Listing: SYS57 Key Kit, Control Card Extract / Engineering
Honeywell’s published spare-parts table explicitly calls the 0550 a System 57 Calibration Plug, while Honeywell’s current product page identifies it as a System 57 accessory.
Important specification note: Honeywell does not publish conventional electrical specifications such as channel count, input voltage, signal range, or output current for the 05701-A-0550 because it is a service/calibration accessory rather than an electronic I/O card. Be cautious with third-party listings that assign 4–20 mA channels, relay outputs, or 24 VDC operating specifications to this exact part number; those specifications conflict with Honeywell’s identification of the 0550 as a calibration plug.
Field Application & the “Trench” Experience
A realistic maintenance situation is a legacy System 57 rack scheduled for detector calibration. The control cards are operating, the detector loops are connected, and the calibration procedure is ready to begin—but the maintenance team discovers that the original engineering/calibration key is missing from the instrument cabinet.
That is where the 05701-A-0550 matters. It is a small component, but without the correct service accessory, an otherwise functional System 57 installation can become inconvenient to commission or maintain. Honeywell specifically includes the 0550 in the System 57 spare-parts and accessory documentation.
Specific application scenarios
- 5701 detector calibration — providing the required engineering/service access during scheduled detector maintenance.
- System 57 commissioning — supporting controlled access to configuration and calibration functions.
- Legacy gas-detection maintenance — replacing a misplaced or damaged calibration key without replacing an electronic card.
- Maintenance-tool inventory — keeping a spare accessory available for technicians supporting multiple System 57 racks.
Transparency SOP: QA & Testing
Because the 05701-A-0550 is a mechanical/service accessory, its inspection procedure should be different from that used for an electronic control card.
- Part-number verification — confirm the marking or packaging identifies 05701-A-0550.
- Physical inspection — inspect the plug/key body for cracks, deformation, contamination, or mechanical damage.
- Contact inspection — check the electrical contact/interface area for oxidation, contamination, or bent contacts where applicable.
- Insertion test — verify correct engagement with the compatible System 57 interface without excessive force.
- Retention check — confirm that the accessory seats and remains mechanically secure.
- Packaging and traceability — document condition and identify the unit as New Surplus, Used, or Refurbished.
Honeywell currently lists the 05701-A-0550 as a System 57 accessory, while its historical product guide identifies it as a calibration plug.
For New Surplus stock, the important distinction is that “new” should mean unused original inventory—not merely a clean used key. A supplier should disclose the actual condition and warranty terms.

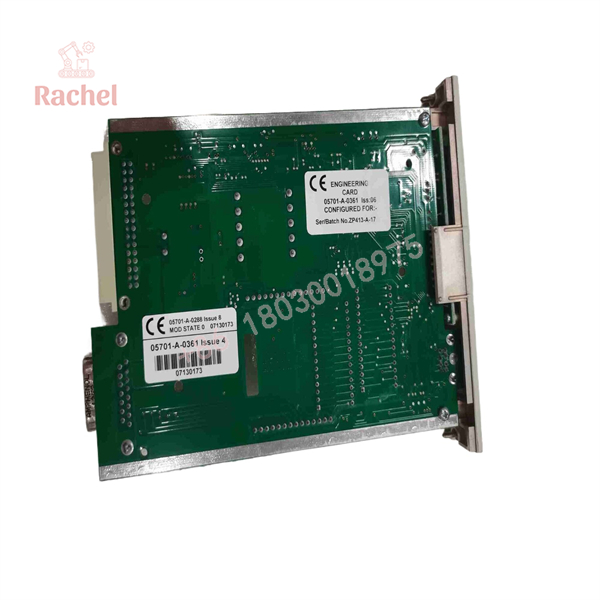

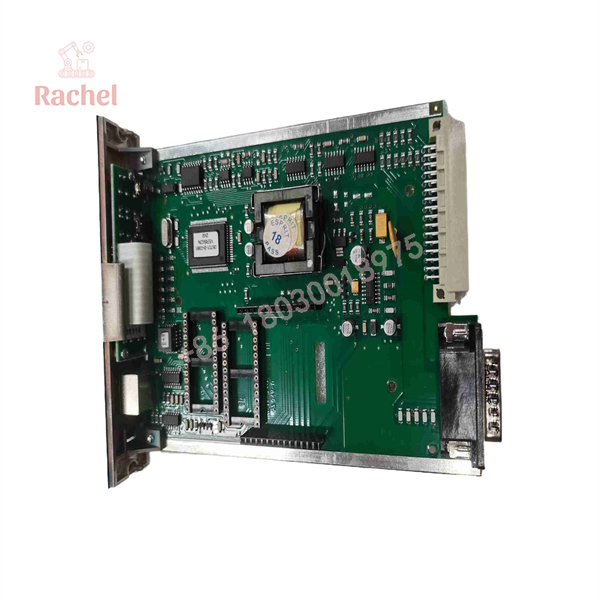

05701-A-0550
05701-A-0550
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying the wrong System 57 card.
The 05701-A-0550 is not a control card. Honeywell separately identifies the 05701-A-0301 as the single-channel 4–20 mA control card and 05701-A-0361 as the Engineering Card. The 0550 is the calibration/key accessory.
⚠️ Trap #2 — Trusting generic distributor specifications.
Some third-party pages incorrectly describe 05701-A-0550 as an I/O interface or control card and attach unrelated electrical specifications to it. Honeywell’s own documentation identifies it as a System 57 Calibration Plug, so that OEM designation should take precedence.
PRO TIP: When requesting a quotation, use the complete part number 05701-A-0550 and explicitly state that you need the System 57 Calibration Plug / Key Kit. This avoids confusion with nearby 05701-A-03xx control and interface cards.
⚠️ Trap #3 — Assuming every System 57 service accessory is interchangeable.
The System 57 family contains several engineering-interface components, including the Engineering Interface Kit, software, lead, Engineering Card, and Key Kit. Honeywell’s documentation assigns different part numbers to each. Verify the actual maintenance procedure before ordering.
Dynamic FAQ
What is Honeywell 05701-A-0550?
It is the System 57 Calibration Plug, also identified by Honeywell as a Key Kit associated with the control-card engineering/service functions.
Is 05701-A-0550 an electronic control card?
No. Honeywell identifies it as a calibration plug/service accessory, not an electronic I/O or control module.
Which Honeywell system uses 05701-A-0550?
It belongs to the System 57 gas-detection platform. Historical Honeywell documentation specifically lists the key kit in the 5701 control-system parts configuration, and Honeywell’s current product page continues to list the 05701-A-0550.
Does the 05701-A-0550 have 4–20 mA inputs?
No. The 0550 itself is not a 4–20 mA input module. The System 57 family contains separate 4–20 mA control and sensor-drive modules, including 05701-A-0301 and 05701-A-0283.
Is 05701-A-0550 still available?
Honeywell’s current System 57 accessory page still lists the 05701-A-0550, although actual stock availability depends on the supplier and region.
Can New Surplus 05701-A-0550 be supplied with a warranty?
Yes, if offered by the supplier. The quotation should clearly identify the condition as New Surplus / unused original inventory and state the warranty period. Since this is a small service accessory, photographs of the actual item and its original identification/packaging are useful for verifying condition before purchase.
