Description
Product Introduction

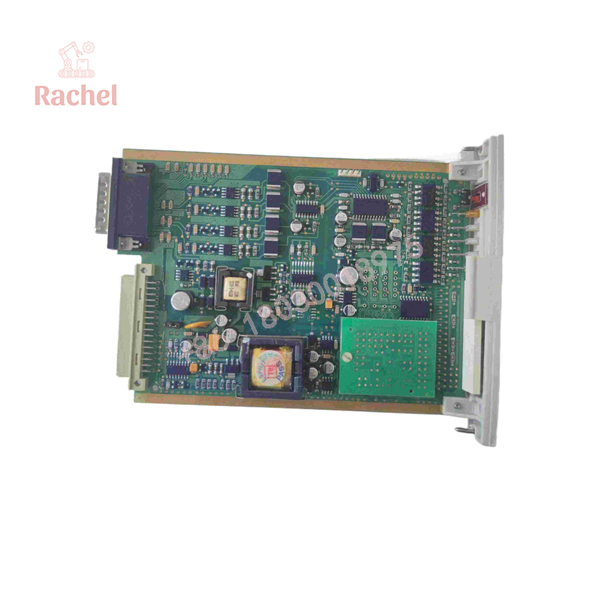

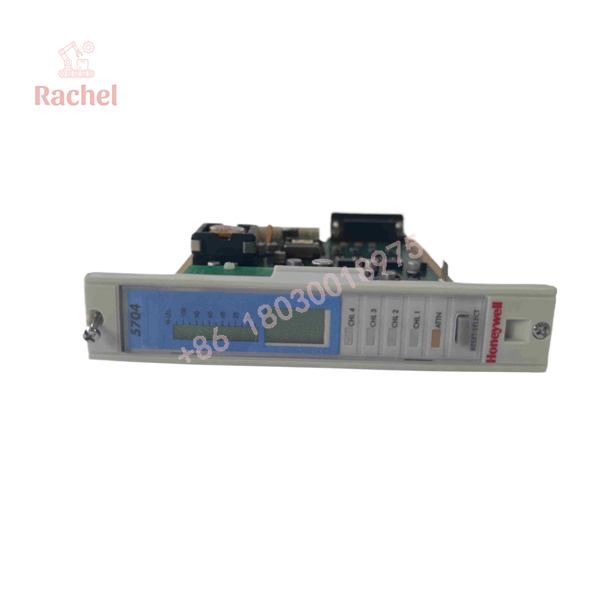

The Honeywell 05704-A-0145 is the master engineering interface module designed for four-channel 5704 sub-rack configurations within the System 57 gas safety architecture. Occupying the dedicated control slot in the rack frame, it provides the main serial bridge and diagnostic gateway needed to configure, monitor, and interrogate all installed 5704 multi-channel control cards.
Unlike standard input processing cards, the 05704-A-0145 operates as the administrative backbone of the 5704 rack assembly. It allows technicians to plug in software tools, adjust alarm trip logic, and pull real-time health metrics from connected gas channels without disrupting active safety loops running across the backplane.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Honeywell Analytics / Zellweger |
| Part Number | 05704-A-0145 |
| System Family | System 57 (5704 Four-Channel Series) |
| Module Type | Engineering Interface Card / Configuration Module |
| Interface Port | Front-panel DB9 serial connector (RS232/RS485) |
| Operating Voltage | 18V DC to 32V DC (Powered via sub-rack backplane) |
| Power Consumption | Approximately 1.8W nominal |
| Status Indicators | LED status indicators (Power, Bus Active, Comm Fault) |
| Mounting | 3U Rack Slot (Dedicated Master Slot) |
| Operating Temp | -10°C to +55°C (14°F to 131°F) |
Application Scenarios & The “Trench” Experience
A offshore platform gas detection panel lost all remote SCADA diagnostic data for a 5704 safety rack during a routine system audit. While the 4-channel gas cards were still actively reading LEL levels locally, technicians couldn’t connect via the front DB9 port to adjust channel alarm setpoints for a new sensor type. The issue was traced to a fried serial transceiver on the engineering card, likely hit by a high-voltage static discharge through an ungrounded laptop cable. Swapping out the damaged module for a pre-tested 05704-A-0145 restored local programming access and serial telemetry back to the main control room in under 15 minutes.
- Offshore Oil & Gas Racks – Centralized Safety Interrogation – Serves as the primary serial gateway for configuring 4-channel gas monitoring loops.
- Chemical Processing Facilities – Remote System Diagnostics – Streams digital rack status and channel fault logs to upper-level DCS/SCADA systems.
- Refinery Safety Cabinets – Field Maintenance Access Point – Allows field engineers to quickly connect laptops for zero/span calibration audits.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell System 57 racks.
- Inbound Mechanical & Visual Inspection: Check front-panel DB9 connector, mounting levers, edge contacts, and board components under optical magnification.
- Backplane Power-On Diagnostics: Seat the card in a live 5704 test chassis; verify power regulation, internal self-test routines, and LED startup sequences.
- Serial Communication Sweep: Establish a connection through the front DB9 port using Honeywell configuration software; run full read/write cycles across all memory registers.
- Backplane Bus Handshake Check: Query live 5704 control cards through the engineering interface to guarantee 100% packet transmission across the backplane bus.
- Anti-Static Packaging: Apply protective port caps, seal in an ESD shielding bag with desiccant, and ship in custom-fitted foam packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Check DIP switch settings before mounting: The 05704-A-0145 uses onboard DIP switches to set serial address and communication protocol parameters. Take a quick photo of the old card’s switches and replicate those positions on the replacement board before sliding it in.
- ❗ Use ESD grounding when connecting laptop cables: Static discharge through ungrounded RS232/RS485 programming cables is the number-one killer of these cards. Always ground yourself to the cabinet chassis before plugging into the front DB9 port.
- ⚠️ Verify slot positioning: The 05704-A-0145 must be installed into the designated master engineering slot on the 5704 backplane. Placing it in a standard 4-channel sensor slot will cause backplane bus contention errors.
- ❗ Never force the card into the backplane: If you feel resistance, stop. Check that the plastic card guide rails in the sub-rack are properly aligned; forcing the module can bend or break backplane edge connector pins.
05704-A-0145
05704-A-0145
Frequently Asked Questions (FAQ for Conversion)
Q: Is the 05704-A-0145 required for the 5704 gas cards to monitor sensors?
A: No. The individual 5704 four-channel gas cards operate independently to process sensor signals and trip local alarm relays. However, you need the 05704-A-0145 to modify card configurations, run software diagnostics, or output digital serial data.
Q: Can this engineering card be hot-swapped while the rack is powered?
A: Yes, the module can generally be removed or inserted live without shutting down power to the gas cards. Keep in mind that pulling the card will temporarily break any active serial communication links to connected DCS/SCADA systems.
Q: What is the difference between the 05704-A-0145 and single-channel 5701 engineering cards?
A: The 05704-A-0145 is pin-mapped and programmed specifically for the architecture of four-channel 5704 series sub-racks. Single-channel 5701 systems use dedicated 5701 engineering modules (such as the 05701-A-0326).
Q: Why buy a surplus or refurbished 05704-A-0145 instead of ordering from the OEM?
A: Honeywell has phased out portions of the legacy System 57 product family. OEM lead times for legacy hardware can be lengthy. Sourcing pre-tested, certified surplus stock provides immediate replacement availability to keep your plant safety systems fully supported.
Q: What warranty comes with this engineering card?
A: We back all 05704-A-0145 modules with a full 12-month replacement warranty. If the card experiences hardware or communication faults under normal operating conditions within one year, we issue an immediate replacement unit.
