Honeywell 51196653-100 5-Slot Power Supply Module

Description

Product Introduction & Engineering Value

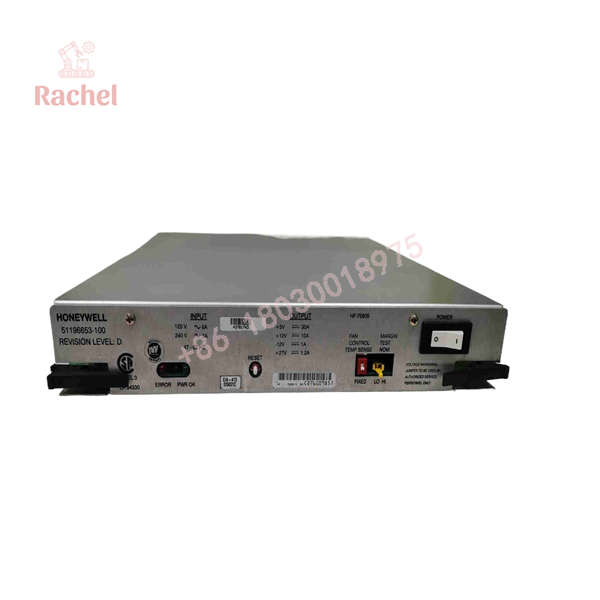

The Honeywell 51196653-100 is a five-slot power supply designed for the Honeywell TDC 3000 environment. It is particularly relevant to maintenance teams supporting legacy TDC 3000 systems where replacing the complete chassis or migrating the control platform is not practical. The documented electrical input is 120/240 VAC, 47–63 Hz, with a 3–6 A rating.

This version is also identified as the CE-compliant five-slot power supply and uses a standard 3-pin connector. Western Process Computers notes that an additional replacement cable is required when using it with an original five-slot chassis equipped with the older 8-pin power connector.

Technical Specifications

The 51201436-300 package is listed as including the 51196653-100 power supply plus two 51308094-300 cables.

Input and Connector Considerations

The CE version provides auto-ranging input from approximately 102 to 264 RMS VAC according to Western Process Computers. That source also identifies an internal/external clock jumper located on the PCB and notes that units are normally configured for an internal line-frequency clock unless an external clock is required for specific Sequence of Events applications.

This is an important commissioning detail. The power supply should not be treated as merely an AC-to-DC replacement block when it is being installed in an existing TDC 3000 node.

Field Application & The “Trench” Experience

A realistic maintenance case involves an operating TDC 3000 five-slot chassis that begins reporting unstable node behavior. The individual control modules appear healthy, but the supply voltage needs to be checked before replacing expensive controller hardware. Once the power supply is isolated as the fault source, the maintenance team identifies the installed unit as 51196653-100.

The replacement is compared against the original connector arrangement before installation. If the existing chassis uses the older 8-pin power connector, the technician does not simply force a connector adaptation; the appropriate replacement cable arrangement is verified first. Western Process Computers specifically warns that the 51196653-100’s standard 3-pin connector can require a replacement cable for an original 8-pin five-slot chassis.

After installation, the engineer checks the supply and connected chassis before returning the DCS node to normal operation.

Specific Application Scenarios

• Honeywell TDC 3000 five-slot chassis power replacement
• Legacy DCS node recovery following unstable or failed power conversion
• Planned maintenance for TDC 3000 installations where a spare chassis power supply is required
• Replacement of older non-CE-compliant power hardware with the applicable CE version, subject to system compatibility

51196653-100

Transparency SOP: QA & Testing

For new-surplus or refurbished Honeywell 51196653-100, the QA process should focus on both the power circuitry and the chassis interface.

1. Identification check
Verify the complete 51196653-100 part number, manufacturer label, revision information, and connector configuration.

2. Physical inspection
Inspect the enclosure, PCB, connector, fan, terminals, mounting hardware, and visible components for corrosion, impact damage, contamination, or previous repair.

3. Input verification
Confirm that the test setup is suitable for the applicable AC input range before energizing the unit.

4. Output testing
Measure the relevant output rails under the manufacturer’s specified test conditions. Do not infer acceptable output limits from a generic power-supply test.

5. Fan and thermal check
The CE version uses temperature- and +5 V load-controlled fan operation, so fan behavior should be evaluated under appropriate operating conditions rather than treating continuous fan operation as mandatory.

6. System-level test
Where possible, test the supply in a compatible TDC 3000 five-slot chassis and verify stable operation of the connected node.

7. Final QA record
Record the actual unit condition, part number, revision, test scope, and any connector or cable supplied with the unit.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — The 3-pin versus 8-pin issue is real.
The 51196653-100 uses a standard 3-pin connector, while some original five-slot chassis use an 8-pin power connector. A suitable cable arrangement must be verified before installation.

⚠️ Trap #2 — Do not confuse 51196653-100 with 51195066-100.
Western Process Computers identifies 51195066-100 as the non-CE-compliant power supply, while 51196653-100 is the CE-compliant version. These numbers should not be casually substituted.

PRO TIP: Before removing the old supply, photograph its connector, nameplate, cable routing, and chassis connection. This takes minutes and can eliminate hours of troubleshooting during reinstallation.

⚠️ Trap #3 — Check the clock jumper when SOE is involved.
The 51196653-100 has an INT/EXT clock jumper on the PCB. Western Process Computers notes that Sequence of Events applications may require external-clock configuration, while ordinary nodes are normally configured for internal line-frequency clock operation.

⚠️ Trap #4 — Do not assume every seller’s product description is accurate.
Some current listings describe this number simply as a power supply, while others identify the TDC 3000 five-slot application and detailed electrical characteristics. For procurement, the physical nameplate and Honeywell system documentation should take precedence over a generic marketplace description.

FAQ

1. What is Honeywell 51196653-100?

It is a Honeywell TDC 3000 five-slot file power supply used to provide power within a five-slot DCS chassis.

2. What is the input voltage of 51196653-100?

Published industrial references identify the unit as a 120/240 VAC power supply with 47–63 Hz input frequency. The CE version is also described as having an auto-ranging input of approximately 102–264 VAC RMS.

3. How many slots does this power supply support?

The part is specifically identified as a five-slot file power supply for the Honeywell TDC 3000 system.

4. Does 51196653-100 use a 3-pin connector?

Yes. The CE-compliant version is described with a standard 3-pin connector. When used with an original five-slot chassis having an 8-pin power connector, a replacement cable is required according to Western Process Computers.

5. Is 51196653-100 discontinued?

Radwell identifies the part as discontinued by the manufacturer. This makes tested surplus and refurbished inventory relevant for maintaining legacy TDC 3000 installations.

6. Is 51196653-100 available as new surplus?

Inventory listings currently show the part in new or unused categories, but condition varies by supplier. For procurement, request confirmation of whether the individual unit is new surplus, unused original packaging, repackaged unused, or refurbished.

7. What is the replacement package 51201436-300?

DCS Center identifies 51201436-300 as a package containing the 51196653-100 power supply and two 51308094-300 cables. It should therefore be distinguished from the 51196653-100 power-supply part number itself.

8. What warranty is available?

Warranty depends on the supplier and condition. For example, Radwell states a two-year warranty on its listed units, while Western Process Computers states a minimum one-year replacement policy. These are supplier warranties, not necessarily the original Honeywell factory warranty.
