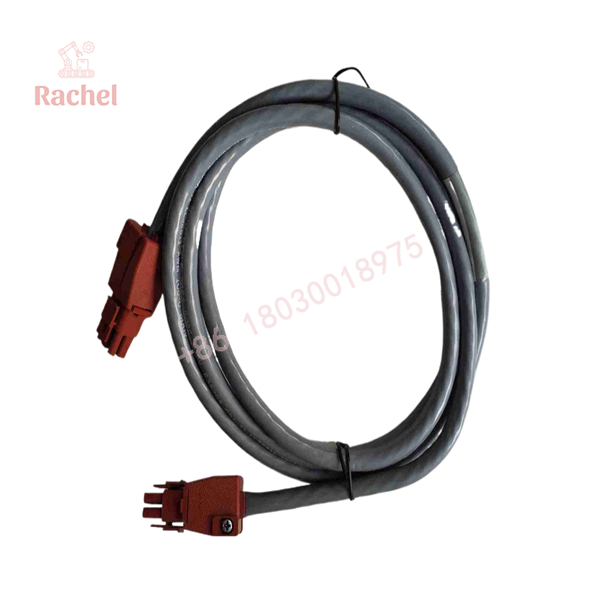

The Honeywell 51201397-002 is a high-reliability system power cable assembly designed for Honeywell Distributed Control System (DCS) architectures, including TDC 3000 and Experion process control cabinets. Engineered to route DC power from chassis power supply units directly to system backplanes and I/O card racks, this pre-formed harness maintains steady, low-resistance power delivery across critical control hardware.
Built with heavy-gauge copper conductors and polarized connector housings, the 51201397-002 prevents loose power contacts and minimizes voltage drop under full chassis loads. Replacing damaged or degraded power cables ensures clean power distribution, resolves intermittent controller resets, and maintains continuous process reliability across industrial operations.
Key Technical Specifications
| Parameter | Value / Specification |
| Manufacturer | Honeywell Process Solutions |
| Part Number | 51201397-002 |
| System Compatibility | Honeywell TDC 3000 / Experion System Cabinets |
| Assembly Type | Multi-Conductor DC Power Interconnect Cable |
| Connector Type | Keyed Pin-and-Socket Heavy-Duty Housings |
| Conductor Rating | High-Current Stranded Industrial Copper |
| Jacket Material | Flame-Retardant Industrial PVC Insulation |
| Operating Temperature | -20°C to +80°C (-4°F to 176°F) |
Application Scenarios & The “Trench” Experience
Picture this: During routine maintenance or a cabinet expansion on a continuous chemical processing line, a technician notices discolored connector insulation on an internal power feed harness. Ohmmeter checks reveal high contact resistance at the pin crimps, causing localized heating and a subtle voltage drop on the card rack backplane.
In our process control hardware maintenance experience, keeping an OEM Honeywell 51201397-002 cable assembly on hand allows instrument crews to swap out degraded cabling immediately. Installing a fresh, fully pin-tested power harness restores proper DC voltage levels at the rack backplane, eliminates thermal risks inside the cabinet, and ensures reliable operation across all installed I/O modules.
- Oil Refineries & Petrochemical Plants – Internal cabinet DC power routing for critical safety and process control racks.
- Power Generation Facilities – Heavy-duty power interconnections for turbine and boiler control hardware.
- Pulp & Paper Mills – Reliable power distribution in harsh, vibration-prone industrial environments.
51201397-002
Transparency SOP: Quality Assurance & Testing
Every Honeywell 51201397-002 cable assembly undergoes a thorough inspection and verification routine prior to dispatch:
- Visual & Structural Audit: Inspect wire insulation along the entire length for abrasions, cracking, or heat stress; check connector bodies for cracked locking tabs.
- Contact Pin Verification: Examine terminal pins and sockets under magnification to confirm proper crimp retention, zero oxidation, and clean contact surfaces.
- Continuity & Resistance Testing: Perform 100% pin-to-pin point continuity tests to verify zero open circuits or high-resistance solder/crimp joins.
- Hi-Pot Insulation Test: Apply high-voltage insulation testing between adjacent conductors to confirm dielectric integrity with zero leakage paths.
- ESD Cleaning & Protective Packaging: Clean connector shells and double-seal the cable inside static-shielding bags with moisture desiccant.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ De-Energize Cabinet Power Before Removal! Always power down the corresponding power supply module before disconnecting DC power cables to prevent arcing and pin pitting on the connector housings.
- ❗ Confirm Connector Keying and Latching: Ensure the positive locking clips on both ends snap fully into place when installing. A partially seated connector creates high contact resistance and can cause intermittent power loss under vibration.
- ⚠️ Avoid Over-Tight Cable Ties: When routing the 51201397-002 inside tight cabinet raceways, do not over-tighten zip ties. Excessive tension can pinch wire insulation and stress the crimped pins inside the connector shell.
- ❗ Inspect Receiving Headers on Backplane: Always check the mating male pin headers on the power supply or backplane board for heat discoloration before plugging in the new cable. Plugs plugged into heat-damaged headers will fail prematurely. Trust me.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Honeywell 51201397-002 cable compatible with both TDC 3000 and Experion cabinets? A: Yes, this standardized power interconnect cable is used across multiple generations of Honeywell DCS rack and cabinet configurations.
Q: What is the main cause of failure for internal power cables like the 51201397-002? A: Contact pin oxidation and thermal degradation from high current draw or loose connector latching are the primary causes over long operating lifecycles.
Q: What warranty coverage comes with this surplus cable assembly? A: We back all tested surplus and refurbished Honeywell cabling with a full 12-month operational replacement warranty.
Q: How quickly can this cable be shipped for urgent repairs? A: We offer same-day dispatch and expedited express air freight (DHL/FedEx/UPS) to industrial plants worldwide.
