Honeywell 51301874-100 16-Point Thermocouple MUX Board

Description

Product Introduction & Engineering Value

The 51301874-100 is a legacy Honeywell measurement-interface board designed to multiplex thermocouple signals within a TDC2000 Low Energy PIU architecture. Its 16 thermocouple input channels make it relevant to systems where multiple temperature measurement points must be routed through a centralized process-control interface.

For maintenance teams supporting installed TDC2000 equipment, the exact part number matters. This is not simply a generic analog input card: the documented function is specifically a thermocouple MUX logic board containing reed relays. Replacement should therefore be based on the existing PIU configuration and board identification rather than on channel count alone.

Technical Specifications

The 1.55 lb weight and discontinued status are reported by Radwell; the board function, TDC2000 application, Low Energy PIU designation, reed relays, and 16 thermocouple inputs are also independently listed by industrial automation suppliers.

Important: Publicly available sources reviewed for this part do not provide enough verified information to state the supported thermocouple types, input temperature ranges, excitation requirements, relay ratings, or detailed backplane interface specifications. Those values should be confirmed from the site’s original Honeywell documentation before being used as engineering design limits.

Field Application & Trench Experience

A typical maintenance situation for this type of board is an aging TDC2000 installation where one temperature measurement group begins showing intermittent or inconsistent readings. The first reaction is often to investigate the field thermocouples, terminal wiring, or controller. However, when several channels associated with the same multiplexing section show related symptoms, the MUX board becomes a logical point of investigation.

For the 51301874-100, the presence of reed relays is particularly important. A technician should not treat the board as a conventional modern solid-state analog input module. Contact condition, channel selection behavior, contamination, aging, and connector condition can all become relevant during troubleshooting. The documented 16-channel architecture also makes channel-by-channel verification practical during maintenance.

Typical Application Scenarios

• Legacy TDC2000 temperature monitoring — multiplexing multiple thermocouple measurement points through the Low Energy PIU.
• Process temperature monitoring — useful where installed TDC2000 hardware remains part of a plant’s control architecture.
• Maintenance replacement stock — appropriate as a form-fit-function spare when the installed board is confirmed as 51301874-100.

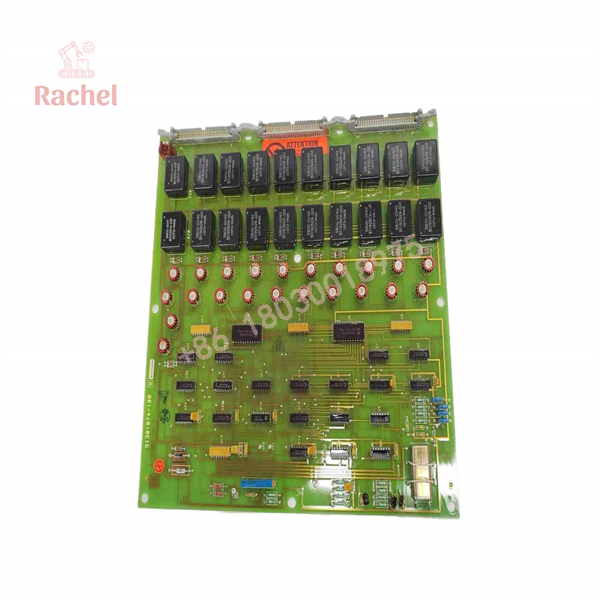

51301874-100

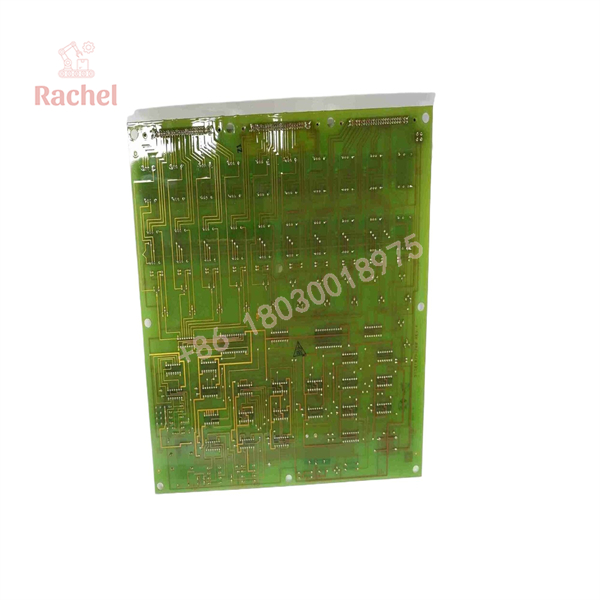

51301874-100

QA & Testing SOP

For a New Surplus or refurbished 51301874-100, a sensible inspection sequence is:

1. Part-number verification
   Confirm the PCB marking against 51301874-100 / 51301874100 before functional testing.
2. Physical inspection
   Check the PCB, connectors, relay area, component bodies, solder joints, and edge contacts for corrosion, contamination, mechanical damage, or unauthorized modification.
3. Relay inspection
   Because the board contains reed relays, verify switching behavior rather than relying solely on visual inspection.
4. Channel verification
   Where suitable test equipment and documentation are available, verify all 16 thermocouple multiplexing channels individually.
5. System-level verification
   If the board is installed into a TDC2000 Low Energy PIU, confirm channel selection and temperature-signal behavior against the site’s approved maintenance procedure.
6. Traceability record
   Record the exact part number, condition, test date, test method, and any replacement components.

Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t substitute by channel count alone.

A 16-channel thermocouple input card is not automatically equivalent to the 51301874-100. The documented architecture specifically identifies this part as a Thermocouple MUX Logic Board with reed relays for a TDC2000 Low Energy PIU.

⚠️ Trap #2 — Don’t confuse the MUX board with a conventional analog input module.

The signal path and switching function are different. Before substitution, verify the PIU position, board designation, connector arrangement, and system documentation.

PRO TIP: When ordering a replacement, provide the complete 51301874-100 number rather than only describing it as a “Honeywell thermocouple board.” That distinction reduces the risk of receiving a different Honeywell temperature-input or MUX assembly.

FAQ

What is Honeywell 51301874-100?

It is a Honeywell Thermocouple MUX Logic Board associated with the TDC2000 Low Energy PIU. Available documentation identifies 16 thermocouple inputs and reed relays.

How many thermocouple inputs does it support?

The available product documentation specifies 16 thermocouple inputs.

What system uses the 51301874-100?

The board is identified for the Honeywell TDC2000 system and specifically the Low Energy PIU.

Is 51301874-100 still manufactured?

Radwell identifies the part as discontinued by the manufacturer. This makes installed-base spare management particularly relevant for TDC2000 systems still in service.

Is a New Surplus 51301874-100 necessarily refurbished?

No. “New Surplus” generally refers to unused inventory outside the manufacturer’s normal current production channel. It should not automatically be described as refurbished or factory-new. The actual condition, packaging, labels, and traceability should be verified with the supplier.

What warranty applies?

Warranty depends on the supplier and condition offered. For example, Radwell lists its own warranty separately and explicitly notes that the factory warranty may not apply. A supplier should therefore state the actual warranty accompanying the specific 51301874-100 unit being offered.

Is 51301874-100 suitable as a direct replacement?

It can be considered when the installed board is specifically identified as 51301874-100 and the TDC2000 Low Energy PIU configuration is compatible. Do not assume that another Honeywell thermocouple or MUX board is interchangeable without checking the system documentation.
