Honeywell 51304485-100 Digital Input IOP 32 Channel

Description

Product Introduction & Engineering Value

The Honeywell 51304485-100 is a 32-channel digital input processor intended for discrete field-signal acquisition. Its associated FTA determines the applicable field-input voltage, with documented configurations for 24 VDC, 120 VAC, and 240 VAC signals.

For maintenance teams supporting installed Honeywell process-control hardware, the important point is the complete I/O chain: IOP + FTA + field wiring + controller configuration. Replacing the board alone does not guarantee a valid signal path, so the FTA and existing termination arrangement should be checked before installation.

Technical Specifications

Honeywell’s planning documentation specifically maps MU-PDIX02 → 51304485-100 and distinguishes it from MU-PDIX02 → 51304485-150, the conformally coated version.

Compatible FTA families documented for the 51304485-100 include the MU-TDIA/MU-TDID families, with the exact FTA selected according to the field signal voltage and terminal arrangement.

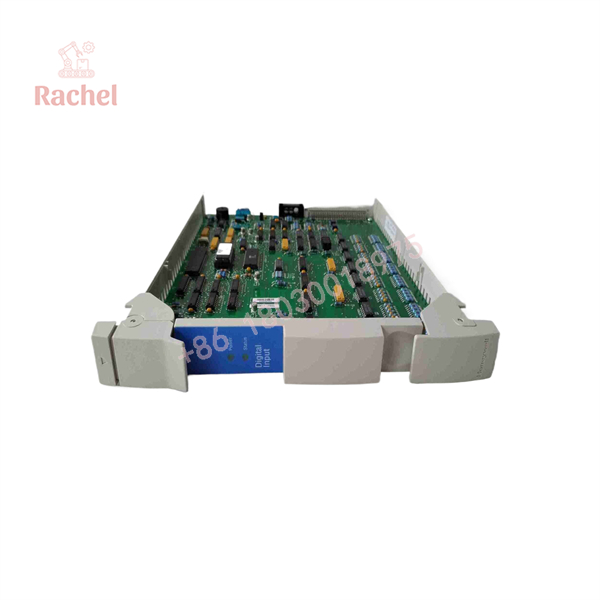

51304485-100

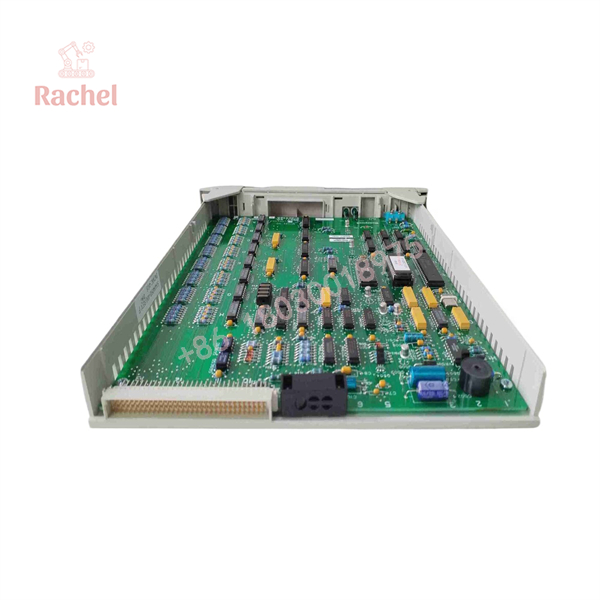

51304485-100

Field Application & the “Trench” Experience

A realistic maintenance scenario looks like this: a plant has one digital input point that refuses to register a limit-switch transition during a scheduled shutdown. The technician verifies the field device and wiring first, then checks the FTA and IOP channel. If the fault follows the I/O processor rather than the field wiring, replacing the MU-PDIX02 / 51304485-100 can restore the 32-channel input section without redesigning the field termination.

The module is particularly relevant to applications such as:

1. Boiler burner management status monitoring — permissive contacts, valve-position feedback, and equipment status.
2. Compressor train auxiliary status acquisition — motor contactors, lube-oil system permissives, and local/remote indications.
3. Process-unit interlock monitoring — discrete valve feedback, pump running status, alarm contacts, and equipment permissives.

The module is a digital input processor, not a generic 32-channel PLC input card. Its field compatibility depends on the selected FTA and the Honeywell control-system architecture.

QA & Testing SOP

For replacement inventory, a sensible acceptance procedure for 51304485-100 should include:

1. Visual inspection
Check the PCB, connectors, component condition, identification label, part number, and hardware revision for physical damage or unauthorized modification.

2. Identity verification
Confirm that the board is actually marked 51304485-100 / MU-PDIX02. Do not substitute a visually similar Honeywell DI IOP simply because it has the same general channel count.

3. Functional testing
Where the test setup permits, verify the processor with an appropriate Honeywell I/O test configuration and compatible FTA. Check representative digital input transitions across the available channels.

4. Documentation check
For New Surplus stock, verify the original manufacturer markings and packaging condition. For refurbished stock, the seller should be able to state what functional testing was performed rather than simply describing the board as “tested.”

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not confuse 51304485-100 with 51304485-150.
Both correspond to the MU-PDIX02 DI IOP family, but 51304485-150 is the conformally coated version. If the installed system specification requires conformal coating, the suffix matters.

⚠️ Trap #2 — The FTA determines the field-side voltage arrangement.
A 51304485-100 paired with the wrong FTA can create a wiring and signal-compatibility problem. The documented ranges differ substantially between 24 VDC, 120 VAC, and 240 VAC configurations. Verify the existing FTA before moving wires.

⚠️ Trap #3 — Do not assume redundancy.
Available Honeywell reference material identifies the 51304485-100 as a DI IOP for which redundancy is not supported. If the existing application has redundant signal architecture, verify exactly how that redundancy is implemented before replacing the board.

PRO TIP: Photograph the existing IOP and FTA labels before removal. On legacy Honeywell installations, the FTA part number can be just as important as the IOP part number when determining whether a replacement will work without rewiring.

Dynamic FAQ

Is Honeywell 51304485-100 a digital input module?

Yes. 51304485-100 corresponds to the MU-PDIX02 Digital Input IOP, with 32 digital input channels. Honeywell documentation lists it specifically as a DI IOP.

What is the difference between 51304485-100 and 51304485-150?

Both are associated with the MU-PDIX02 32-channel DI IOP. 51304485-100 is the non-conformally coated version, while 51304485-150 is the conformally coated version.

Can 51304485-100 handle 24 VDC digital inputs?

Yes, when used with the appropriate 24 VDC DI FTA. The documented input range is 20–30 VDC for the 24 VDC FTA configuration.

Can the same IOP be used for 120 VAC or 240 VAC inputs?

The documented Honeywell architecture supports the corresponding AC input configurations through the appropriate FTA: 90–132 VAC RMS for 120 VAC and 180–264 VAC RMS for 240 VAC. Verify the installed FTA before replacement.

Is 51304485-100 New Surplus?

That depends on the individual unit being offered. Part number identification alone does not prove New Surplus condition. A legitimate New Surplus unit should have consistent Honeywell identification, appropriate packaging/history where available, and pass functional inspection. Do not treat a refurbished unit as New Surplus merely because the PCB is unused-looking.

What warranty should I expect when purchasing a replacement?

Warranty terms are seller-specific. For an industrial spare part such as 51304485-100, confirm the warranty period, DOA policy, test coverage, and whether the warranty covers replacement rather than repair before purchasing. Some specialist Honeywell suppliers advertise one-year replacement policies, but that is a supplier policy rather than a Honeywell specification.
