Honeywell 51304511-200 TDC 3000 NIM Network Interface Module

Description

Product Introduction

The Honeywell 51304511-200 serves as a core Network Interface Module (NIM) assembly within legacy Honeywell TDC 3000 Distributed Control Systems (DCS). Engineered to bridge communication between the Local Control Network (LCN) and the Universal Control Network (UCN), this card facilitates real-time data streaming across Process Manager (PM), Advanced Process Manager (APM), and High-Performance Process Manager (HPM) controllers.

Unlike basic I/O cards, the 51304511-200 handles high-throughput token-passing routines across redundant coaxial highways. It offloads critical network management from the primary controller CPUs, keeping memory access deterministic during heavy alarm surges. If this card drops offline, your operator console loses sight of the downstream UCN drops instantly.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 2:15 AM on a muggy July night. Your refinery’s hydrotreater unit drops alarm coverage on three critical reactor bed temperature loops. The console spits out a persistent “NIM NODE OFF LINE” error. The process is running blind, and the shift supervisor is already talking about emergency trip procedures that cost $150,000 an hour. You track down the rack room, open the TDC 3000 cabinet, and find red FAIL LEDs glaring on the 51304511-200 card. The token-passing transceiver bit the dust. Sliding a clean, pre-tested replacement card into the rack gets the LCN handshake back online in under three minutes, averting a cold plant shutdown.

Primary Industrial Applications:

• Continuous Chemical Processing: Maintains fast controller-to-HMIs telemetry across large-scale ethylene and ammonia production units.
• Petroleum Refining: Handles real-time loop synchronization between HPM controllers and operator stations on crude distillation units.
• Pulp & Paper Manufacturing: Executes continuous data transfers for paper machine line-speed control and boiler management systems.

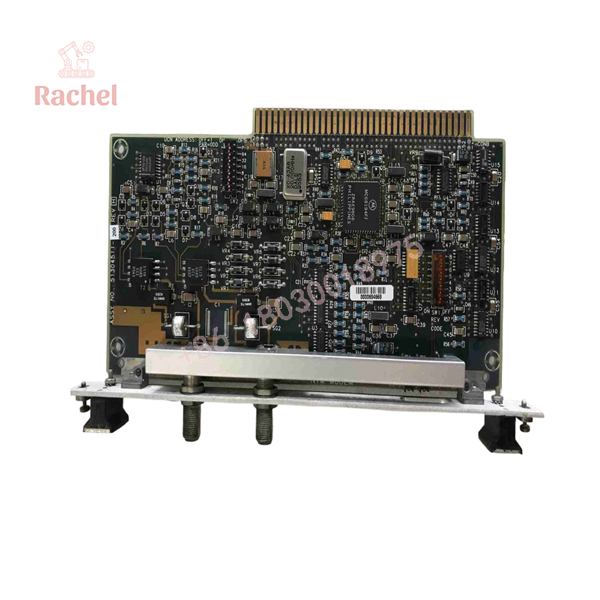

51304511-200

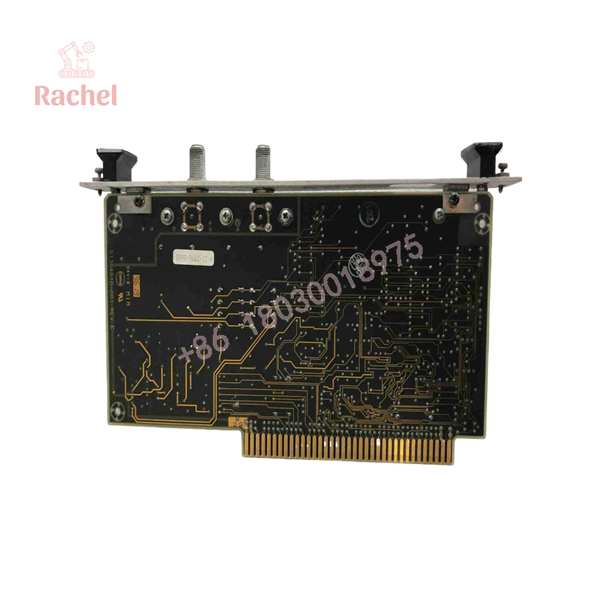

51304511-200

Transparency SOP: Quality Assurance & Testing

We treat legacy Honeywell hardware with extreme care. Every 51304511-200 module undergoes rigorous bench testing before it enters sealed static shielding:

1. Inbound Visual Inspection: We verify OEM traces, PCB layers, edge connectors, and BNC physical solder joints under magnification to detect cold solder joints or component stress.
2. Live Test Rack Benchtop Boot: The card is installed into an active Honeywell TDC 3000 NIM card cage powered by original 51190510 power supplies.
3. Communication Loop Handshake: We establish active 5 Mbps LCN token-passing routines, forcing channel switchovers between A and B lines to confirm dual-redundancy circuitry operates properly.
4. Thermal Stress Soak: The module runs under full network load in a warm test enclosure for a minimum of 8 hours to catch intermittent component failures.
5. Anti-Static Packaging: Cleaned edge contacts are treated with isopropyl alcohol, fitted with protective edge covers, and sealed in thick ESD-shielded bags with fresh desiccant.

The Veteran’s Tech Trap Guide

• ⚠️ Watch Your Node Address Jumpers: Don’t swap this module blindly! The replacement card must have its node address jumpers or DIP switches matched exactly to the card coming out. If you set a duplicate node address on the LCN, you can pull down adjacent nodes on the entire coaxial trunk line.
• ❗ Inspect the BNC Cable Tension: The rear coaxial BNC connections on the backplane assembly can break internal solder pads if cables are pulled too tight or stripped improperly. Always support the cable harness when twist-locking connectors onto the card.
• ⚠️ Grounding and ESD Precautions: These older CMOS-heavy boards destroy easily under static charge. Wear an earth-grounded wrist strap before touching the PCB handles. Never set the card down on raw metal rack doors or unshielded bench surfaces.
• ❗ Backplane Alignment: The multi-pin backplane connectors require straight-in insertion pressure. Angle insertion bends the gold pins on the rack backplane, turning a simple 5-minute module swap into a multi-day cabinet repair nightmare.

Frequently Asked Questions

Q: Can I hot-swap the 51304511-200 card while the node chassis is powered on?

A: No. Do not pull or insert this module under power unless the specific node chassis and rack slot are explicitly rated for live extraction in your system manual. Unseating this card under full load can create voltage transients that damage adjacent cards or corrupt active LCN token traffic.

Q: What is the difference between the 51304511-200 and earlier -100 revisions?

A: The -200 revision incorporates updated onboard line transceiver components and improved power-filtering capacitors compared to the older -100 series. It offers better heat dissipation and improved noise immunity across long coaxial cable runs.

Q: Is this card original Honeywell stock or a third-party clone?

A: It is 100% genuine Honeywell original hardware. Third-party clones do not exist for complex TDC 3000 LCN communication silicon. Our inventory consists of fully tested OEM surplus and professionally reconditioned units.

Q: Does the 51304511-200 card require firmware flashing before installation?

A: No software flashing is required on the card itself. Firmware routines are loaded dynamically from the TDC 3000 system history module or software image upon node boot up. Just set the physical hardware jumpers correctly, seat the module, and initiate a node reload.

Q: What warranty covers this surplus hardware?

A: Every 51304511-200 module comes backed by a full 12-month operational replacement warranty. If the card fails during normal operating conditions within a year, we replace it directly from stock.
