Honeywell 51309218-175 PM / APM / HPM RTD Field Termination Board

Description

Product Introduction

The Honeywell 51309218-175 (model designation MC-TAMR03) is a low-level analog Field Termination Assembly (FTA) engineered for TDC 3000 I/O subsystems. It provides physical field wiring connection points for RTD (Resistance Temperature Detector) and thermocouple instrumentation, routing microvolt-level sensor signals directly to the Low Level Analog Input Multiplexer (LLMUX) processor cards within PM, APM, or HPM controller racks.

In continuous process plants, low-level signal integrity is everything. The 51309218-175 utilizes cold-junction compensation circuitry alongside isolation barriers to eliminate electrical ground loops before signals reach the I/O bus. By terminating field leads on a dedicated, conformal-coated assembly rather than directly on processor cards, it isolates sensitive rack electronics from field surges and environmental corrosion.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a cracker unit in an olefin plant at 3:00 AM during a heavy downpour. Channel 7 through 12 temperature readings on the secondary distillation column start drifting erratically, reading wild spike values from +150°C to off-scale high. The operator receives nuisance alarm storms, threatening a unit trip. You trace the fault down to a corroded 51309218-175 FTA board in a field marshalling cabinet. Moisture crept past a worn cabinet seal, corroding the screw terminal block traces and throwing off the millivolt bridge calculations. Swapping the damaged 51309218-175 board for a clean, tested spare stabilizes the cold-junction compensation instantly, keeping the unit running safely without dropping the process.

Primary Industrial Applications:

• Petrochemical Cracking Columns: Multiplexes dozens of RTD inputs measuring tray and bed temperatures along high-pressure fractionators.
• Power Generation Facilities: Reads critical stator and bearing temperature sensors on steam turbines and large high-voltage motors.
• Glass & Steel Manufacturing: Captures precise thermocouple data from high-temperature furnaces and annealing lehrs.

Transparency SOP: Quality Assurance & Testing

We test legacy Honeywell field hardware thoroughly before sending it out to plant floors:

1. Visual & Structural Inspection: Check screw terminal block integrity, verify traces under magnification, and confirm conformal coating covers all surface components without flaking.
2. Cold Junction Sensor Bench Check: Inspect onboard cold-junction reference diodes/resistors to confirm ambient reference reading precision within OEM tolerances.
3. Point-to-Point Resistance Audits: Verify circuit continuity and trace isolation across all 16 channels to ensure zero cross-talk between signal legs.
4. Active Bus Handshake Test: Connect the 51309218-175 via a 50-pin interface cable to a live LLMUX IOP card in our TDC 3000 test rig to verify full system recognition and data transfer.
5. Cleanroom Handling & Packaging: Wipe edge connectors with isopropyl alcohol, wrap in anti-static protective film, and package securely in ESD-safe foam enclosures.

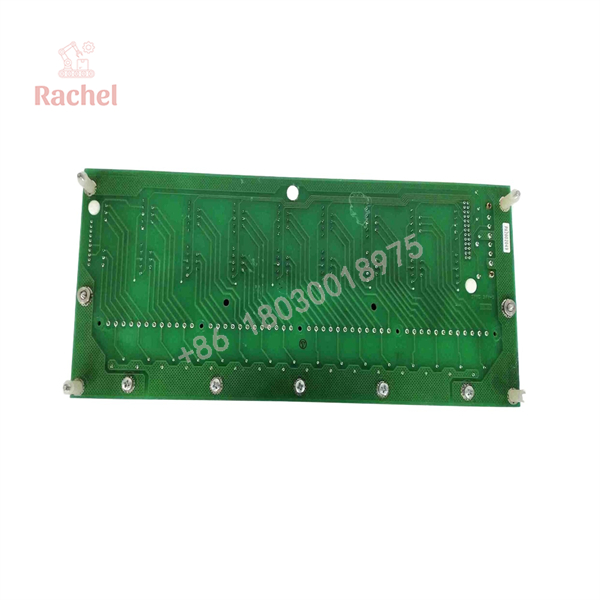

51309218-175

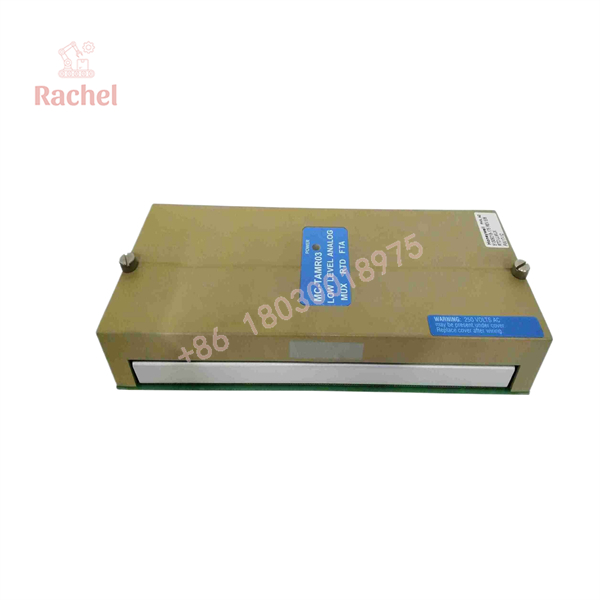

51309218-175

The Veteran’s Tech Trap Guide

• ⚠️ Match Your Cable Shielding: Do not leave the field drain wire floating or ground it at both ends! Low-level RTD signals carried to the 51309218-175 are vulnerable to 60Hz hum and VFD noise. Ground shield wires only at the designated FTA chassis terminal screw.
• ❗ Cold-Junction Calibration Shifts: If replacing an MC-TAMR03 board used for thermocouple loops, allow the replacement board to reach thermal equilibrium inside the marshalling cabinet for 15–20 minutes before performing signal recalibration or zero checks.
• ⚠️ Over-Torquing Terminal Screws: The terminal strip on these boards can crack at the solder joint if field technicians use oversized screwdrivers or excessive torque. Hand-tighten field leads securely—never use power screwdrivers on these legacy blocks.
• ❗ Verify Jumper Configurations: Ensure onboard hardware jumpers (used to select 3-wire RTD vs 4-wire RTD or Thermocouple modes) match the old board exactly before plugging in the 50-pin IOP cable.

Frequently Asked Questions

Q: Is the 51309218-175 FTA hot-swappable in a live system?

A: You can disconnect and replace the 51309218-175 field termination assembly without powering down the entire controller rack, provided you put the associated 16 points into manual/out-of-service in the DCS software first to avoid process interlocks or spurious alarms.

Q: What is the main difference between model numbers like MC-TAMR03 and part number 51309218-175?

A: MC-TAMR03 is Honeywell’s functional model designation (Analog Input Multiplexer RTD FTA), whereas 51309218-175 is the precise manufacturing assembly part number printed directly on the green circuit board PCB.

Q: Does this board support 4-20mA current loop inputs?

A: No. The 51309218-175 MC-TAMR03 is designed specifically for low-level millivolt, RTD, and thermocouple direct inputs. High-level 4-20mA signals require a standard High-Level Analog Input (HLAI) FTA such as MC-TAIH12 or MC-TAIH52.

Q: Can I use this unit in high-humidity or corrosive plant environments?

A: Yes. The 51309218-175 comes factory conformal-coated to resist airborne chemical contaminants and humidity typically found in chemical plants and refineries.

Q: What warranty comes with this surplus 51309218-175 board?

A: Every 51309218-175 unit includes a standard 12-month full replacement warranty. If a channel fails under normal operating conditions within one year of delivery, we ship a replacement immediately from our stock.
