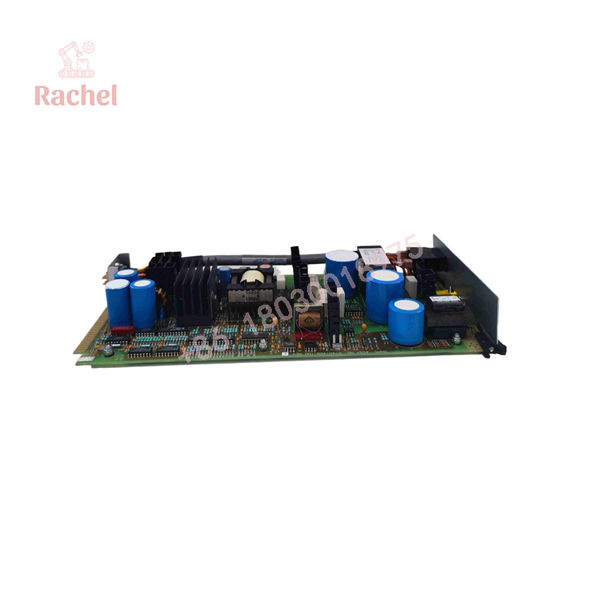

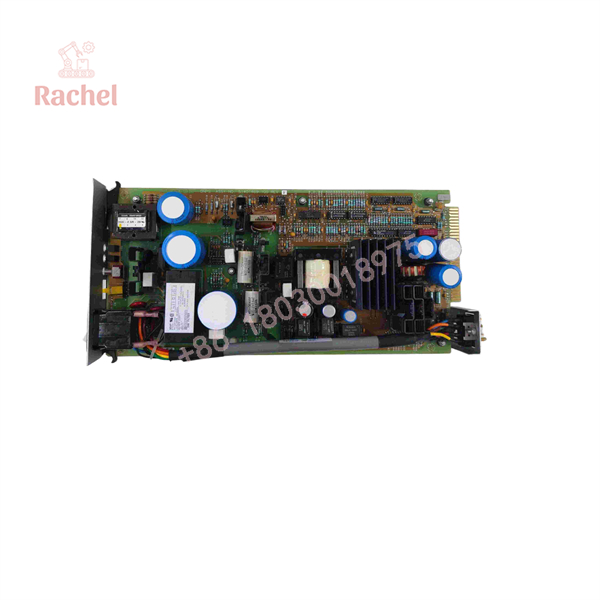

Honeywell 51401497-100 LCN Interface Board

Description

Product Introduction & Engineering Value

The Honeywell 51401497-100 is an LCN interface board associated with Honeywell’s TDC 3000-era control hardware. Its function is centered on the physical LCN network connection rather than process signal conditioning, so it should be evaluated as part of the complete LCN node architecture.

For a replacement, the board’s exact part number and A/B network designation deserve more attention than generic electrical specifications. The associated rear interface, node configuration, connectors, and LCN cabling should all be checked before the original board is removed.

Technical Specifications

Important identification note

Do not automatically substitute 51304542-100 for 51401497-100 simply because both are associated with KLCN_CA/LCN A terminology. Honeywell used multiple hardware generations and part-number schemes within its LCN architecture. The installed system’s documentation and board markings should determine the correct replacement.

That distinction is especially important when supporting older TDC 3000 installations where hardware revisions may not be interchangeable.

Field Application & the “Trench” Experience

Consider a plant with an older TDC 3000 LCN node that begins dropping communication intermittently. The control application itself remains intact, but the node repeatedly loses its LCN connection. A technician checks the network cable, connector seating, and neighboring nodes before isolating the node hardware. The installed interface board is identified as 51401497-100.

The replacement is then handled as an LCN hardware change rather than an ordinary I/O-card swap. The technician records the original board number, connector arrangement, node position, and A/B network assignment before installation. After replacement, LCN communication is verified at the node level before the equipment is returned to normal operation.

Specific application scenarios

• Legacy TDC 3000 LCN node maintenance — replacement of aging communication-interface hardware.
• Process-control node communication troubleshooting — isolation of intermittent LCN hardware faults.
• Control-system lifecycle support — maintaining installed Honeywell systems where original boards are no longer routinely manufactured.
• LCN network infrastructure refurbishment — replacing suspect interface hardware during a planned shutdown.

51401497-100

51401497-100

QA & Testing SOP

A proper receiving inspection for 51401497-100 should cover four areas:

Part identity: Confirm the complete 51401497-100 number on the board label. Do not rely on a seller’s abbreviated description.

Physical condition: Inspect connectors, edge contacts, PCB surfaces, mounting points, labels, and components for corrosion, contamination, cracked solder joints, or evidence of previous repair.

Architecture check: Confirm that the board corresponds to the required LCN A-side configuration and that the related node hardware is compatible.

Functional verification: Where a qualified Honeywell LCN test environment is available, verify network communication and node operation before placing the board into a production system.

For New Surplus, ask for clear photographs of the original manufacturer label and packaging. For refurbished stock, request the actual test procedure rather than accepting “tested OK” as the complete test record.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t order by description alone.

“LCN interface board” is not enough information. Honeywell has multiple LCN-related boards with similar descriptions. The full 51401497-100 part number should be matched against the existing hardware and system documentation.

⚠️ Trap #2 — Check the A/B architecture.

An LCN A-side board and an LCN B-side board may look similar while serving different positions in the system. Verify the original board designation before installation.

⚠️ Trap #3 — Don’t blame the board immediately.

An intermittent LCN problem can originate in the network cable, connector, grounding, adjacent node, or another component in the communication path. A board swap without isolation testing can make troubleshooting harder.

PRO TIP: Photograph the installed board before removal. Capture the part number, connector positions, cable routing, board designation, and chassis location. With legacy Honeywell equipment, those five records are often more useful than a generic wiring diagram.

Dynamic FAQ

What is Honeywell 51401497-100?

It is a Honeywell LCN interface board associated with the TDC 3000 control-system family, used for the LCN communication path rather than conventional analog or digital process I/O.

Is 51401497-100 a digital input card?

No. It should be treated as LCN communication/interface hardware, not a conventional DI or AI module.

What should I verify before replacing 51401497-100?

Verify the complete part number, installed board designation, LCN A/B assignment, chassis position, connector arrangement, and the exact TDC 3000 node configuration. This is more reliable than matching the board based only on physical appearance.

Is 51401497-100 the same as 51304542-100?

They should not be assumed to be interchangeable solely because both are associated with LCN A/interface terminology. Honeywell used different hardware generations and assemblies, so the installed system documentation should control the substitution decision.

Is 51401497-100 New Surplus?

That depends on the individual unit. A part number identifies the hardware, not its condition. For New Surplus inventory, verify original labeling, packaging where available, physical condition, and functional test records.

What warranty should I expect?

Warranty terms are determined by the supplier. Before purchasing, confirm the warranty period, DOA coverage, return conditions, and whether the unit was electrically tested or only visually inspected.
