Honeywell 51402497-200 Operator Station Console Assembly

Description

Product Introduction

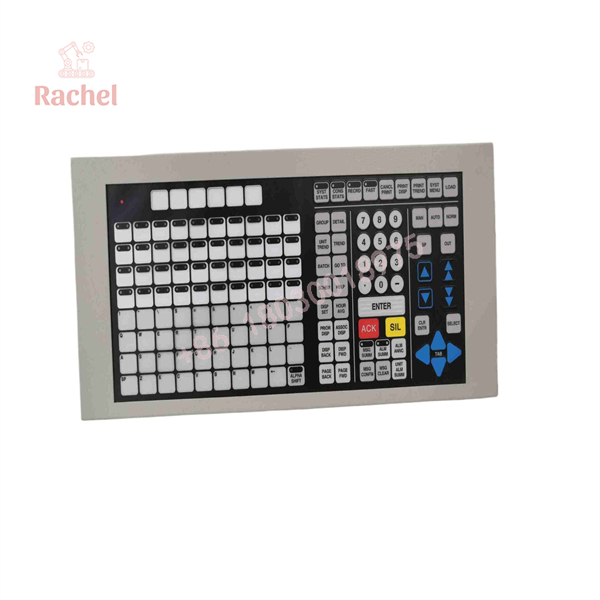

The Honeywell 51402497-200 serves as a primary Desk Operator Entry Panel (OEP) keyboard assembly for Honeywell TDC 3000 and TotalPlant Solution (TPS) Global User Station (GUS) consoles. Designed for industrial control room environments, this specialized membrane and mechanical key switch panel enables plant operators to trigger immediate process actions, manipulate control loops, and acknowledge critical process alarms with a single keystroke.

Unlike standard commercial computer keyboards, the 51402497-200 interfaces directly with operator station electronics to guarantee zero-latency response during emergency plant events. It features hardwired dedicated key groupings for silence, acknowledge, and loop selection that bypass standard operating system input buffers. When coffee spills or membrane wear takes an old panel down, operator efficiency drops instantly.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Imagine an operator sitting at a refinery master console during a midnight storm when a compressor trips. Alarms start screaming across four monitors simultaneously. The operator slaps the “Silence” and “Ack All” buttons on the old entry panel, but the worn-out membrane dome under the key gives out—nothing happens. The horn keeps blaring, confusion reigns in the control room, and valuable seconds pass while trying to clear alarms with a mouse pointer. Bringing a fresh, crisp-response Honeywell 51402497-200 OEP into the console restores direct physical feedback instantly, letting operators regain calm control over the plant.

Primary Industrial Applications:

• Refinery Control Rooms: Enables fast, physical single-button navigation across complex DCS graphic displays and alarm summary pages.
• Chemical Plant Master Consoles: Provides tactile loop selection (Auto/Manual/Cascade switches) for chemical batch operations.
• Power Generation Control Hubs: Allows high-speed alarm acknowledgement and trip resets during turbine startup procedures.

51402497-200

51402497-200

Transparency SOP: Quality Assurance & Testing

We test every operator entry panel rigorously to guarantee reliable operation in your control room:

1. Inbound Visual Inspection: We inspect keycap condition, overlay membranes, housing structural integrity, and interface cable pins for bending or corrosion.
2. Key-by-Key Actuation Audit: Every single key on the panel is pressed repeatedly on an automated test jig to verify crisp tactile return and zero double-triggering.
3. Live Console Diagnostic Test: The 51402497-200 panel is plugged into an active TDC 3000 / TPS test station to confirm full serial communication, LED backlight operation, and keycode translation.
4. Spill Seal Integrity Check: The perimeter gasket and overlay seal are checked under light pressure to ensure liquid protection remains intact.
5. Anti-Static Packaging: The assembly is cleaned, wrapped in static-shielding film, and packed in heavy-duty foam crates for safe transport.

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Force the Cable Connector: The multi-pin connector on the tail cable must be aligned carefully with the console receptacle. Pushing the connector in crooked will bend micro-pins, causing phantom keystrokes or total communication loss.
• ❗ Verify Revision Compatibility: Check whether your console electronics board expects a -100 or -200 series OEP. While physically identical, slight dip switch or interface cable variations exist depending on whether it mounts into an ergonomics desk or a standard tabletop frame.
• ⚠️ Cleaning Solvent Warning: Never spray harsh industrial solvents, acetone, or heavy degreasers directly onto the key membrane. Wipe the panel surface down with mild isopropyl alcohol or a damp soapy cloth to avoid clouding display windows or melting key overlays.
• ❗ Cable Strain Relief: Always secure the interface cable to the desk mounting frame using the built-in strain relief clamp. Pulling the keyboard across the desk without strain relief will snap internal ribbon cable connections at the PCB entry point.

Frequently Asked Questions

Q: Is the 51402497-200 OEP keyboard plug-and-play with standard USB PCs?

A: No. The 51402497-200 uses Honeywell’s proprietary serial protocol and connector interface built specifically for TDC 3000 and TPS operator station hardware. It will not function as a standard USB computer keyboard without specialized interface hardware.

Q: What is the primary difference between the 51402497-100 and 51402497-200 assemblies?

A: The -200 revision incorporates upgraded key switch membrane materials for higher cycle durability and improved EMI shielding around the internal encoder board compared to the earlier -100 revision.

Q: Can I replace individual worn keycaps or overlay membranes on this unit?

A: While keycaps can technically be popped off carefully, the underlying membrane matrix is a sealed assembly. If key contacts fail internally, swapping the complete 51402497-200 panel is the safest and fastest option to ensure control room reliability.

Q: Does this unit include the interface cable?

A: Yes, our surplus and reconditioned 51402497-200 assemblies come complete with the attached serial interface harness fully intact and tested.

Q: What warranty do you offer on this surplus Honeywell panel?

A: Every 51402497-200 panel includes our full 12-month operational replacement warranty. If any key or communication fault develops under normal control room use within one year, we replace the unit immediately from stock.
