Honeywell 900B16-0202 HC900 16 Channel Analog Output Module

Product Introduction & Engineering Value

Process plants depend on accurate analog output signals to position valves, regulate drives, and control continuous operations. The Honeywell 900B16-0202 is a ControlEdge HC900 analog output module designed to provide 16 channels of analog current output for industrial process automation systems.

This module is commonly used in HC900 controller installations where high-density analog outputs are required. For maintenance teams supporting existing process control systems, maintaining tested spare I/O modules reduces downtime caused by failed field signal interfaces.

Technical Specifications

Field Application & The “Trench” Experience

A chemical processing facility operating an HC900-based control system began receiving inconsistent valve positioning alarms on several process loops. Operators noticed that the control system was issuing output commands correctly, but several actuators were not responding within expected ranges.

Instrumentation technicians tested field wiring, valve positioners, and power supplies before isolating the issue to an aging analog output module. The maintenance team replaced the failed Honeywell 900B16-0202 module during a planned shutdown, restored channel configuration, and verified output current using calibrated loop equipment.

The plant returned to normal operation without replacing the controller rack or modifying the control strategy.

Typical application scenarios include:

1. Reactor Temperature Control Loops
   • Driving control valves and heating elements through continuous analog signals.
2. Boiler and Utility System Regulation
   • Providing output signals for dampers, flow valves, and variable-speed equipment.
3. Water Treatment Process Control
   • Managing chemical dosing pumps and proportional control devices.

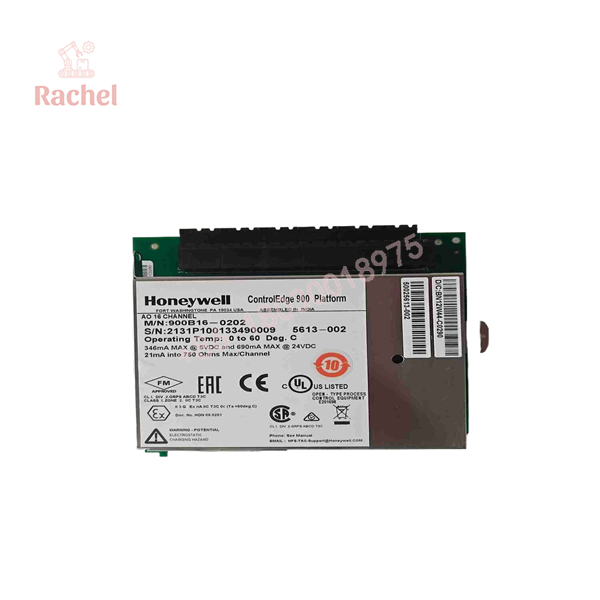

900B16-0202

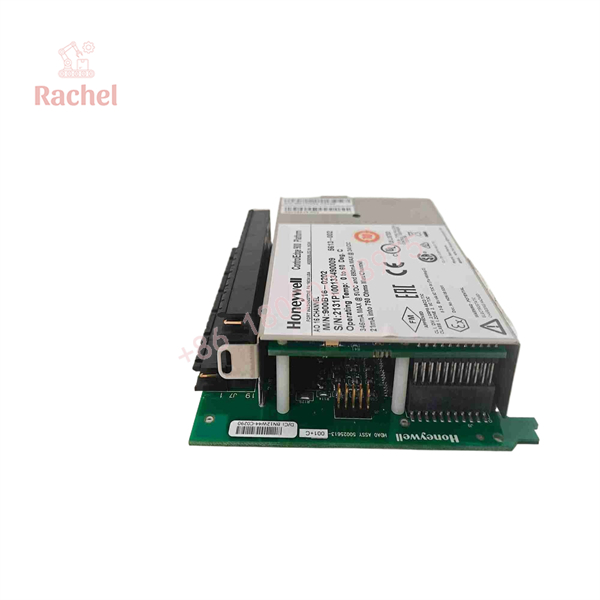

900B16-0202

Transparency SOP: QA & Testing

Every New Surplus or Refurbished Honeywell 900B16-0202 module should undergo documented inspection:

1. Visual Inspection

• Confirm Honeywell labeling and model number.
• Inspect terminal interfaces and housing condition.
• Check for corrosion, contamination, or physical damage.

2. Electrical Testing

• Verify power behavior.
• Check analog output channel response.
• Confirm no abnormal current output conditions.

3. Configuration Verification

• Confirm HC900 compatibility.
• Verify module addressing and rack configuration.

4. Functional Test

• Simulate output commands.
• Measure current output accuracy across multiple channels.
• Record test results before shipment.

The Veteran’s Tech Trap Guide

⚠️ Do Not Replace Without Checking Channel Scaling

A new analog output module may function correctly while producing incorrect field behavior if engineering units, scaling parameters, or loop configuration are different.

⚠️ Field Devices Can Mislead Troubleshooting

A failed output channel may look like a bad valve, actuator, or transmitter issue. Always verify the actual module output current with a calibrated meter.

PRO TIP: Record the original HC900 configuration file before replacing the module. It can save significant commissioning time.

⚠️ Check Rack Position Before Installation

HC900 systems depend on correct module placement and configuration recognition. Installing the module in the wrong rack position can create diagnostic alarms.

Dynamic FAQ

Q1. What is the Honeywell 900B16-0202 used for?

The 900B16-0202 is a Honeywell ControlEdge HC900 16-channel analog output module used for continuous process control applications.

Q2. Is the 900B16-0202 an input or output module?

It is an analog output module designed to send current signals from the HC900 controller to field devices.

Q3. What signal range does the module support?

The module supports 0 to 20 mA analog output signals, with channel loading dependent on system requirements.

Q4. Can this module be installed in any Honeywell controller?

No. The 900B16-0202 is designed for Honeywell ControlEdge HC900 systems. Verify rack compatibility and configuration before installation.

Q5. What should buyers verify for New Surplus inventory?

Recommended checks include:

• Original packaging condition
• Module labeling
• Hardware revision
• Storage environment
• Functional test records

Q6. What warranty is normally provided?

Warranty depends on supplier classification. Confirm whether the module is New Surplus, Refurbished, or Used and verify return conditions before purchase.
