Description
Product Introduction & Engineering Value
Integrating legacy PROFIBUS devices into a Honeywell Experion system often becomes a bottleneck when the gateway module fails. The CC-IP0101 preserves that interface: it exchanges process data between the C300 controller and PROFIBUS DP slaves while providing traffic monitoring and diagnostic capability.
The module supports both master and slave operation, data filtering, and optional redundancy. Its DP-2 designation identifies it as the PROFIBUS DP gateway variant used with Honeywell’s C300 control environment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | CC-IP0101 |
| Material number | 51410056-175 |
| Product type | PROFIBUS DP-2 gateway module |
| Compatible platforms | Experion PKS, Experion LX, Series 8 / C300 systems |
| Communication protocol | PROFIBUS DP |
| Device capacity | Up to 127 PROFIBUS DP devices |
| Baud rate | 9.6 kbps to 12 Mbps |
| Operating modes | PROFIBUS master and slave |
| Physical interface | RS-485 for PROFIBUS DP |
| Diagnostic functions | Network-traffic monitoring, fault diagnosis, data filtering |
| Redundancy | Optional, configuration dependent |
| Power supply | 24 VDC |
| Mounting | Series 8 IOTA-compatible system mounting |
| Dimensions | 190 mm × 69 mm × 23 mm (7.5 × 2.7 × 0.9 in.) |
| Weight | Approximately 0.2–0.45 kg, depending on source |
The 127-device capacity, 9.6 kbps–12 Mbps range, master/slave capability, and data-filtering/diagnostic functions are consistently documented across technical listings.
Field Application & The “Trench” Experience
A controls engineer was called to a refinery unit after several motor-management devices and remote I/O drops began reporting PROFIBUS diagnostic faults. The existing Honeywell C300 controller depended on a CC-IP0101 gateway to exchange cyclic and diagnostic data with the DP network. After isolating a failing gateway, the team replaced it with a verified CC-IP0101, restored the DP configuration, verified node addressing and termination, then confirmed cyclic data exchange and diagnostic alarms before returning the unit to service.
Typical applications include:
- Motor-management and feeder-device integration through PROFIBUS DP
- Remote I/O and field-device interfaces on Honeywell Experion PKS systems
- PROFIBUS-connected analyzers, weighfeeders, drives, and valve controllers
- Brownfield DCS expansions where existing DP devices must remain on the original network

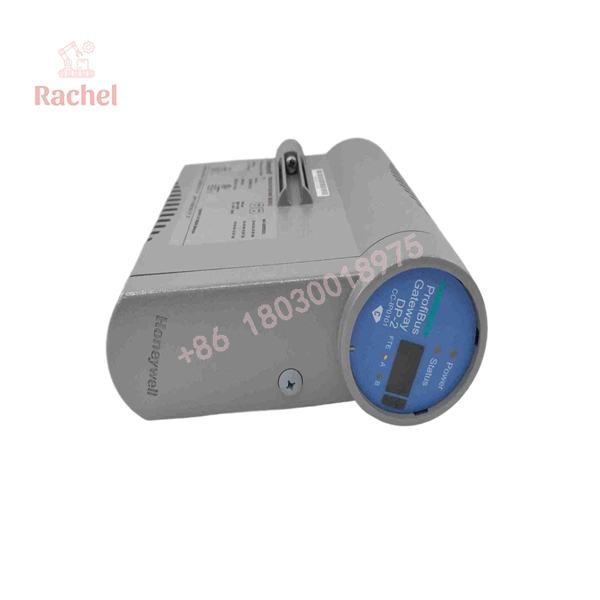

CC-IP0101

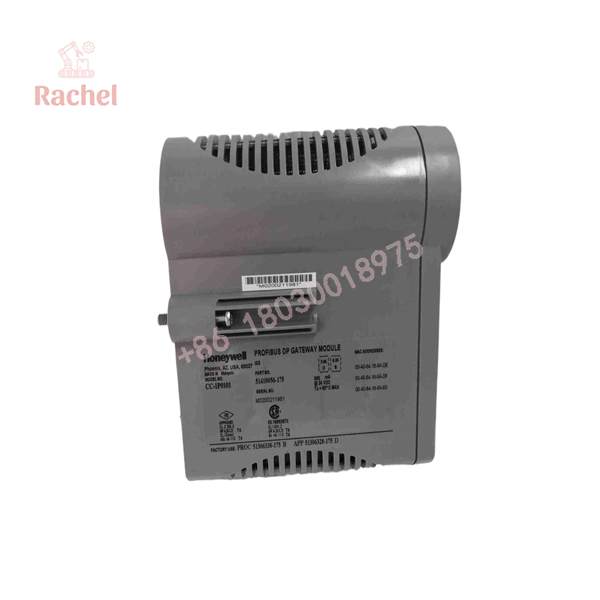

CC-IP0101
Transparency SOP: QA & Testing
- Identity verification: Confirm CC-IP0101 marking, material number 51410056-175, and DP-2 gateway configuration.
- Visual inspection: Inspect module guides, connectors, backplane contacts, status indicators, and PCB for damage or corrosion.
- Power and boot check: Apply the specified 24 VDC supply and verify startup, status indication, and absence of hardware faults.
- Communication test: Confirm RS-485/PROFIBUS physical-layer integrity and validate DP network communication.
- Configuration validation: Check node addressing, baud rate, master/slave role, data mapping, filtering settings, and redundancy configuration.
- Diagnostic verification: Exercise network monitoring, fault reporting, and data-exchange functions where the full Experion/C300 environment is available.
- Traceability: Record firmware/configuration, test results, condition grade, and any replaced components before shipment.
The Veteran’s Tech Trap Guide
⚠️ Confirm the exact Honeywell reference. CC-IP0101 is associated with material number 51410056-175 and the DP-2 gateway function. Do not confuse it with generic Honeywell IOTA or Ethernet modules; some online listings mislabel the part.
⚠️ Check DP addressing and termination first. A replacement gateway will not fix duplicate DP addresses, missing terminators, damaged RS-485 cabling, or excessive segment length. Verify the physical network before condemning the module.
PRO TIP: Export and archive the C300/Experion gateway configuration before removing the old module. Matching baud rate, DP slave parameterization, cyclic-data mapping, and diagnostic configuration is often the difference between a clean swap and a prolonged commissioning effort.
⚠️ Do not assume redundancy is automatic. Optional redundancy requires compatible system hardware and correct configuration; installing two modules does not by itself create a redundant DP gateway.
Dynamic FAQ
What is the Honeywell CC-IP0101 used for?
It is a PROFIBUS DP gateway that connects PROFIBUS DP field devices and networks to Honeywell Experion PKS, Experion LX, and C300-based control systems.
What is the material number for CC-IP0101?
The associated Honeywell material number is 51410056-175.
How many PROFIBUS DP devices can it support?
It supports up to 127 PROFIBUS DP devices.
What baud rates does it support?
It supports PROFIBUS DP baud rates from 9.6 kbps through 12 Mbps.
Can it operate as both master and slave?
Yes. The CC-IP0101 supports both PROFIBUS master and slave operating modes, subject to system configuration.
What warranty applies?
New Surplus and refurbished units include a stated replacement warranty; the exact term depends on condition grade and is documented on the quotation and shipping paperwork.
