Honeywell CC-PAIM01 Analog Input Module 16-Channel High Level

Description

Product Introduction

The Honeywell CC-PAIM01 is a 16-channel High Level Analog Input (HLAI) module engineered specifically for Honeywell Experion PKS Series C I/O assemblies. It acts as the frontline signal interface between field transmitters and the C300 controller, converting field 4-20mA or 1-5V signals into digital process variables.

Unlike lower-density or non-isolated process cards, the CC-PAIM01 incorporates dedicated onboard signal conditioning and differential filtering per channel. This design shields your control loop from common-mode ground noise that typically plagues long field runs. In field experience, replacing failing legacy or gray-market cards with a verified CC-PAIM01 board eliminates erratic process spikes and stabilizes critical control loops immediately.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 2:15 AM on a Sunday. A cracker unit at a Gulf Coast petrochemical facility throws a HART communication fault on channel 4 of a critical pressure transmitter loop, causing the safety interlock to lock out the feed pump. The plant is bleeding thousands of dollars every fifteen minutes. You trace the fault down to an aging input card with swollen capacitors and burnt trace lines on the backplane connector. Dropping in a direct, pre-tested replacement card gets the loop back online before sunrise without re-engineering the database.

• Oil & Gas Refining: Continuous monitoring of crude line pressure and temperature transmitters. Requires stable 16-bit signal conversion under high EMI environments.
• Chemical Processing: Interfacing loop-powered 4-20mA flowmeters in corrosive atmosphere units. The CC-PAIM01 provides tight signal filtering against power supply ripple.
• Power Generation: Boiler drum level monitoring where rapid transient response and HART diagnostic pass-through are required for early predictive maintenance.
• Pharmaceutical Manufacturing: Precision temperature measurement monitoring in fermenters, requiring low drift over long operating cycles.

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Honeywell Experion test rigs before they hit the packing bench.

1. Inbound Visual Inspection: We inspect board traces, edge connectors, solder joints, and conformal coating under magnification to verify 100% OEM authenticity and rule out counterfeit components.
2. IOTA Bench Benchmarking: The card is installed on a energized Series C IOTA backplane paired with a Honeywell C300 Controller running Experion PKS software.
3. Loop Calibrator Verification: We inject precise 4.00mA, 12.00mA, and 20.00mA signals into all 16 channels using a calibrated Fluke process calibrator to ensure A/D conversion accuracy within factory specification.
4. HART Handshake Test: A HART field communicator is attached to confirm transparent HART pass-through data is properly routed to the controller database.
5. ESD-Safe Packaging: Every verified module is wrapped in anti-static conductive shielding and packed in high-density closed-cell foam to prevent vibration damage during transit.

CC-PAIM01

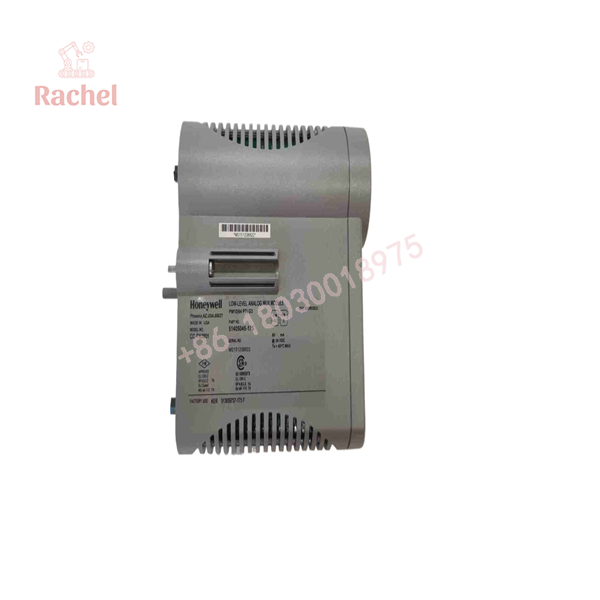

CC-PAIM01

The Veteran’s Tech Trap Guide

⚠️ Watch Out for Firmware & System Release Compatibility

Not every CC-PAIM01 revision drops cleanly into older Experion PKS releases (e.g., R300 vs R510). If your system shows “Hardware Mismatch” faults right after insertion, verify the module revision in the Experion System Management Display (HSMD) against your I/O firmware library.

❗ DIP Switches and Terminal Block Power Jumper Configuration

Before pulling the old card out, take a clear photo of the jumper positions on the underlying IOTA board. Misconfigured jumpers for 2-wire vs 4-wire transmitter power on the terminal assembly will blow out internal channel fuses or cause zero-scale readouts.

⚠️ IOTA Pin Connector Damage During Insertion

Do not force the card onto the backplane. The dual pin arrays on Series C IOTAs bend easily if misaligned. Align the side guides, press firmly at the center, and secure both latch screws completely. If it feels stuck, stop and check the pins.

Frequently Asked Questions

Q: Is the CC-PAIM01 module hot-swappable in a live Experion system?

A: Yes, Series C I/O modules support Hot Swap (Removal and Insertion Under Power). However, ensure the replacement card matches the physical address set on the IOTA and that loop interlocks are temporarily bypassed in software before pulling the old board.

Q: Can this module supply loop power directly to 2-wire transmitters?

A: Power distribution depends on the selected IOTA terminal assembly model paired with the CC-PAIM01. The card itself reads the signal, but standard 2-wire transmitter power is routed through the IOTA backplane fused power rails.

Q: What is the difference between CC-PAIM01 and CC-PAIH01?

A: The CC-PAIM01 is a standard High Level Analog Input module supporting 4-20mA / 1-5V with basic HART support, while the CC-PAIH01 is specifically optimized for high-density HART application requirements. Check your system drawing spec before interchanging them.

Q: Why buy New Surplus or Refurbished instead of buying direct from Honeywell?

A: Honeywell has phased out or placed extended lead times (often 16–26 weeks) on legacy Series C hardware. Surplus stock gives you factory-original equipment immediately, saving your plant from extended shutdown periods at a fraction of OEM list price.

Q: What warranty comes with this module?

A: We provide a full 12-month operational warranty. If the module fails a self-test or drops offline within one year of purchase, we replace it immediately or issue a full refund.
