Description
Product Introduction
The Honeywell CC-PAIX01 is a high-density, multiplexed 32-channel Analog Input module built for Honeywell Experion PKS Series C I/O racks. It handles continuous monitoring of 4-20mA process loops by cycling through input points, making it an efficient choice for large-scale continuous process applications where channel density dictates cabinet footprint.
Unlike direct parallel input cards, the multiplexed architecture of the CC-PAIX01 allows plants to maximize cabinet space without sacrificing 16-bit conversion resolution. In real-world commissioning, dropping in a verified PAIX01 unit restores communication across all associated field loops while maintaining strict loop isolation requirements against common-mode noise.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-PAIX01 |
| Honeywell Part Number | 51405040-175 |
| Input Channels | 32 Multiplexed Channels |
| Input Signal Range | 4-20 mA DC |
| A/D Conversion | 16-Bit Resolution |
| Update Rate | 250 ms per channel scan cycle |
| Operating Voltage | 24 V DC ± 10% (Internal I/O Bus Powered) |
| Power Dissipation | 3.5 Watts (Typical) |
| Isolation Rating | 1500 V DC channel-to-logic bus isolation |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment |
| Mounting Hardware | Direct clip-on mount to Series C Input/Output Termination Assembly (IOTA) |
Application Scenarios & The “Trench” Experience
It is midnight during a turnaround at an ethylene plant. Your distributed control system flags a sudden multiplexer scan timeout across an entire 32-channel rack of temperature and pressure transmitters. Field instruments are healthy, but the control room sees flatlined data on half the distillation column loops. You isolate the fault to a failing multiplexer control chip on the primary PAIX01 board. Swapping in a pre-tested surplus replacement restores all thirty-two loops to the C300 controller within minutes, averting a costly flaring event.
- Petrochemical Refining: High-density temperature and pressure monitoring across large fractionator columns where cabinet space is at a premium.
- Water & Wastewater Treatment: Centralized analog data collection from remote lift stations and chemical dosing skids.
- Power Generation: Balance-of-plant analog monitoring loops requiring high channel counts per cabinet slot.
- Pulp & Paper Processing: Chemical recovery boiler loop tracking where continuous multiplexed scanning handles steady-state analog variables efficiently.

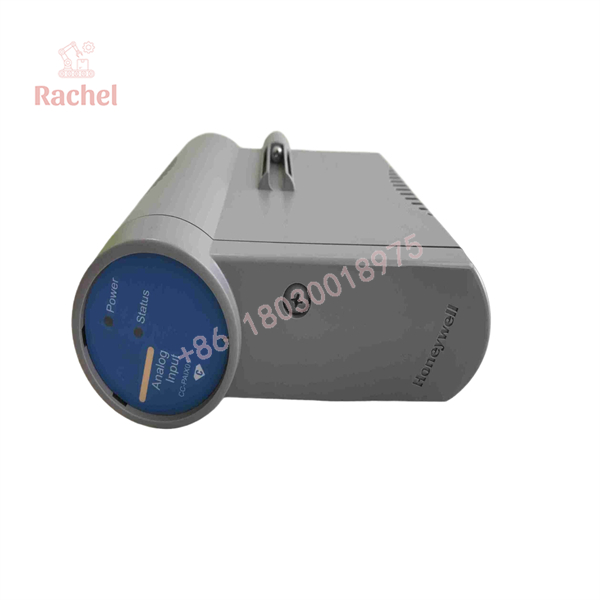

CC-PAIX01

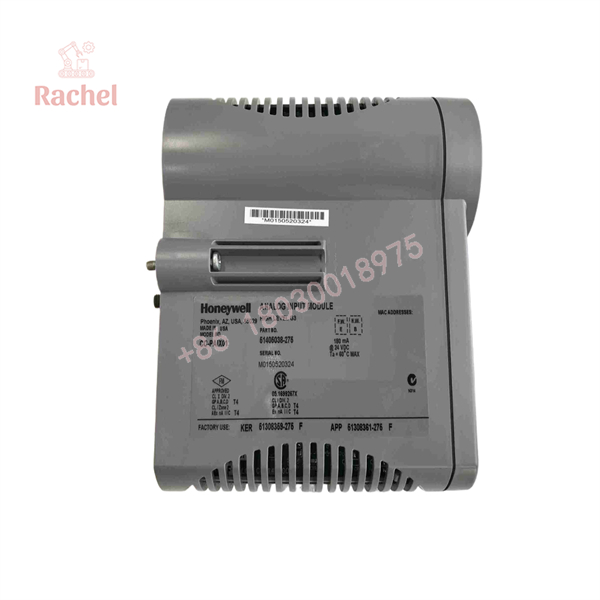

CC-PAIX01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell Experion test racks before they leave our bench.
- Inbound Physical Inspection: Every board undergoes high-magnification optical inspection for PCB trace integrity, connector pin straightness, and OEM security seals.
- Series C IOTA Rig Verification: Modules are mounted onto an energized Series C test IOTA paired with a live Honeywell C300 Controller to verify backplane handshakes.
- Multi-Channel Calibration Run: We use a precision multi-channel loop simulator to inject step-increment currents (4mA, 12mA, 20mA) across all 32 channels, verifying scan accuracy and zero drift.
- Scan Cycle Timing Test: Oscilloscope and system diagnostic logs verify that multiplexer switching intervals and update rates match factory timing baselines.
- Anti-Static Protection: Tested units are encased in conductive ESD shielding bags and packed in custom foam inserts to prevent transit shock.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Multiplexer Update Rate Limitations
Remember that the CC-PAIX01 is a multiplexed card, not a parallel simultaneous-sampling card. Do not use this module for fast-acting control loops like anti-surge or rapid flow control where a 250ms update lag will introduce destabilizing phase shift into your PID loops. Reserve it for slow-moving variables like temperature and level.
❗ Verify IOTA Compatibility and Jumper Settings
The CC-PAIX01 requires a dedicated multiplexer-compatible IOTA. Dropping this card onto a standard non-multiplexed terminal assembly will cause immediate hardware configuration errors in Experion. Double-check your engineering drawings before mounting.
⚠️ Pin Alignment on High-Density Backplanes
With 32 channels passing through dense backplane headers, bent pins are the number one cause of DOA installations. Align the module guides carefully and apply even pressure. Never force the locking latches.
Frequently Asked Questions
Q: Can I hot-swap the CC-PAIX01 module in a live running system?
A: Yes, Series C architecture supports Removal and Insertion Under Power (RIUP). However, because this is a 32-channel multiplexed card, ensure you place the affected control loops in manual or bypass mode in Experion PKS before pulling the card to prevent unintended controller bumps.
Q: Why is a multiplexed card (PAIX01) cheaper or different than a standard parallel input card (PAIM01)?
A: The PAIX01 shares analog-to-digital conversion circuitry across multiple channels using a multiplexer chip, allowing higher channel density per slot at a lower cost per point, though with a trade-off in update speed compared to dedicated parallel cards.
Q: Does this module support HART protocol communication?
A: No. If your installation requires HART pass-through to field asset management software, you must use a dedicated HART-enabled input card like the CC-PAIM01 or CC-PAIH01 series instead.
Q: Are these units brand new or refurbished?
A: We stock both Factory Sealed New Surplus and fully bench-tested Refurbished units. Every surplus board is traceable and backed by our rigorous testing protocol.
Q: What warranty is included with purchase?
A: Every CC-PAIX01 module is backed by our comprehensive 12-month operational warranty, protecting your plant against premature hardware failure.
