Description
Product Introduction
The Honeywell CC-PAOX01 is an 8-channel analog output module engineered for Honeywell Experion PKS Series C I/O installations. It provides precise digital-to-analog signal conversion, translating controller commands into reliable 4-20mA current loops to drive critical control valves, dampers, and field actuators.
Designed to integrate seamlessly onto Series C Input/Output Termination Assemblies (IOTAs), the CC-PAOX01 balances loop-level isolation with high-resolution output stability. In field applications, replacing a drifting or failed legacy output card with a verified CC-PAOX01 restores tight loop control and eliminates valve hunting without requiring any database reconfiguration in the C300 controller.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-PAOX01 |
| Honeywell Part Number | 51405041-175 |
| Output Channels | 8 Isolated Channels |
| Output Signal Range | 4-20 mA DC |
| D/A Conversion | 16-Bit Resolution |
| Load Impedance | 0 to 750 Ohms at 24 V DC loop supply |
| Operating Voltage | 24 V DC ± 10% (Internal Bus Powered) |
| Power Dissipation | 4.0 Watts (Typical) |
| Isolation Rating | 1500 V DC channel-to-logic bus isolation |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment |
| Mounting Format | Direct clip-on mount to Series C Output Termination Assembly (IOTA) |
Application Scenarios & The “Trench” Experience
It is 1:30 AM during a scheduled transition at a chemical processing plant, and a critical solvent feed valve starts oscillating violently because an analog output channel on the main rack has developed internal DAC jitter. The control room loses steady flow regulation, tripping high-differential pressure alarms across the reactor loop. You trace the fault directly to a failing output driver chip on the aging card. Slashing downtime to a minimum, you unseat the faulty board and slide in a pre-tested surplus CC-PAOX01 module, immediately locking the valve back onto its exact setpoint.
- Chemical Processing: Precise setpoint modulation for reactant feed valves in continuous exothermic reactor trains.
- Oil & Gas Refining: Fuel gas pressure regulation and flare header control loops requiring steady output sinking/sourcing.
- Power Generation: Boiler feedwater control valve positioning where high-resolution signal stability prevents thermal shock.
- Water & Wastewater Treatment: Chemical dosing pump stroke and speed control loops requiring dependable analog command paths.

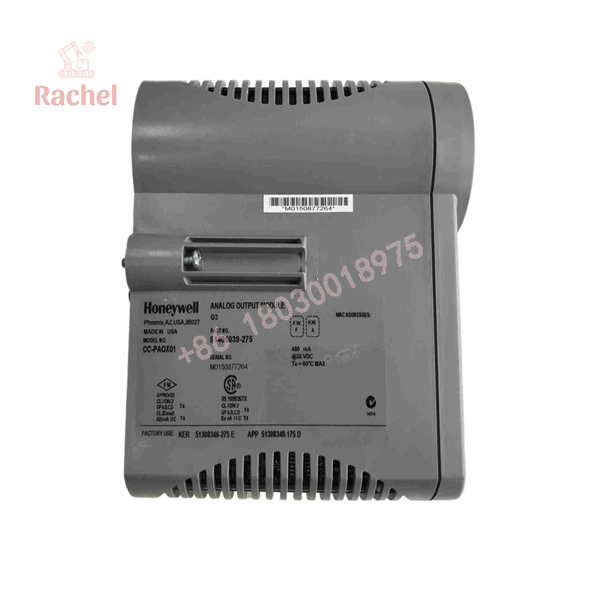

CC-PAOX01

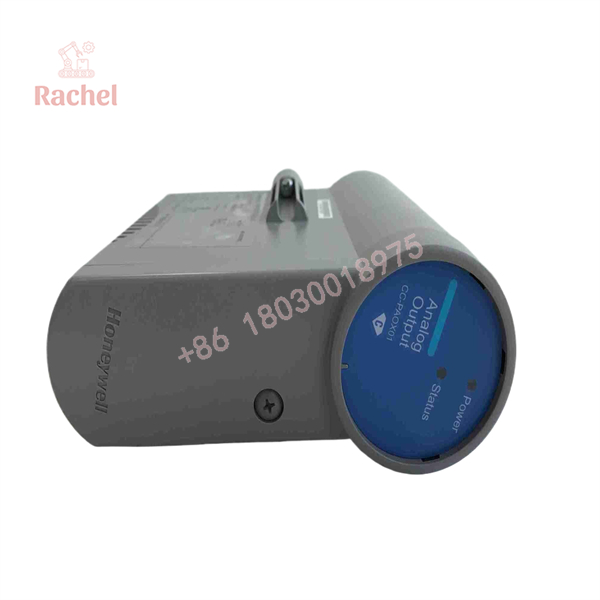

CC-PAOX01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell Experion test rigs before they leave our bench.
- Inbound Physical Inspection: Every board is examined under magnification for clean PCB traces, undamaged backplane connector pins, and intact OEM security seals.
- Series C IOTA Rig Verification: Modules are mounted onto an energized Series C test IOTA paired with a live Honeywell C300 Controller to check backplane communication handshakes.
- Precision Load Calibration: We connect a calibrated Fluke process meter to all 8 output channels, commanding step outputs (4mA, 12mA, 20mA) to verify current accuracy and zero-drift tolerance.
- Fault State Response Test: We simulate a controller disconnect to confirm that fallback and failsafe output states trigger exactly according to user configuration profiles.
- Anti-Static Packaging: Verified modules are sealed in conductive ESD shielding bags and encased in high-density foam to prevent shipping damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Failsafe State Surges During Replacement
When pulling a live CC-PAOX01 module, associated control valves will default to their configured failsafe state (hold-last-value or go-to-zero). Coordinate with operators and place affected loops in manual mode or take appropriate mechanical safety precautions before unseating the card.
❗ Verify Loop Power and IOTA Jumper Settings
Never mix up sourcing and sinking loop configurations on the Series C IOTA terminal blocks. Incorrectly jumpered power rails will immediately trip channel protection fuses or damage internal loop driver transistors.
⚠️ Backplane Pin Alignment
Series C connector pins are robust, but forcing an angled card into the IOTA will bend the guide pins. Take your time aligning the side tracks, push straight back until the latch clicks, and secure both retaining screws evenly.
Frequently Asked Questions
Q: Is the CC-PAOX01 module hot-swappable in a live system?
A: Yes, Series C architecture supports Removal and Insertion Under Power (RIUP). However, because this card drives physical valves and actuators, always place the target control loops in manual mode or take necessary interlock precautions before pulling the module to prevent sudden field movement.
Q: What is the difference between CC-PAOX01 and CC-PAOH01?
A: Both modules provide 8 channels of high-level analog output, but specific hardware revisions, internal component sourcing, or regional release variations dictate exact catalog matching. Always verify the exact part number suffix (e.g., 51405041-175) on your existing hardware label before ordering a replacement.
Q: What is the maximum loop resistance supported by the outputs?
A: The module drives up to 750 Ohms of total loop resistance when powered by a standard 24 V DC industrial supply. Check your field cable length and instrument burden specifications to ensure you stay within budget.
Q: Are these modules brand new or refurbished?
A: We carry both Factory Sealed New Surplus and fully bench-tested Refurbished units. Every board is rigorously tested on our live test rigs and fully traceable.
Q: What warranty comes with this purchase?
A: Every CC-PAOX01 module is backed by our comprehensive 12-month operational warranty, giving your plant complete peace of mind.
