Description
Product Introduction
The Honeywell CC-PDOB01 is a 16-channel solid-state digital output module engineered for Honeywell Experion PKS Series C I/O assemblies. It acts as the command interface for switching field actuators, solenoid valves, and pilot relays, translating internal controller logic into reliable 24 VDC power distribution.
Equipped with built-in channel diagnostic feedback and thermal overload protection, the CC-PDOB01 safeguards field loops against inductive kickback and short-circuit faults. In field operations, replacing a failing or unresponsive discrete output card with a verified CC-PDOB01 restores actuator actuation immediately without requiring C300 database reconfiguration.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-PDOB01 |
| Honeywell Part Number | 51405042-175 |
| Output Channels | 16 Discrete Channels (Sourcing) |
| Output Voltage Range | 18 to 30 VDC (Nominal 24 VDC) |
| Output Current Rating | 0.5 A per channel max (Up to 4.0 A per module) |
| Galvanic Isolation | 1500 V RMS channel-to-logic bus isolation |
| Protection Features | Overcurrent, short-circuit, and thermal shutdown per channel |
| Power Dissipation | 3.5 Watts (Typical) |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment |
| Mounting Format | Direct clip-on mount to Series C Output Termination Assembly (IOTA) |
Application Scenarios & The “Trench” Experience
It is 2:00 AM during an active batch run at a specialty chemical facility, and a critical solenoid-operated block valve refuses to open on command, halting the reactor feed line. The control room logs a channel fault alarm on the digital output rack. You trace the failure to a blown internal driver channel on an aging output card subjected to years of repetitive inductive switching. Pulling the faulty board and snapping in a pre-tested surplus CC-PDOB01 restores immediate 24VDC output switching to the solenoid manifold, bringing the process back online before shift change.
- Oil & Gas Upstream: Skid-mounted compressor ESD solenoid valve actuation and emergency shutdown logic routing.
- Chemical Processing: Interlock-driven block valve sequencing and pneumatic actuator pilot control.
- Power Generation: Turbine auxiliary lube oil solenoid control and burner management system (BMS) trip relays.
- Water Treatment: Chemical metering pump start/stop relays and automated backwash valve actuation.

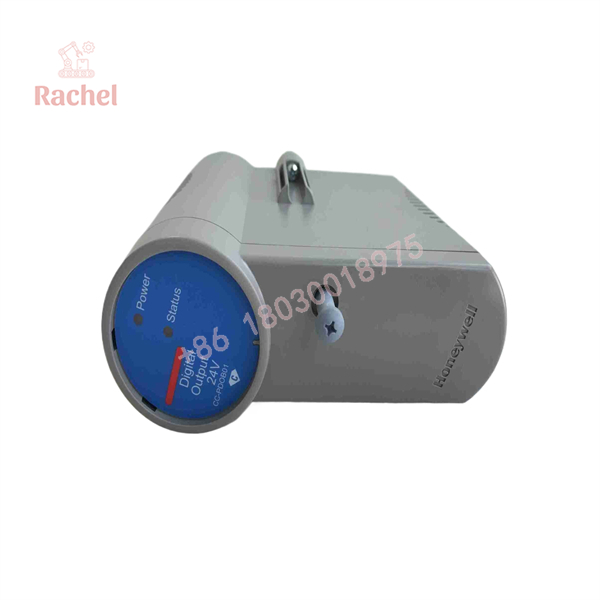

CC-PDOB01

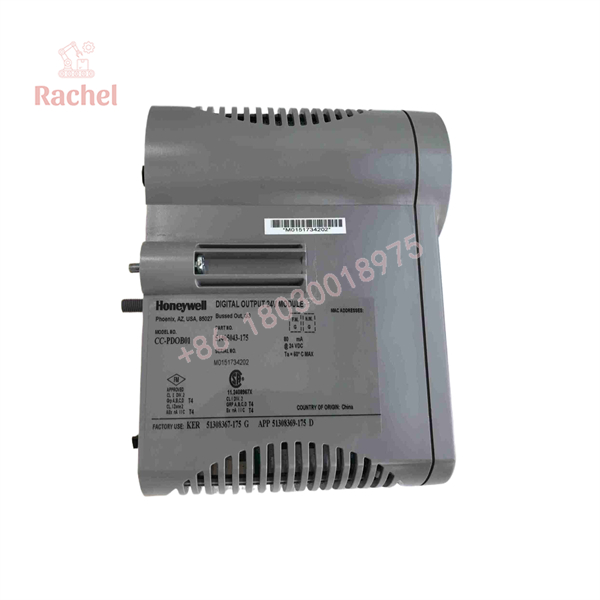

CC-PDOB01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell Experion test rigs before they leave our bench.
- Inbound Physical Inspection: Every board is examined under magnification for clean PCB traces, undamaged connector pins, and authentic OEM holograms.
- Series C IOTA Rig Verification: Modules are mounted onto an energized Series C test IOTA paired with a live Honeywell C300 Controller to check backplane handshakes.
- Resistive Load Testing: We connect an automated bank of test loads across all 16 channels, cycling 24 VDC outputs on and off to verify current sourcing stability and LED status response.
- Short-Circuit Protection Test: We verify that channel-level electronic overcurrent protection triggers cleanly without damaging the main board logic.
- Anti-Static Packaging: Verified units are sealed in conductive shielding bags and cushioned in high-density closed-cell foam to prevent transit damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Inductive Kickback and Flyback Diodes
When driving large inductive loads like heavy solenoid coils or large control relays without built-in suppression, the back-EMF spike can damage the module’s internal solid-state switches. Always verify that flyback diodes are installed across DC inductive field loads.
❗ IOTA Power Rail Jumper Settings
Double-check the external 24VDC power supply feeds wired to the underlying Series C IOTA terminal blocks. Supplying reverse polarity or incorrect voltage rails will trip internal board protection or disable channel output states.
⚠️ Backplane Pin Alignment
Series C cards slide smoothly when aligned correctly. Do not force an angled card into the IOTA header, or you will bend the delicate backplane connector pins and cause intermittent communication dropouts.
Frequently Asked Questions
Q: Is the CC-PDOB01 module hot-swappable in a live system?
A: Yes, Series C architecture supports Removal and Insertion Under Power (RIUP). However, always ensure safety interlocks and final control elements tied to these digital outputs are placed in a safe manual state or isolated before pulling the card to prevent unintended field device movement.
Q: Can this module directly drive 120 VAC actuators or heavy motor starters?
A: No. The CC-PDOB01 is a 24 VDC sourcing digital output card limited to 0.5A per channel. For 120 VAC loads or heavy motor contactors, use this module to drive interposing 24VDC relays rather than wiring line power directly.
Q: What is the difference between CC-PDOB01 and discrete relay output cards?
A: The CC-PDOB01 uses solid-state electronic switches for fast, high-cycle 24VDC output control, whereas relay output cards use physical electromechanical contacts capable of handling higher voltages or AC loads with lower switching speeds.
Q: Are these units brand new or refurbished?
A: We stock both Factory Sealed New Surplus and fully bench-tested Refurbished units. Every module is serialized and verified on a live control rack prior to shipment.
Q: What warranty comes with this purchase?
A: Every CC-PDOB01 module is backed by our full 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
