Description
Product Introduction
The Honeywell CC-PUIO31 is an advanced 32-channel Universal Input/Output (UIO-2) module built for Honeywell Experion PKS Series C architectures. Introduced in later software releases, it allows engineers to configure each channel individually via software as an analog input, analog output, digital input, or digital output, drastically reducing traditional cabinet spare allocation complexity.
Unlike legacy fixed-personality cards, the CC-PUIO31 eliminates rigid hardware marshalling by letting control loop definitions change directly in the C300 database. In field operations, replacing a failed module with a verified CC-PUIO31 restores multi-discipline signal processing across 32 points instantly without altering physical terminal wiring on the underlying IOTA.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-PUIO31 |
| Honeywell Part Number | 51454220-176 |
| Total Channels | 32 Software-Configurable Channels |
| Channel Types | Analog Input (AI), Analog Output (AO), Digital Input (DI), Digital Output (DO) |
| Analog Signal Range | 4-20 mA DC ( HART compatible) |
| Digital Voltage Levels | 24 V DC Sinking / Sourcing |
| Isolation Rating | 1500 V DC channel-to-logic bus isolation |
| Power Dissipation | 4.2 Watts (Typical operating draw) |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment |
| Mounting Format | Direct clip-on mount to Series C Universal I/O Termination Assembly (IOTA) |
Application Scenarios & The “Trench” Experience
It is 1:00 AM at a major oil terminal during a facility expansion commissioning window, and a mixed configuration rack suddenly drops communication across a multi-discipline cluster of instrumentation points, freezing both digital valve commands and analog level feedback. You trace the hardware fault to an unresponsive processor section on the universal I/O card. Sliding in a pre-configured, tested surplus CC-PUIO31 module restores all 32 software-assigned loops back to the C300 controller seamlessly, saving hours of cabinet rewiring and configuration downtime.
- Oil & Gas Upstream: Centralized wellhead automation skids requiring a dense mix of digital interlocks and analog pressure/flow loops in a single footprint.
- Chemical Processing: Multi-product batch reactors where loop configurations frequently shift between analog sensing and discrete valve control.
- Power Generation: Auxiliary balance-of-plant skids where high point density and flexible signal allocation minimize physical cabinet footprint.
- Water Treatment: Remote pump station automation handling mixed sensor arrays and discrete run/stop feedbacks.

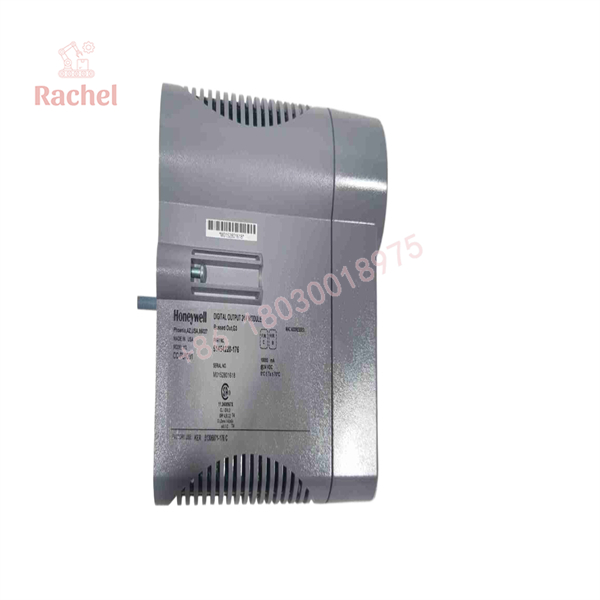

CC-PUIO31

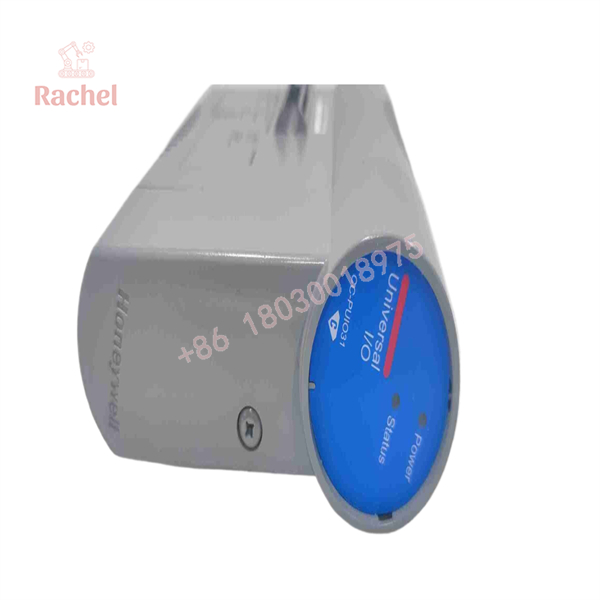

CC-PUIO31
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell Experion test rigs before they leave our bench.
- Inbound Visual Inspection: Every module is inspected under magnification for clean PCB traces, undamaged backplane pin headers, and authentic OEM labels.
- Series C IOTA Rig Verification: Modules are mounted onto an energized Series C Universal test IOTA paired with a live Honeywell C300 Controller to check backplane handshakes.
- Multi-Personality Channel Sweep: We execute an automated software profile test, configuring channels sequentially as AI, AO, DI, and DO to verify accurate multi-mode signal conversion.
- HART & Load Stress Testing: Calibrated process meters test analog current sinking/sourcing accuracy and HART data pass-through across all active channels.
- Anti-Static Packaging: Verified units are sealed in conductive ESD shielding bags and cushioned in high-density closed-cell foam to prevent transit shock.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Software Revision Mismatches
Because the CC-PUIO31 was introduced in later Experion software releases (such as R432 and above), dropping it into an older system release without updating your software firmware libraries will trigger fatal hardware configuration faults. Always verify your CEE software baseline before installation.
❗ Terminal Block and IOTA Channel Mapping
Universal I/O modules rely entirely on software channel assignment tied to physical terminal pins. If you replace a card and get inverted signal errors, verify that your Experion database configuration file matches the exact physical terminal block layout on the IOTA.
⚠️ Backplane Pin Alignment
With 32 high-density universal channels passing through the backplane connector, never force an angled module onto the IOTA header. Take your time aligning the side guide rails to prevent bending delicate pins.
Frequently Asked Questions
Q: Is the CC-PUIO31 module hot-swappable in a live system?
A: Yes, Series C architecture supports Removal and Insertion Under Power (RIUP). However, because this module handles a mixed combination of critical analog and digital control loops, always place affected loops in manual or safe bypass modes in Experion before pulling the card.
Q: Can I use the CC-PUIO31 as a direct drop-in replacement for the older CC-PUIO01?
A: While they share identical channel counts and physical footprints, system software version requirements and internal hardware revisions must be verified against your plant’s engineering drawings to ensure complete compatibility.
Q: What types of field devices can connect to this module?
A: The CC-PUIO31 accepts 2-wire/4-wire 4-20mA transmitters, HART field instruments, 24VDC dry/wet digital contacts, and discrete valve solenoids, depending on how each individual channel is configured in software.
Q: Are these units brand new or refurbished?
A: We stock both Factory Sealed New Surplus and fully bench-tested Refurbished units. Every module is serialized and verified on a live industrial test bench prior to shipment.
Q: What warranty comes with this purchase?
A: Every CC-PUIO31 module is backed by our comprehensive 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
