Description
Product Introduction and Engineering Value
The Honeywell CC-TAIN01 provides the termination interface for compatible Series C high-level analog input hardware. It is intended for non-HART analog input configurations and is commonly associated with the CC-PAIN01 module in Honeywell Experion PKS systems. Its 16-channel arrangement supports centralized termination of field instrumentation signals within a control cabinet.
For maintenance teams, the important distinction is between the termination assembly and the input electronics. CC-TAIN01 is the IOTA, not the signal-processing module itself. Confirm the field wiring, module pairing, and redundancy requirements before ordering a replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | CC-TAIN01 |
| Common Part Number | 51306513-175 |
| Product Type | Analog Input Termination Assembly (IOTA) |
| System Platform | Experion PKS Series C |
| Associated I/O Module | CC-PAIN01 |
| Channel Capacity | 16 channels |
| Input Category | High-level analog input |
| HART Support | Non-HART configuration |
| Redundant Variant | CC-TAIN11 |
| Installation | Series C I/O carrier |
| Primary Function | Field signal termination and interface |
Honeywell’s Series C specification confirms the model, I/O category, and assembly options. The 51306513-175 part number is listed by third-party suppliers; confirm the full part number and revision on the physical unit before purchase. Detailed electrical limits should be taken from the documentation for the associated I/O module.
Functional characteristics
- Field signal termination: Connects field instrumentation wiring to the compatible analog input system.
- Non-HART architecture: Intended for the documented non-HART analog input arrangement.
- 16-channel configuration: Supports centralized field wiring for multiple analog measurement points.
- Redundancy option: CC-TAIN11 is the corresponding redundant IOTA listed in the Series C hardware documentation.
- System integration: Requires correct pairing with the applicable I/O module and carrier arrangement.
Do not assume that all current and voltage ranges, channel isolation characteristics, or diagnostic functions belong to the IOTA itself. Those specifications depend on the associated electronics and approved wiring configuration.
Field Applications and Replacement Scenarios
Illustrative engineering scenario, not a verified customer installation.
Restoring analog measurements during a shutdown
A process plant schedules a maintenance shutdown after technicians identify intermittent readings across several analog input points. Inspection reveals a damaged termination connection in a Series C control cabinet. The maintenance team needs to replace the affected assembly without changing the existing control-system architecture.
The correct approach is to verify the CC-TAIN01 identification, confirm the associated CC-PAIN01 module, and record the original terminal assignments before removing field wiring. After installation, technicians should check loop wiring, grounding, channel readings, and configured alarms before releasing the equipment back to operations.
Typical application scenarios
- Pressure and flow monitoring: Termination of compatible analog transmitter signals in process measurement cabinets.
- Temperature monitoring: Integration of supported analog measurement circuits used in utility and process equipment.
- Chemical process control: Centralized field wiring for analog measurement points connected to an existing Experion PKS system.
These are representative application scenarios, not claims about specific installations or guaranteed compatibility with every instrument.

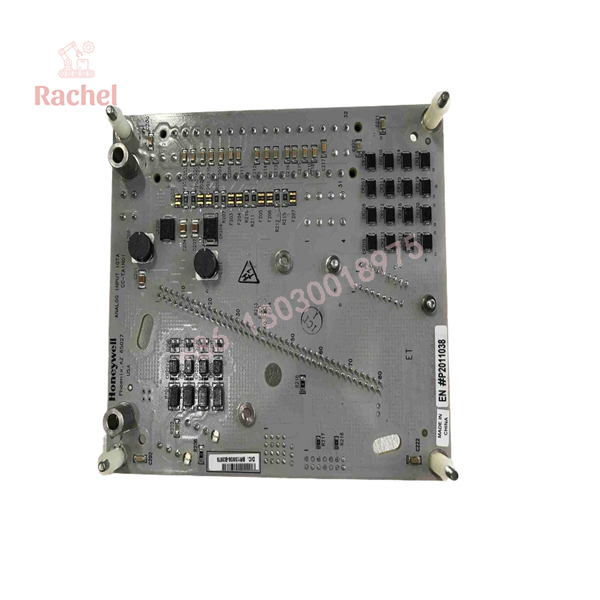

CC-TAIN01

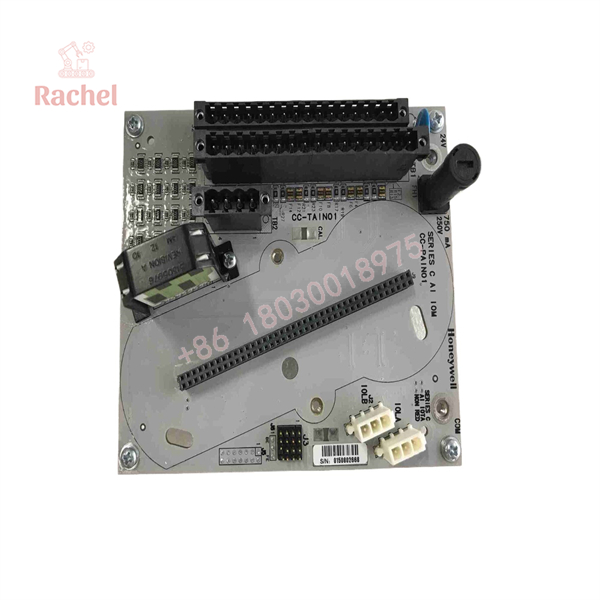

CC-TAIN01
Quality Assurance: New Surplus and Refurbished Stock
For a legacy control-system component, condition verification should be part of the procurement process.
| Inspection item | What to request or verify |
|---|---|
| Product identity | Clear label photograph showing CC-TAIN01 |
| Part number | Confirm 51306513-175 where applicable |
| Physical condition | Check terminals, connectors, mounting points, and visible circuitry |
| Condition declaration | Written confirmation of new surplus, used, or refurbished status |
| Traceability | Available sourcing records and serial-number information |
| Functional testing | Test report, if the supplier performs applicable testing |
| Warranty | Written duration, coverage, and return terms |
Procurement note: New surplus generally refers to unused inventory outside the manufacturer’s normal current distribution channel. It does not, by itself, prove factory-sealed condition or original manufacturer warranty coverage. Inspection and testing claims should be supported by records for the actual unit being supplied.
Replacement Pitfalls: Three Checks Before Ordering
Pitfall 1: Confusing CC-TAIN01 with CC-TAID01
These are different termination assemblies. Honeywell identifies CC-TAIN01 with the non-HART analog input architecture, while CC-TAID01 is specified as a 16-channel differential analog input IOTA. Confirm the exact input module and required wiring arrangement rather than selecting a part based on the shared model prefix.
Pitfall 2: Ordering the nonredundant variant for a redundant system
CC-TAIN01 is the nonredundant assembly; CC-TAIN11 is listed as the redundant variant. Check the cabinet design, carrier configuration, and system documentation before ordering. The redundant model should not be treated as a universal drop-in substitute.
Pitfall 3: Assuming the IOTA determines the complete input specification
The input range, accuracy, resolution, and diagnostic behavior depend on the associated electronics and configuration. Verify the CC-PAIN01 documentation and the existing loop design before approving the replacement.
Frequently Asked Questions
Q1. What is the Honeywell CC-TAIN01 used for?
It provides the field termination interface for compatible Series C analog input hardware in Honeywell Experion PKS systems. It is an IOTA rather than a standalone signal-processing module.
Q2. Which I/O module is associated with CC-TAIN01?
Honeywell’s Universal Marshalling Solution documentation lists CC-PAIN01 with CC-TAIN01 and CC-TAIN11 as supported termination assemblies. Confirm the exact hardware revision and installation arrangement before use.
Q3. Does CC-TAIN01 support HART?
CC-TAIN01 is identified with the non-HART analog input configuration. If HART communication is required, verify the approved I/O module and IOTA combination against Honeywell’s documentation.
Q4. What is the difference between CC-TAIN01 and CC-TAIN11?
CC-TAIN01 is the nonredundant analog input IOTA, while CC-TAIN11 is its redundant counterpart. Selection depends on the existing Series C system architecture.
Q5. How can I verify that a CC-TAIN01 sold as new surplus is authentic?
Request actual-unit photographs, label and part-number verification, available traceability documentation, and a written condition statement. Ask for the supplier’s warranty and return terms before purchasing.
Q6. What warranty applies to CC-TAIN01?
Warranty coverage depends on the seller and the condition of the unit. Obtain written confirmation of the warranty period, covered defects, and return procedure. Do not assume that new-surplus or refurbished hardware carries the original manufacturer’s warranty.
