Description
Product Introduction
The Honeywell CC-TAIN11 is an isolated Input/Output Termination Assembly (IOTA) engineered for Honeywell Experion PKS Series C systems. It functions as the secure physical backplane and wiring marshalling base for 16-channel isolated high-level analog input cards, safely routing field signals while maintaining strict channel-to-channel galvanic separation.
Unlike non-isolated bases, the CC-TAIN11 incorporates onboard signal isolation circuitry designed to protect control loops from high common-mode voltage spikes and ground loops. In plant operations, replacing a compromised or heat-damaged termination base with a verified CC-TAIN11 restores signal integrity and loop continuity without requiring full cabinet rewiring.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-TAIN11 |
| Honeywell Part Number | 51405030-275 |
| Assembly Type | Isolated Analog Input Termination Assembly (IOTA) |
| Compatible Modules | Series C 16-Channel Isolated Analog Input Modules |
| Terminal Type | Removable screw terminal blocks for field instrumentation |
| Channel Capacity | 16 Channels (Isolated configuration) |
| Isolation Rating | 1500 V DC channel-to-channel / channel-to-bus isolation |
| Mounting Hardware | Standard DIN rail mounting or direct panel mount |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment protection |
| Enclosure Rating | Open-type open-frame backplane assembly (IP20 terminal protection) |
Application Scenarios & The “Trench” Experience
It is 2:00 AM at a coastal chemical facility, and an entire bank of high-pressure reactor loops starts reporting erratic zero-scale drift. Troubleshooting reveals that chronic moisture ingress has corroded the isolation barriers and terminal screws on an aging analog IOTA, allowing ground noise to bleed across adjacent loops. Dropping in a pre-tested surplus CC-TAIN11 base restores clean signal isolation, bringing the reaction train back under stable closed-loop control before morning shift handover.
- Chemical Processing: Centralized termination points for isolated temperature and pressure transmitters across aggressive reaction units.
- Oil & Gas Refining: Marshalling field loops in high-EMI areas where channel-to-channel isolation is mandatory to prevent common-mode noise faults.
- Power Generation: Critical boiler instrumentation wiring management requiring robust surge and isolation boundaries.
- Water & Wastewater Treatment: Remote telemetry and pump station signal aggregation in high-humidity enclosures.

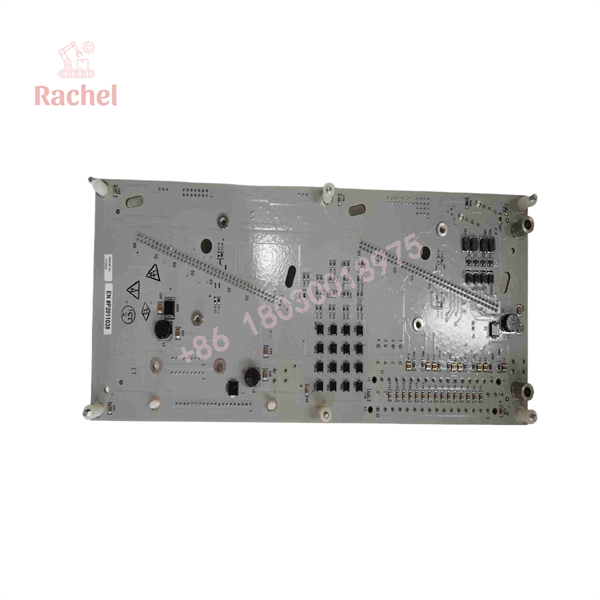

CC-TAIN11

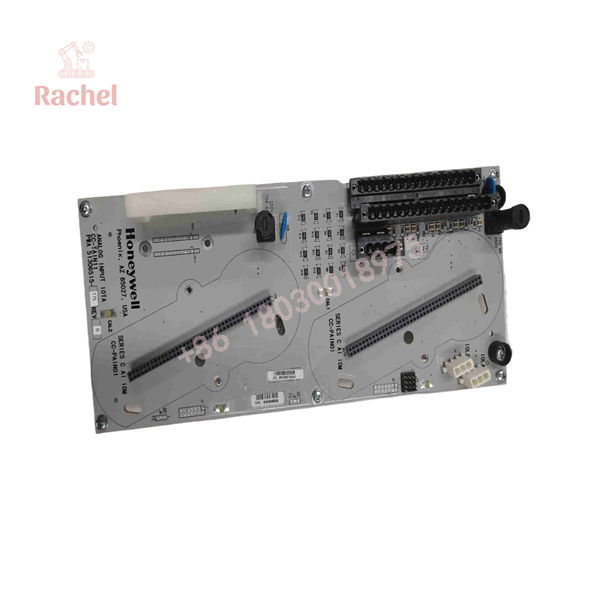

CC-TAIN11
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we inspect and test every termination assembly to ensure zero physical or electrical defects.
- Inbound Visual Inspection: We examine terminal blocks under magnification for stripped screw threads, corrosion, hairline PCB cracks, and intact OEM holograms.
- Backplane Pin Integrity Check: Connector pins and guide headers are measured and aligned to verify zero bending or oxidation prior to dispatch.
- Isolation & Trace Testing: Automated probe testing verifies trace resistance and 1500V isolation integrity across all 16 channel paths and power distribution buses.
- Terminal Clamp Torque Verification: Screw clamp assemblies are stress-tested to ensure reliable wire retention under high-vibration industrial conditions.
- Anti-Static & Protective Packaging: Inspected assemblies are wrapped in heavy-duty ESD shielding and high-density foam to prevent shipping damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Terminal Screw Over-Torquing
When landing field wires onto the CC-TAIN11, do not overtighten the terminal screws. Excessive torque will strip the brass inserts or crack the molded plastic housing, forcing a complete base replacement. Use a calibrated torque driver.
❗ Verify Isolation and Power Jumper Settings
Before snapping the electronic module onto the new IOTA, double-check your power distribution and loop supply jumper configurations on the terminal board. Misconfigured jumpers will compromise channel isolation or trip loop power fuses.
⚠️ Isolate Power Before Replacing an IOTA
Never attempt to replace or service a termination assembly while field loop power or module bus power is energized. Always execute proper lockout/tagout (LOTO) protocols to prevent short circuits on live 24VDC rails.
Frequently Asked Questions
Q: Is the CC-TAIN11 a standalone module or a base assembly?
A: The CC-TAIN11 is an Input/Output Termination Assembly (IOTA)—the physical base and terminal block unit that mounts to the cabinet panel. The active electronic I/O card plugs directly into it.
Q: Can I replace the CC-TAIN11 without disconnecting field wiring?
A: Series C IOTAs feature modular terminal blocks that can be unclipped from the base assembly, allowing you to swap the core termination board without completely relabeling and re-terminating every individual field wire.
Q: Are these termination assemblies brand new or surplus?
A: We stock both Factory Sealed New Surplus and fully inspected Refurbished units, ensuring you receive immaculate hardware ready for immediate installation.
Q: Why buy surplus instead of ordering direct from the OEM?
A: Extended OEM delivery lead times for legacy Series C hardware can leave your plant waiting months for spares. Our ready-to-ship surplus inventory gets your hardware on-site immediately at a fraction of the cost.
Q: What warranty comes with this purchase?
A: Every CC-TAIN11 assembly is backed by our comprehensive 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
