Honeywell CC-TAIX01 Experion PKS Series C Analog Input IOTA

Description

Product Introduction

The Honeywell CC-TAIX01 is a non-redundant Input Output Terminal Assembly (IOTA) designed for the Experion PKS Series C I/O family. Serving as the physical mounting base and field wiring termination block for Series C Analog Input modules (such as the CC-PAIH01 and CC-PAIH02), the CC-TAIX01 routes incoming 4–20mA process signals directly to the plugged-in processing card while conditioning power and ground references.

Built to simplify control cabinet assembly, the CC-TAIX01 features an angled terminal profile that reduces cable strain and optimizes passive airflow across the mounted module. It incorporates onboard fuse protection, power distribution bus connectors, and robust DIN-rail mounting latches—ensuring clean, low-noise signal ingestion for critical process instrumentation without requiring complex external terminal strips.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When an entire I/O rack loses transmitter feedback due to terminal board corrosion or a fractured trace, diagnosing the failure down to the baseboard saves massive amounts of troubleshooting time. In our field experience, a chemical batch plant experienced intermittent channel loss on an analog input bank after an undetected acid vapor leak degraded the field terminal screws on a legacy base assembly. Swapping in a fresh Honeywell CC-TAIX01 IOTA, transferring the field wiring pairs, and snapping the existing CC-PAIH02 module back on restored accurate 4-20mA readings in under twenty minutes.

• Petrochemical & Refining Cabinets – High-Density Field Termination – Connects 16 pressure, level, and temperature transmitters directly to Experion Series C racks.
• Power Generation Facilities – Boiler Feed Loop Wiring – Provides clean, fused 24V DC loop power to field transmitters across harsh mechanical environments.
• Pharmaceutical Batch Plants – Validated I/O Racks – Organizes multi-channel analog wiring with clear channel labelling for strict audit compliance.
• Water & Wastewater Treatment – Remote I/O Panels – Acts as a space-saving terminal base in compact outdoor control enclosures.

Transparency SOP: Quality Assurance & Testing

We don’t just ship circuit boards out the door; every Honeywell CC-TAIX01 IOTA undergoes strict physical and electrical verification before shipping:

1. Inbound & Visual Inspection: Inspecting the screw terminal threads, backplane multi-pin socket headers, DIN-rail mounting clips, and PCB traces for corrosion or stress fractures.
2. Terminal Continuity & Trace Test: Checking signal path continuity across all 16 channel terminal pairs to verify zero open traces or cold solder joints.
3. Power Bus & Fuse Verification: Testing internal 24V DC power distribution traces and verifying onboard fuse holders under simulated electrical load conditions.
4. Live Module Handshake Test: Mounting a live CC-PAIH02 module onto the CC-TAIX01 to confirm smooth mechanical alignment, firm connector seating, and proper backplane bus communications.
5. Anti-Static Cleaning & ESD Safe Packaging: Cleaning terminal contacts with isopropyl cleaner and vacuum-sealing the board in heavy ESD shielding bags with fresh desiccant.

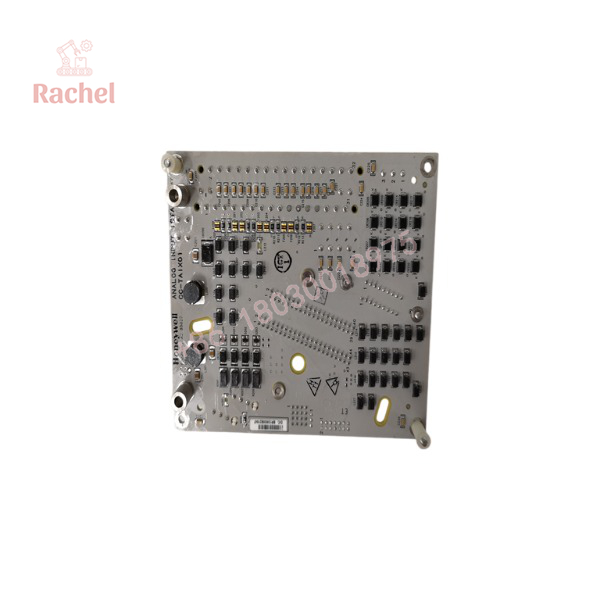

CC-TAIX01

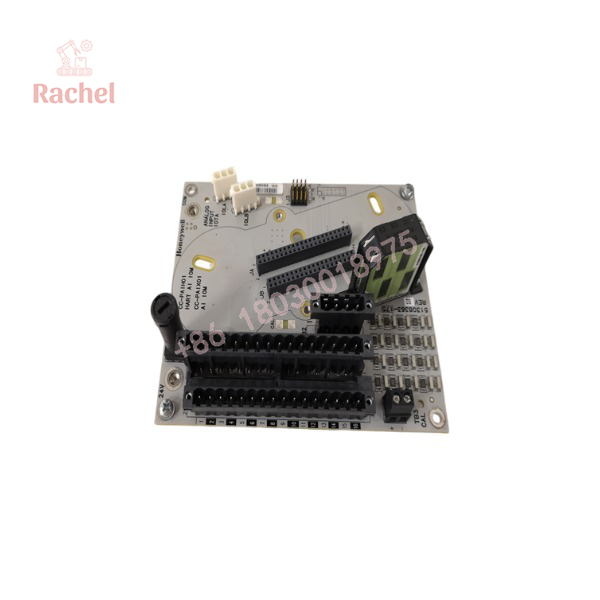

CC-TAIX01

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Do Not Confuse Redundant vs. Non-Redundant IOTAs! The CC-TAIX01 is a single-slot, non-redundant IOTA base. If your system strategy requires redundant dual-module operation, you MUST use the CC-TAIX11 redundant IOTA assembly instead. Plugging a single module into a non-redundant base will not provide failover protection.

❗ Check Field Wiring Torque: Overscrewing field wires into the compression terminals on the CC-TAIX01 can strip the plastic housing or crack internal PCB solder joints. Use a precision electrician’s screwdriver and torque to OEM specs (~0.5 Nm).

⚠️ Verify Grounding Strap Attachment: Ensure the ground bonding lug on the rear of the CC-TAIX01 is connected securely to the cabinet DIN-rail ground plane. A floating ground on an analog input IOTA will introduce 60Hz hum and signal jitter into your 4-20mA loops.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I remove or insert the analog input module from the CC-TAIX01 while powered?

A: Yes. Series C hardware supports RIUP (Removal and Insertion Under Power). You can unlatch and pull the CC-PAIH01 or CC-PAIH02 module off the CC-TAIX01 base without cutting 24V power to the terminal assembly or disturbing adjacent IOTAs.

Q: Does the CC-TAIX01 require external field power for 2-wire transmitters?

A: The CC-TAIX01 distributes 24V DC power from the main Series C power bus to field channels, allowing direct powering of standard 2-wire 4-20mA transmitters without needing external power distribution blocks.

Q: Does the CC-TAIX01 contain active processing chips or memory?

A: No. The CC-TAIX01 is a passive terminal and routing assembly. All analog-to-digital conversion, HART signal processing, and memory storage reside on the plug-in module (CC-PAIH01/02).

Q: Can I use the CC-TAIX01 with digital input or digital output modules?

A: No. IOTAs are keyed specifically for their corresponding module type. The CC-TAIX01 is pin-keyed exclusively for Series C Analog Input modules to prevent improper module insertion.

Q: What warranty is offered on this surplus CC-TAIX01 IOTA assembly?

A: Every CC-TAIX01 supplied carries a standard 12-month functional warranty. If any channel terminal or power trace fails under normal operating conditions within one year, we offer a direct replacement or a full refund.
