Honeywell CC-TAIX51 16-Channel Analog Input IOTA

Description

Product Introduction & Engineering Value

The Honeywell CC-TAIX51 provides field termination for 16-channel high-level analog input applications using the compatible CC-PAIH51 module. The supported input configuration is 4–20 mA, with HART communication handled through the associated electronics. The assembly is designed for nonredundant Series C installations.

For a replacement project, verify the input module, terminal wiring, transmitter type, and cabinet arrangement before ordering. CC-TAIX51 is a termination assembly, not a standalone signal-processing module. Replacing it will not resolve a fault originating in the controller, input electronics, or field transmitter.

Technical Specifications

Source: Honeywell, Experion Series-C I/O Specification, EP03-490-520. The resolution, scan rate, and accuracy figures describe the associated CC-PAIH51 electronics, not independent performance specifications of the CC-TAIX51 termination assembly.

Functional characteristics

• 16-channel field interface: Supports termination of multiple analog transmitter circuits within the compatible Series C configuration.
• 4–20 mA measurement: Intended for compatible current-loop instruments, including supported two-wire transmitters.
• HART integration: Enables HART-related functions through the associated CC-PAIH51 module and compatible system configuration.
• Nonredundant design: Intended for installations using the corresponding nonredundant IOTA arrangement.
• Redundant system option: CC-TAIX61 is the documented redundant counterpart.

Field Applications & Engineering Case Study

Illustrative engineering scenario, not a verified customer installation.

Replacing an analog input termination assembly during a planned shutdown

A plant maintenance team is investigating intermittent transmitter readings in an Experion PKS cabinet. The input module remains online during initial diagnostics, but inspection identifies damage around a field termination point. The team determines that the termination assembly requires replacement.

The correct procedure is to record the existing channel assignments, verify the CC-PAIH51 module, and confirm that the replacement matches the cabinet’s nonredundant configuration. After installation, technicians check loop current, transmitter status, and HART communication before validating the affected process readings.

The critical lesson: Do not replace an IOTA solely because a channel is reporting a fault. Confirm that the problem lies in the termination hardware rather than the field loop or input electronics.

Typical application scenarios

1. Pressure transmitter monitoring: Termination of compatible 4–20 mA pressure measurement loops in process control cabinets.
2. Flow measurement systems: Integration of compatible flow transmitters where HART diagnostics are used through the associated input module.
3. Chemical process instrumentation: Acquisition of current-loop signals from compatible process transmitters in existing Experion PKS installations.

These are representative applications of the supported I/O configuration, not verified customer deployments.

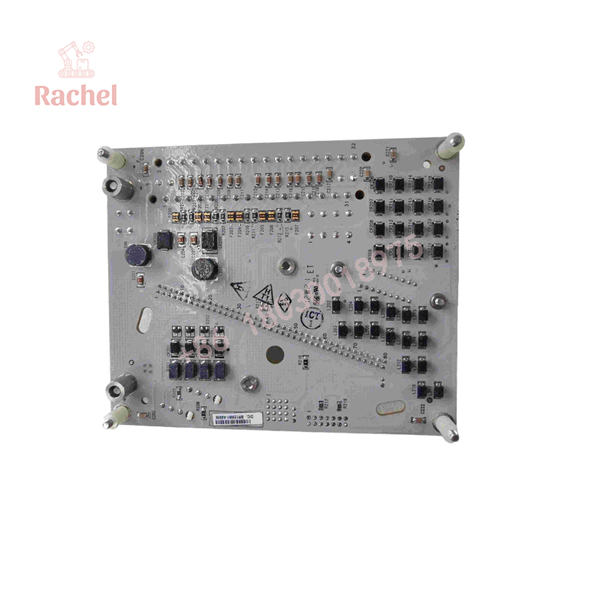

CC-TAIX51

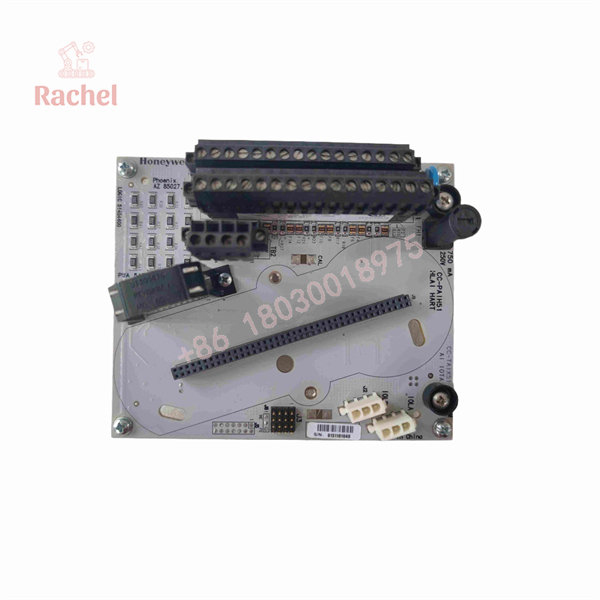

CC-TAIX51

Quality Assurance: New Surplus and Refurbished Stock

For replacement hardware, condition, traceability, and compatibility should be evaluated separately. A new-surplus designation does not establish that a unit has been functionally tested.

Recommended supplier acceptance checklist:

• Model verification: Confirm the CC-TAIX51 designation and inspect the actual product label.
• Physical inspection: Check terminal blocks, connectors, mounting points, and visible circuitry for damage or corrosion.
• Traceability: Request available sourcing records and photographs of the actual unit.
• Condition statement: Obtain written confirmation of whether the assembly is new surplus, used, or refurbished.
• Compatibility review: Verify the CC-PAIH51 pairing and nonredundant installation requirements.
• Testing records: Request applicable inspection or functional test reports if testing is offered.
• Warranty terms: Confirm the coverage period, return conditions, and process for reporting defects.

These are recommended procurement checks, not a claim that any particular unit has passed testing or been authenticated.

Replacement Pitfalls: Three Checks Before Ordering

Pitfall 1: Confusing CC-TAIX51 with CC-TAIX61

CC-TAIX51 is the nonredundant 6-inch assembly, while CC-TAIX61 is the 12-inch redundant counterpart. Verify the existing cabinet arrangement and approved redundancy design before selecting the replacement.

Pitfall 2: Assuming the IOTA itself provides HART processing

HART capability depends on the compatible CC-PAIH51 module and system configuration. If HART diagnostics are unavailable after replacement, check the field instrument, loop wiring, input module, and system configuration before concluding that the IOTA is defective.

Pitfall 3: Overlooking the field wiring arrangement

Honeywell documentation describes channel-specific wiring considerations for the associated analog input hardware. Record the original terminal assignments and follow the applicable installation guide. Do not assume that every transmitter type can be connected using the same wiring arrangement.

Procurement note: Confirm the full part number and revision on the installed assembly. If a supplier offers a substitute or an alternative assembly number, request written confirmation of compatibility with the intended CC-PAIH51 configuration.

Frequently Asked Questions

Q1. What is the Honeywell CC-TAIX51 used for?

It provides the field termination interface for the CC-PAIH51 high-level analog input module in compatible Experion PKS Series C installations.

Q2. How many input channels does CC-TAIX51 support?

The associated CC-PAIH51 configuration supports 16 analog input channels. The documented input range is 4–20 mA.

Q3. Does CC-TAIX51 support HART communication?

Yes, when used with the compatible CC-PAIH51 module and a correctly configured HART-capable system. HART processing is associated with the I/O electronics, rather than the termination assembly alone.

Q4. Can CC-TAIX61 replace CC-TAIX51?

Not automatically. CC-TAIX61 is the redundant counterpart and has a different nominal assembly size. Verify the system’s redundancy design, carrier arrangement, and approved hardware configuration before substituting it.

Q5. How can I verify a new-surplus CC-TAIX51?

Request photographs of the actual unit, readable identification labels, available traceability records, and a written condition declaration. If the supplier claims functional testing, request the test scope and results. New surplus generally means unused inventory outside the manufacturer’s normal current distribution channel; it does not independently prove factory-sealed condition or manufacturer warranty coverage.

Q6. What warranty is available for CC-TAIX51?

Warranty coverage depends on the supplier and the condition of the unit. Obtain the warranty period, covered defects, and return procedure in writing before purchasing. Do not assume that surplus or refurbished hardware carries the original manufacturer’s warranty.
