Description
Product Introduction
The Honeywell CC-TCF901 is a specialized Input/Output Termination Assembly (IOTA) engineered for Honeywell Experion PKS Series C systems. It serves as the physical marshalling base and terminal block for 16-channel thermocouple input cards, incorporating onboard Cold Junction Compensation (CJC) sensors to ensure accurate temperature measurement across high-temperature industrial processes.
Designed for harsh plant environments, the CC-TCF901 handles low-level millivolt signals while shielding against ambient thermal gradients and electromagnetic noise. In field operations, replacing a damaged or corrosion-compromised CJC termination base with a verified CC-TCF901 restores precise temperature tracking and loop reliability without requiring cabinet rewiring.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-TCF901 |
| Honeywell Part Number | 51405034-175 |
| Assembly Type | Thermocouple Input Termination Assembly (IOTA) |
| Compatible Modules | Series C 16-Channel Thermocouple Input Modules (e.g., CC-PAIX01 / TC variants) |
| Channel Capacity | 16 Channels |
| Sensor Support | Type J, K, T, E, R, S, B, N Thermocouples |
| Cold Junction Compensation | Integrated dual CJC thermistors per terminal block group |
| Terminal Type | Removable screw terminal blocks for thermocouple extension wire |
| Mounting Hardware | Standard DIN rail mounting or direct panel mount |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment protection |
Application Scenarios & The “Trench” Experience
It is 3:30 AM during a heavy continuous run at a petrochemical refinery, and a critical reactor skin thermocouple loop starts drifting wildly, triggering high-temperature alarms. Troubleshooting reveals that acid vapor ingress has corroded the terminal connection points and compromised the integrated cold junction compensation on an aging thermocouple IOTA. Snapping in a pre-tested surplus CC-TCF901 base restores accurate CJC reference tracking and clean millivolt signal transmission, bringing the reactor temperature control loops back into strict alignment before sunrise.
- Oil & Gas Refining: Furnace tube skin temperature monitoring and high-temperature reactor bed profiling.
- Chemical Processing: Exothermic batch reactor temperature tracking where precise millivolt conversion is critical to product quality.
- Power Generation: Boiler flue gas and steam temperature measurement requiring dependable cold junction compensation.
- Metals & Heat Treating: Continuous annealing and forging furnace thermal monitoring arrays.

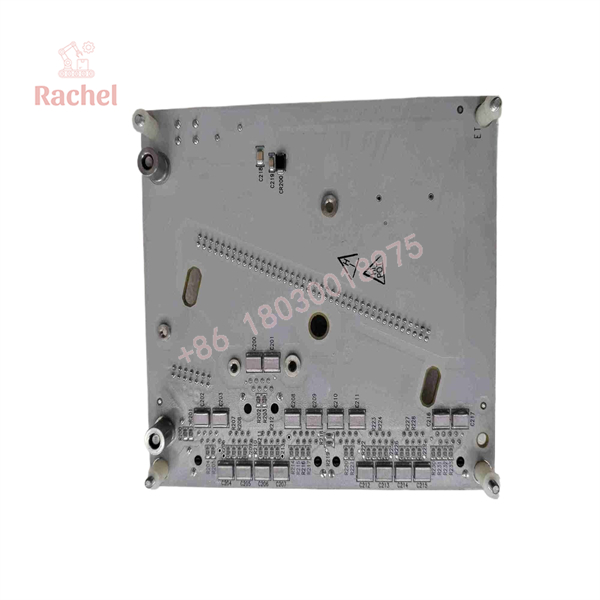

CC-TCF901

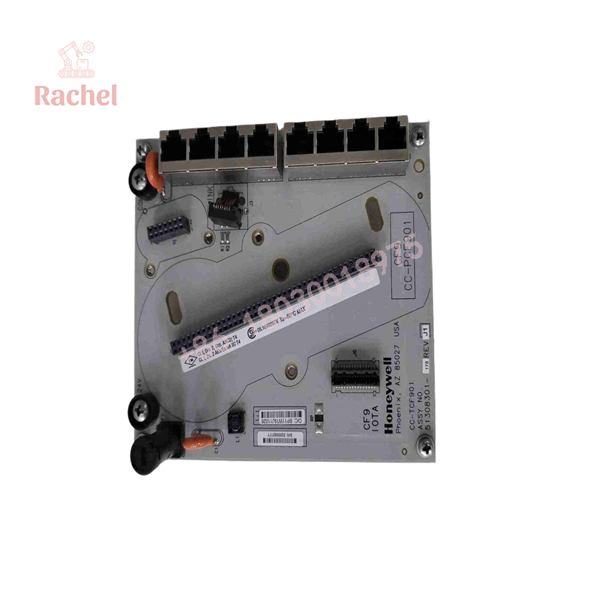

CC-TCF901
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we inspect and test every termination assembly to ensure zero physical or electrical defects.
- Inbound Visual Inspection: We examine terminal blocks under magnification for stripped screw threads, corrosion, hairline PCB cracks, and intact OEM holograms.
- CJC Thermistor Verification: Integrated cold junction compensation sensors are bench-tested against reference standards to ensure accurate ambient temperature compensation.
- Backplane Pin Integrity Check: Connector pins and guide headers are measured and aligned to verify zero bending or oxidation prior to dispatch.
- Trace & Isolation Testing: Automated probe testing verifies trace resistance and signal path continuity across all 16 thermocouple input channels.
- Anti-Static & Protective Packaging: Inspected assemblies are wrapped in heavy-duty ESD shielding and high-density foam to prevent shipping damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Thermocouple Extension Wire Mismatches
When landing field wiring onto the CC-TCF901, ensure you use the exact matching thermocouple extension wire type (e.g., Type K wire for Type K loops). Splicing with standard copper wire will introduce massive thermocouple junction errors and ruin process accuracy.
❗ Avoid Terminal Screw Over-Torquing
Do not overtighten field wire screws on the terminal blocks. Excessive torque will crack the molded plastic housing or strip brass inserts, compromising the thermal block integrity. Use a calibrated torque driver.
⚠️ Isolate Power Before Replacing an IOTA
Never attempt to unseat or replace a termination assembly while live system bus power is energized. Always execute strict lockout/tagout (LOTO) protocols to protect against short circuits.
Frequently Asked Questions
Q: Is the CC-TCF901 a standalone module or a base assembly?
A: The CC-TCF901 is an Input/Output Termination Assembly (IOTA)—the physical base and terminal block unit that mounts to the cabinet panel. The active thermocouple electronic card plugs directly into it.
Q: Does this IOTA include cold junction compensation (CJC)?
A: Yes. The CC-TCF901 features integrated CJC sensing circuitry designed to measure terminal block ambient temperature and provide necessary software compensation offsets for thermocouple inputs.
Q: Are these termination assemblies brand new or surplus?
A: We stock both Factory Sealed New Surplus and fully inspected Refurbished units, ensuring you receive immaculate hardware ready for immediate installation.
Q: Why buy surplus instead of ordering direct from the OEM?
A: Long factory lead times for legacy Series C hardware can leave your maintenance team waiting months. Our ready-to-ship surplus inventory gets critical parts on-site immediately.
Q: What warranty comes with this purchase?
A: Every CC-TCF901 assembly is backed by our comprehensive 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
