Description
Introduction and Engineering Value
In a distributed control system, digital input signals tell the controller whether equipment is running, a limit switch has changed state, or a permissive condition is satisfied. The Honeywell CC-TDIL61 provides the terminal interface for a redundant Series C digital input arrangement built around the compatible CC-PDIL51 module.
For engineers and spare-parts buyers, the critical distinction is the redundancy configuration. The CC-TDIL61 is not simply a longer version of every Series C digital input terminal assembly; it must match the module family and cabinet arrangement already installed.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC-TDIL61 |
| Manufacturer | Honeywell |
| Platform | Experion PKS Series C |
| Assembly classification | Digital input IOTA |
| Supported module | CC-PDIL51 |
| Input type | Low-voltage digital input |
| Nominal input signal | 24 VDC |
| Associated module capacity | 32 digital input channels |
| Configuration | Redundant IOTA |
| Nominal size | 12 inches |
| Nonredundant counterpart | CC-TDIL51 |
| Open-wire detection | Confirm the specific I/O module’s capabilities; do not infer this from the IOTA alone |
| Electrical and environmental limits | Refer to the applicable Honeywell module and installation documentation |
The 12-inch redundant configuration and CC-PDIL51 compatibility are documented in Honeywell’s Series C specification. The table deliberately distinguishes IOTA attributes from module-level performance specifications.
How CC-TDIL61 fits into the system
The IOTA provides the physical interface for the compatible I/O module and its field connections. The digital input module performs the electronic processing of incoming signals. In a redundant installation, the system design must also account for the intended redundancy arrangement, associated wiring, and controller configuration.
Before replacing an assembly, verify the exact module model, the installed terminal assembly, and the hardware revision against the plant’s approved documentation.

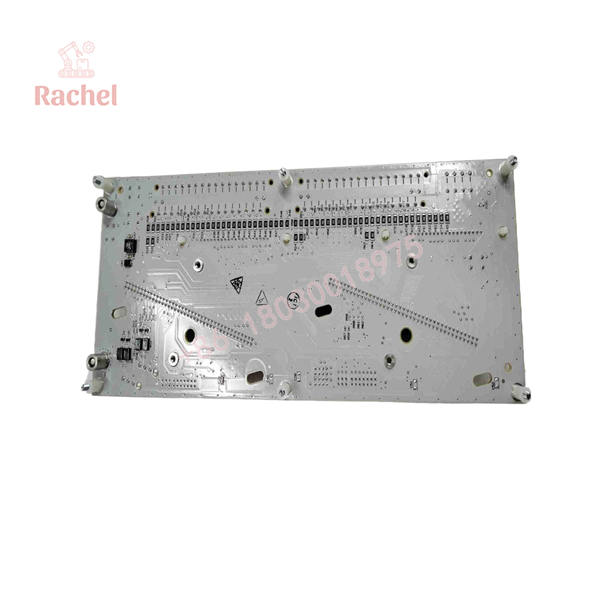

CC-TDIL61

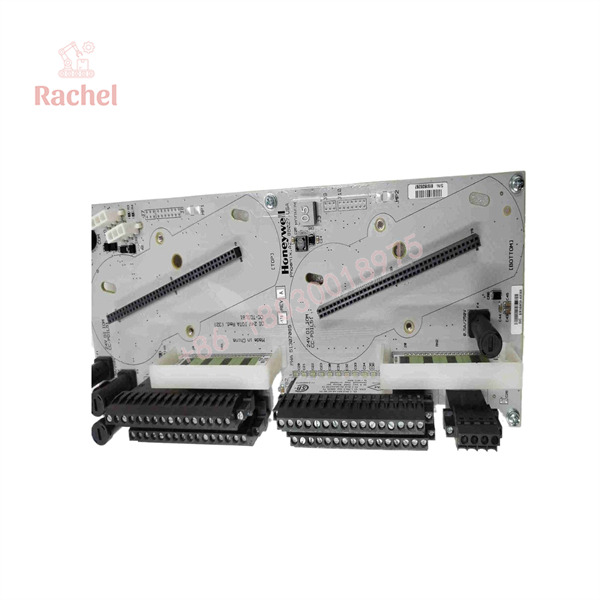

CC-TDIL61
Field Applications
The CC-TDIL61 is relevant to Series C control installations that use the CC-PDIL51 for 24 VDC discrete input signals and require the corresponding redundant IOTA configuration.
- Motor and pump status: Interfaces with discrete status contacts used by control logic and operator displays.
- Valve position feedback: Supports wiring for open/closed limit switches monitored through the compatible input module.
- Equipment permissives: Provides the terminal interface for discrete conditions used to authorize equipment operation.
- Redundant control-system installations: Supports the designated redundant IOTA arrangement for the compatible module family.
- Maintenance and replacement: Serves as a model-specific spare when the existing assembly has been positively identified as CC-TDIL61.
Illustrative maintenance scenario
During a scheduled shutdown, a plant team replaces a faulty digital input interface in a redundant control cabinet. Before removal, the engineer verifies the installed module is CC-PDIL51, confirms the terminal assembly is CC-TDIL61, and records the existing cable assignments.
After installation, the team follows the approved procedure to check power, input-channel states, diagnostics, and the intended redundant configuration. The team then confirms that representative field contacts produce the expected state changes in the control system.
This scenario is illustrative; it is not a claim that a particular CC-TDIL61 unit has been tested or used in an actual installation.
QA and Testing SOP
Use a documented acceptance procedure before installing or commissioning a replacement.
- Verify the part identity. Check the complete CC-TDIL61 model designation on the physical label and compare it with the plant’s approved parts list.
- Confirm compatibility. Verify that the installed module is CC-PDIL51 and that the application requires the redundant IOTA arrangement.
- Inspect the hardware. Check the housing, terminal points, connectors, mounting features, and labels for damage, corrosion, contamination, or signs of repair.
- Verify the wiring arrangement. Record and check terminal assignments, field-power connections, and grounding requirements against the applicable manual.
- Check the redundancy design. Confirm that the replacement is suitable for the existing cabinet and system configuration. Do not assume that a single IOTA can be substituted without reviewing the full arrangement.
- Perform approved functional checks. Verify input-channel behavior, system diagnostics, and the intended redundant operation according to site procedures.
- Document acceptance. Record the unit’s condition, inspection results, test scope, and any outstanding issues.
Purchasing and authenticity checks: Ask the supplier to identify the item as new, new surplus, refurbished, or used. Request clear label photographs, sourcing information where available, and unit-specific test records. Availability claims alone do not establish authenticity or functional condition.
Veteran’s Tech Trap Guide
Trap 1: Ordering CC-TDIL11 instead of CC-TDIL61
CC-TDIL11 belongs to the CC-PDIL01 family, while CC-TDIL61 is listed for CC-PDIL51. Both are associated with 24 VDC digital input applications, but that does not make their module compatibility interchangeable.
Trap 2: Confusing redundant and nonredundant hardware
CC-TDIL61 is the 12-inch redundant option; CC-TDIL51 is the 9-inch nonredundant counterpart. Confirm the cabinet layout and redundancy requirements before approving a substitute.
Trap 3: Assuming the IOTA provides every input diagnostic
Features such as open-wire detection depend on the compatible I/O module and its configuration, not merely the terminal assembly. Check the CC-PDIL51 specification and the installed system revision before relying on a diagnostic function.
Frequently Asked Questions
What is the Honeywell CC-TDIL61 used for?
It is a redundant digital input terminal assembly in the Experion PKS Series C family. Honeywell lists it for the CC-PDIL51 low-voltage 24 VDC digital input module.
Is CC-TDIL61 compatible with CC-PDIL51?
Yes. Honeywell’s Series C I/O specification lists CC-TDIL61 as a redundant IOTA option for CC-PDIL51. Confirm the installed hardware revision and the system’s redundancy arrangement before replacement.
What is the difference between CC-TDIL51 and CC-TDIL61?
CC-TDIL51 is the nonredundant, nominal 9-inch assembly; CC-TDIL61 is the redundant, nominal 12-inch assembly. The correct choice depends on the existing system configuration.
Is CC-TDIL61 compatible with CC-PDIS51 for Sequence of Events applications?
Do not assume compatibility based on the similar model numbers. Honeywell’s Universal Marshalling documentation lists the DC-TDIL51 and DC-TDIL61 variants for CC-PDIS51 rather than listing CC-TDIL61 for that module. Verify the exact hardware family and approved configuration with the relevant Honeywell documentation.
Does CC-TDIL61 have 32 input channels?
The compatible CC-PDIL51 module is a 32-channel digital input module. CC-TDIL61 is the terminal assembly, not the module containing the input-processing electronics.
What warranty is available when buying a replacement?
Warranty coverage depends on the supplier and the condition of the unit. Confirm the warranty period, return window, exclusions, and whether the warranty covers functional failure after installation. For refurbished or used units, request documentation of the actual tests performed.
