Product Introduction
The Honeywell CC-TUIO01 is a dedicated Input/Output Termination Assembly (IOTA) engineered for Honeywell Experion PKS Series C systems. It serves as the physical backbone and flexible marshalling base for 32-channel Universal I/O (UIO) electronic cards, allowing any connected field loop to be software-configured as an analog input, analog output, digital input, or digital output without altering physical wiring.
Built for high-density industrial control cabinets, the CC-TUIO01 eliminates traditional rigid marshalling constraints by unifying power distribution and signal routing across a single footprint. In field operations, replacing a heat-damaged or corroded termination base with a verified CC-TUIO01 restores secure circuit continuity and multi-discipline signal paths without requiring cabinet rewiring or hardware redesign.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-TUIO01 |
| Assembly Type | Universal Input/Output Termination Assembly (IOTA) |
| Compatible Modules | Series C 32-Channel Universal I/O Modules (e.g., CC-PUIO01 / CC-PUIO31) |
| Channel Capacity | 32 Configurable Channels (AI, AO, DI, DO support) |
| Terminal Type | Removable screw terminal blocks for universal field wiring |
| Power Distribution | Integrated fused loop power rails per channel group |
| Mounting Hardware | Standard DIN rail mounting or direct panel mount |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment protection |
| Enclosure Rating | Open-type open-frame backplane assembly (IP20 terminal protection) |
Application Scenarios & The “Trench” Experience
It is 2:00 AM during a plant expansion checkout, and a mixed universal I/O rack drops communication across multiple loop types simultaneously because environmental moisture ingress has corroded the terminal connection points and backplane pins on an aging universal IOTA. Swapping out the compromised base with a pre-tested surplus CC-TUIO01 restores secure pin engagement and robust loop power continuity, bringing complex control loops back online instantly without field wiring re-termination.
- Oil & Gas Upstream: Centralized wellhead automation skids requiring flexible, mixed-signal marshalling in a compact footprint.
- Chemical Processing: Multi-product batch reaction units where loop configurations shift dynamically between analog sensing and valve control.
- Power Generation: Auxiliary balance-of-plant skids where high point density and universal signal allocation reduce cabinet wiring complexity.
- Water & Wastewater Treatment: Remote telemetry station signal aggregation handling combined sensor and discrete actuator arrays.

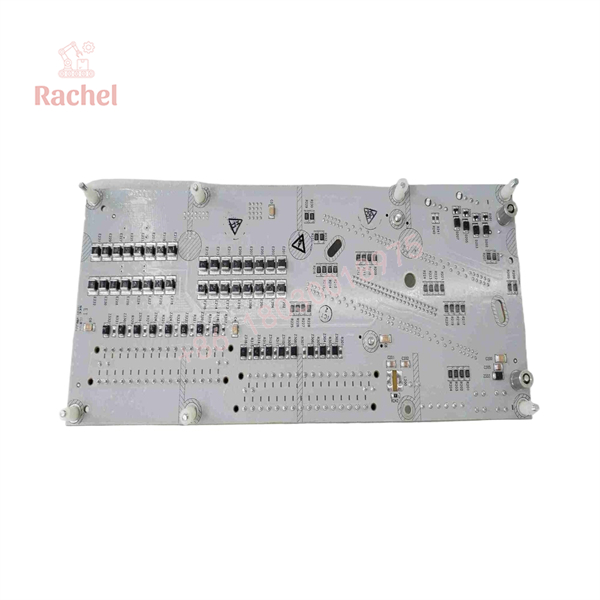

CC-TUI001

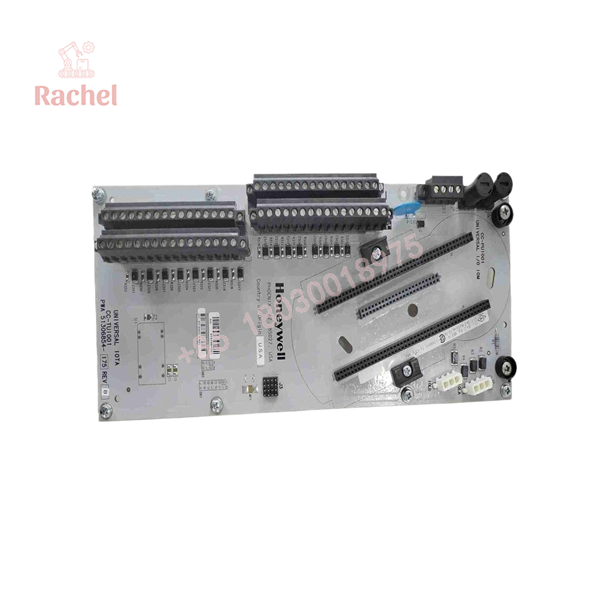

CC-TUI001
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we inspect and test every termination assembly to ensure zero physical or electrical defects.
- Inbound Visual Inspection: We examine terminal blocks under magnification for stripped screw threads, corrosion, hairline PCB cracks, and intact OEM holograms.
- Backplane Pin Integrity Check: Connector pins and guide headers are measured and aligned to verify zero bending or oxidation prior to dispatch.
- Bus & Trace Continuity Testing: Automated probe testing verifies trace resistance, power distribution fusing, and signal path continuity across all 32 channel slots.
- Terminal Clamp Torque Verification: Screw clamp assemblies are stress-tested to ensure reliable wire retention under high-vibration industrial conditions.
- Anti-Static & Protective Packaging: Inspected assemblies are wrapped in heavy-duty ESD shielding and high-density foam to prevent shipping damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Terminal Screw Over-Torquing
When landing field wires onto the CC-TUIO01, do not overtighten the terminal screws. Excessive torque will strip the brass inserts or crack the molded plastic housing, forcing an unplanned base replacement during commissioning. Use a calibrated torque driver.
❗ Verify Universal Channel Software Mapping
Because this base supports universal software-configured channels, ensure your database configuration matches the physical terminal assignments before commissioning loops. Misallocated software personalities will send analog commands to discrete devices.
⚠️ Isolate Power Before Replacing an IOTA
Never attempt to replace or service a termination assembly while live system bus power or field loop power is energized. Always execute strict lockout/tagout (LOTO) protocols to protect against short circuits.
Frequently Asked Questions
Q: Is the CC-TUIO01 a standalone module or a base assembly?
A: The CC-TUIO01 is an Input/Output Termination Assembly (IOTA)—the physical base and terminal block unit that mounts to the cabinet panel. The active universal I/O electronic card plugs directly into it.
Q: Can I replace the CC-TUIO01 without disconnecting field wiring?
A: Series C IOTAs feature modular terminal blocks that can be unclipped from the base assembly, allowing you to swap the core termination board without completely relabeling and re-terminating every individual field wire.
Q: Are these termination assemblies brand new or surplus?
A: We stock both Factory Sealed New Surplus and fully inspected Refurbished units, ensuring you receive immaculate hardware ready for immediate installation.
Q: Why buy surplus instead of ordering direct from the OEM?
A: Extended OEM delivery lead times for legacy Series C hardware can leave your plant waiting months for spares. Our ready-to-ship surplus inventory gets your hardware on-site immediately at a fraction of the cost.
Q: What warranty comes with this purchase?
A: Every CC-TUIO01 assembly is backed by our comprehensive 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
